Vacon 100 flow Installation Manual

2 Disconnect the cables from the fan power supply.
3 Remove the 12 screws from the fan cover plate.
Use the handle to lift off the main fan unit.
1
2
2
3
3

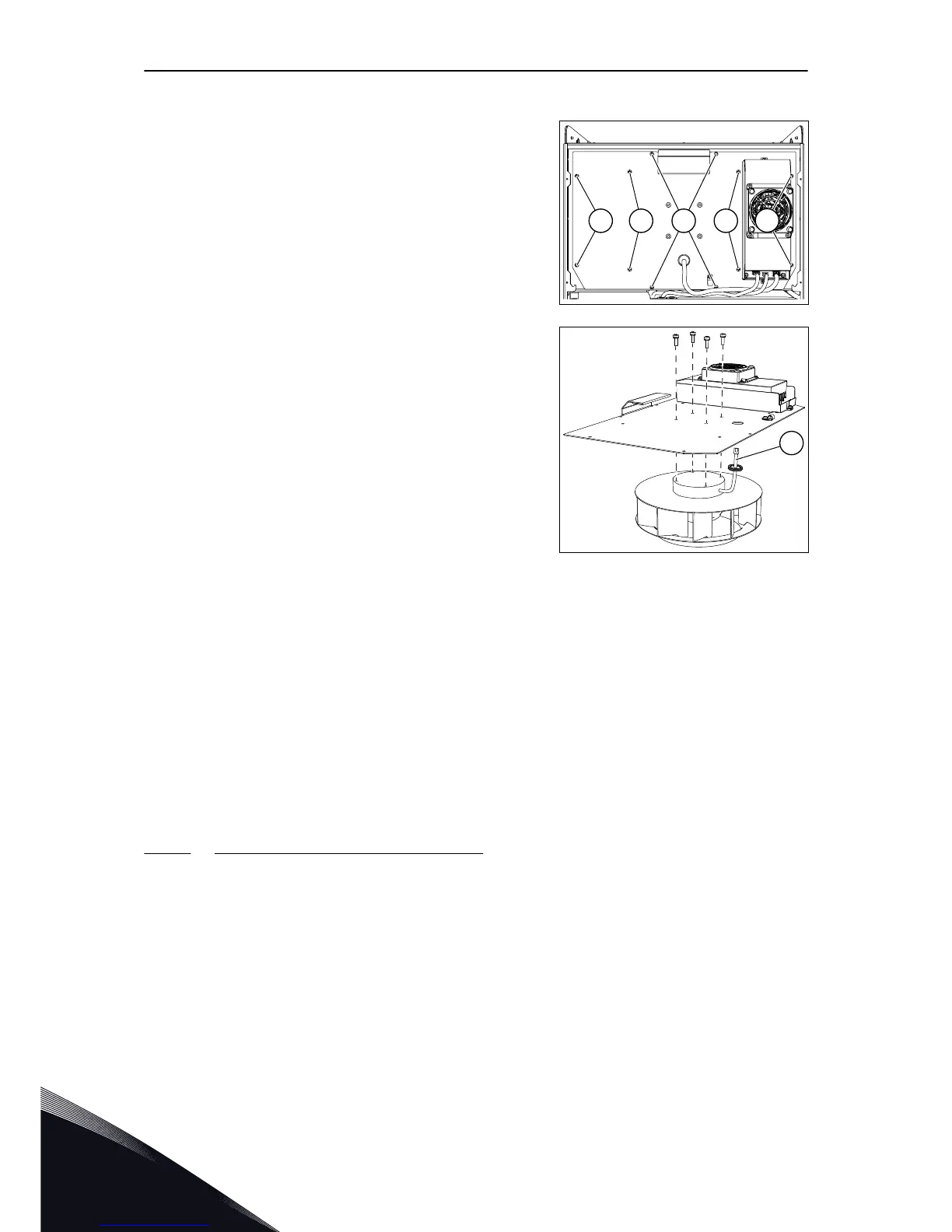

4 To release the fan from the cover plate, remove the
4 screws.
A
A. The fan cable
5 Release the grommet on the fan cable from the
cover plate and pull out the cable.
6 Replace the main fan.
a)
When you re-attach the main fan unit, make
sure that the sealing tape under the fan plate is
in good condition.
b)
Attach the screws in the tightening order that
is marked in the figure of the main fan unit (1 >
2 > 3).
7 Re-assemble the drive and connect the cables.
8.6.2.3 Replacing the fans in MR10 and MR12
Here are the instructions on how to replace the fans of the drive.
VACON · 98 COMMISSIONING AND ADDITIONAL INSTRUCTIONS
8
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
