Environmental conditions
▪ Ambient Temperature: 0º to 49º C or 32º to 120º F
▪ The room must be dust free and clean.
▪ It is optimal to mount the enclosure on fire rated plywood which is affixed to a cinder block wall or a wall
covering i.e. sheetrock
▪ Mount the cabinet in a secure, but generally accessible location
Mounting the enclosure
▪ Field Wiring – It is recommended that you drill holes or punch the knockouts in the metal enclosure for field
wiring before mounting the enclosure to the wall.
▪ A non-metallic sleeve is recommended to protect the wiring where it enters the cabinet.
▪ Mount the enclosure to the wall using the provided mounting holes. Recommended mounting hardware:
Four 1/4” x 1” lag bolts.

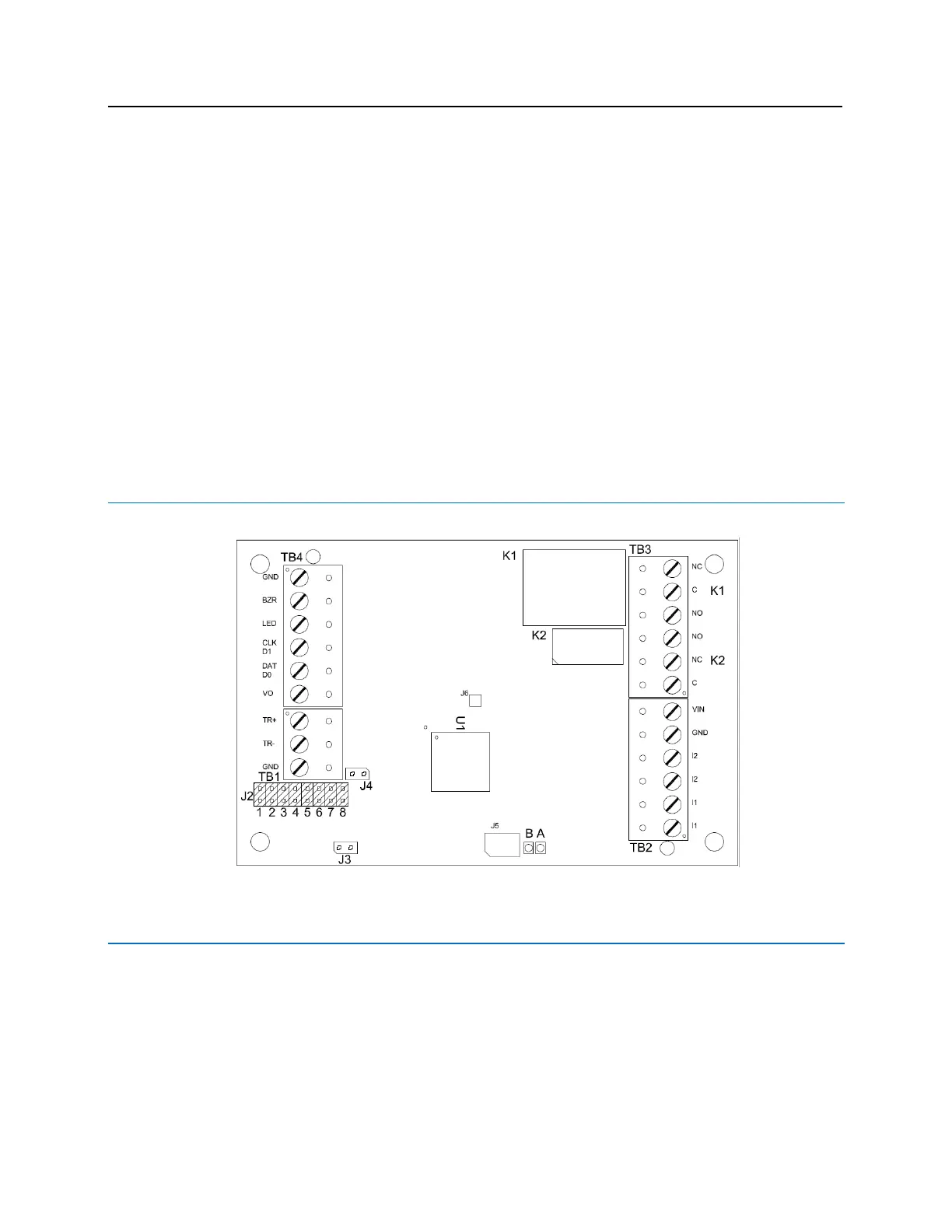

PIN Layout
Configuration
The VRI-1 will be connected to the bright blue via RS-485 protocol. A maximum of 16 reader interfaces can be
connected to one bright blue data channel. Wire runs are limited to 4,000 feet (Data Only) from the bright blue
to a VRI-1 (see Recommended Wire Chart). Data communication between bright blue and the reader interfaces
can be a multiplex or a daisy chain configuration.
Multiplex configuration
