Vanderbilt bright blue User Manual

210 bright blue Installation Manual
Power source
▪ Power Requirements - 12VDC power supply (593PI-12VDC recommended)
▪ Operating Voltage - 7.5 to 14.0 VDC
Radio Frequency (RF) - The PIM includes an RF Transceiver.
▪ Spread spectrum
▪ Direct sequencing spread spectrum
▪ Frequency - 902-928 MHz
▪ Data Rate - 62.5 kbps (half duplex)
▪ Modulo 256 error detection
▪ Selectable channels - 1 of 15 standard; 5 groups of 3 increased interference immunity (configurable)
▪ Approvals - FCC and RSS-210 (Canada)
▪ Transmitter Power - Up to 300mW
▪ Receiver Sensitivity - 90dBM typical
▪ Remote antenna modules - The PIM modules are capable of accommodating Remote Antenna Modules.

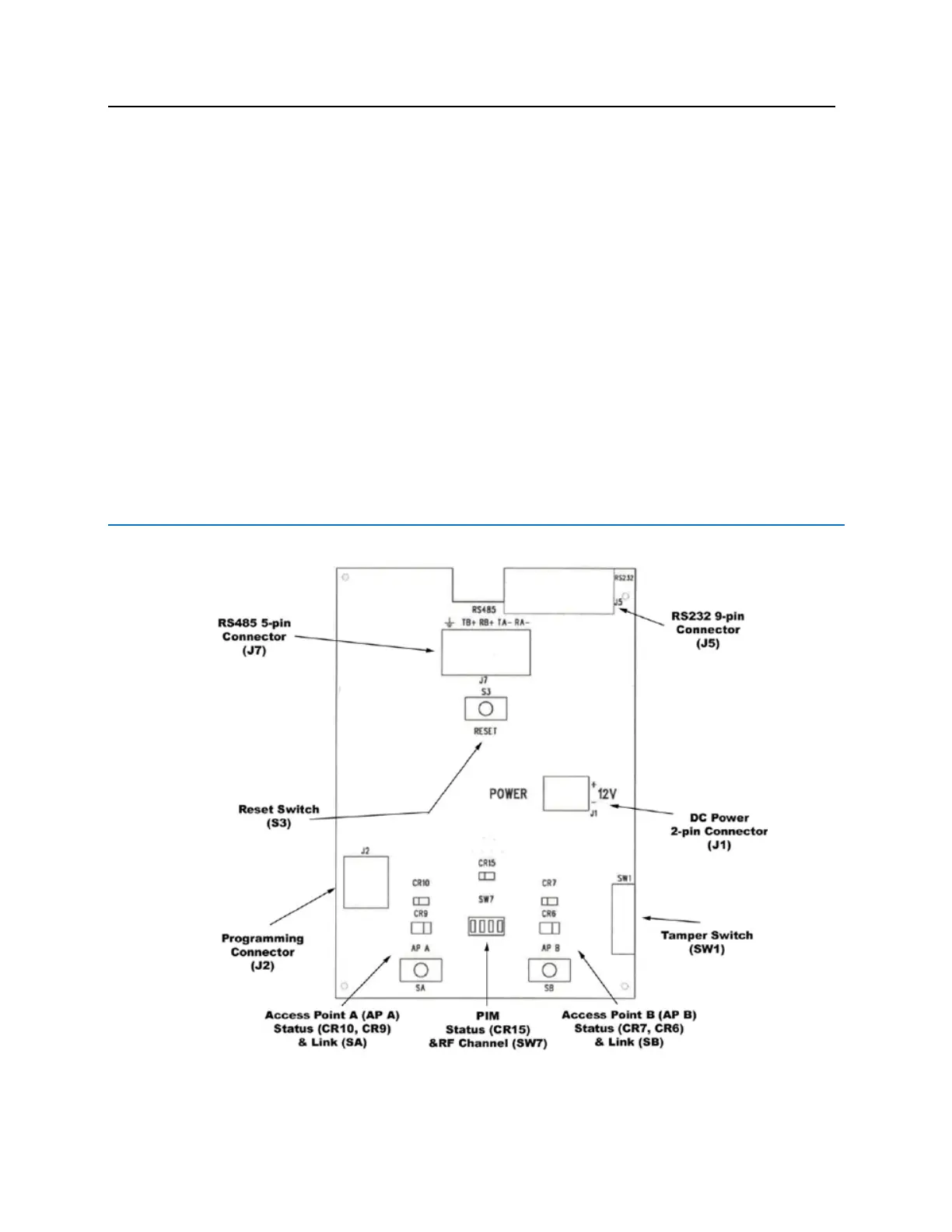

Wiring instructions

Vanderbilt bright blue Specifications

General

Brand	Vanderbilt
Model	bright blue
Category	Security Sensors
Language	English
