Chapter 5 VBB-NRI 91

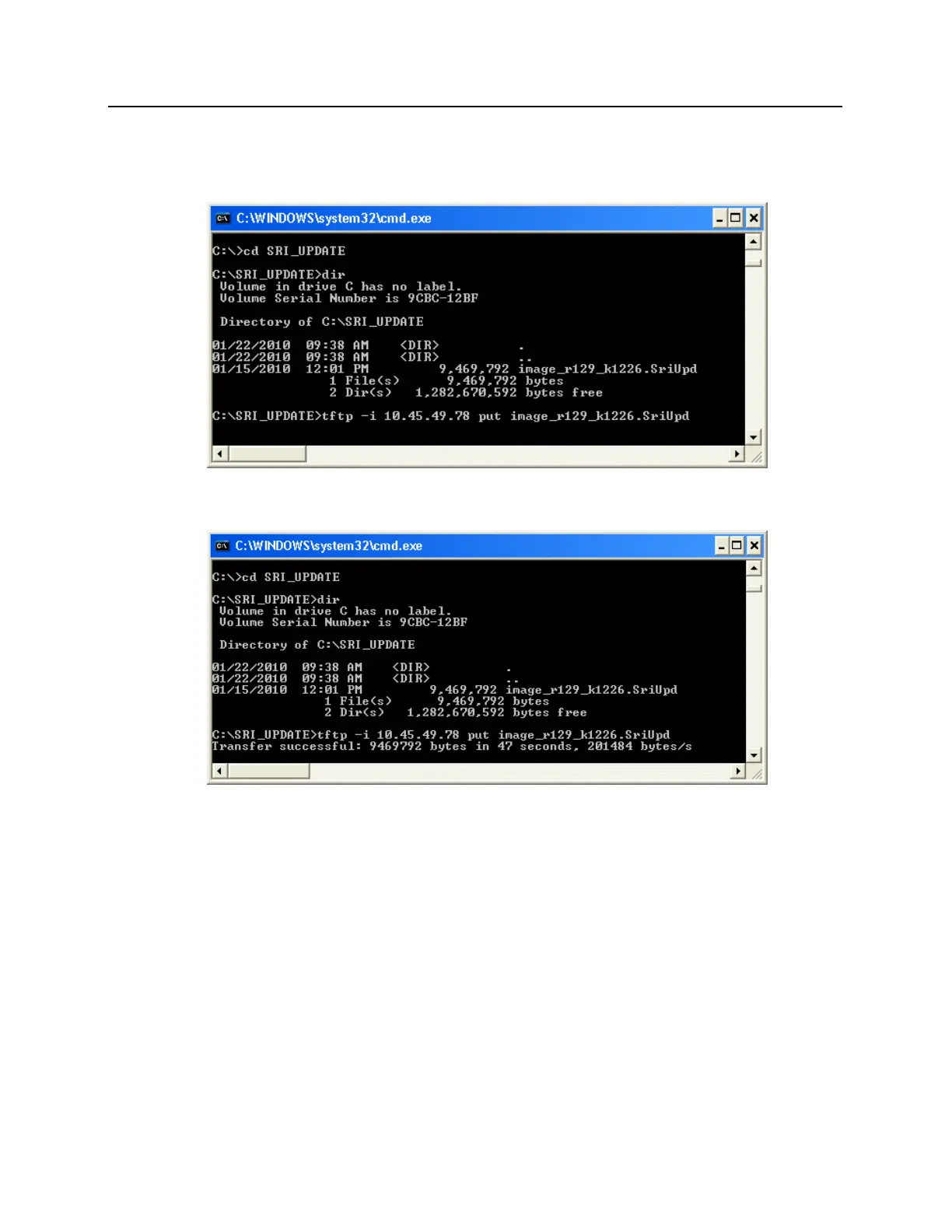

Example: tftp -I 10.45.49.78 put image_r129_k1226.SriUpd (the name of the image will vary depending on
the release of the firmware).
4 You will receive the following message when the file is sent to the VBB-NRI. It may take a few minutes for
the board to update to the latest firmware after the message is received.
Verifying Upgrade/Checking Version Number
Once the file has been successfully uploaded the user can verify the upgrade by checking the version number of
the VBB-NRI. Please allow 5 minutes after the file has been successfully uploaded to the VBB-NRI before
verifying the upgrade.
To check the version number:
1 Go to http://vbb-ri_address/index_ver.html to load the SRI Application Version Display.
