Environmental conditions
▪ Ambient Temperature: 0º to 49º C or 32º to 120º F
▪ The room must be dust free and clean.
▪ It is optimal to mount the enclosure on fire rated plywood which is affixed to a cinder block wall or a wall
covering i.e. sheetrock
▪ Mount the cabinet in a secure, but generally accessible location
Mounting
▪ Field Wiring - It is necessary to punch the knockouts in the metal enclosure for field wiring. It is
recommended that this is done before mounting the enclosure to the wall.
▪ A non-metallic sleeve is recommended to protect the wiring where it enters the cabinet.
▪ Mount the enclosure to the wall using the provided mounting holes. Recommended mounting hardware:
Four 1/4” x 1” lag bolts.
▪ To secure the SBB-RI enclosure use two screws through the openings provided on the cover. Alternately a
lock can be added using the provided punch out section on the cover.

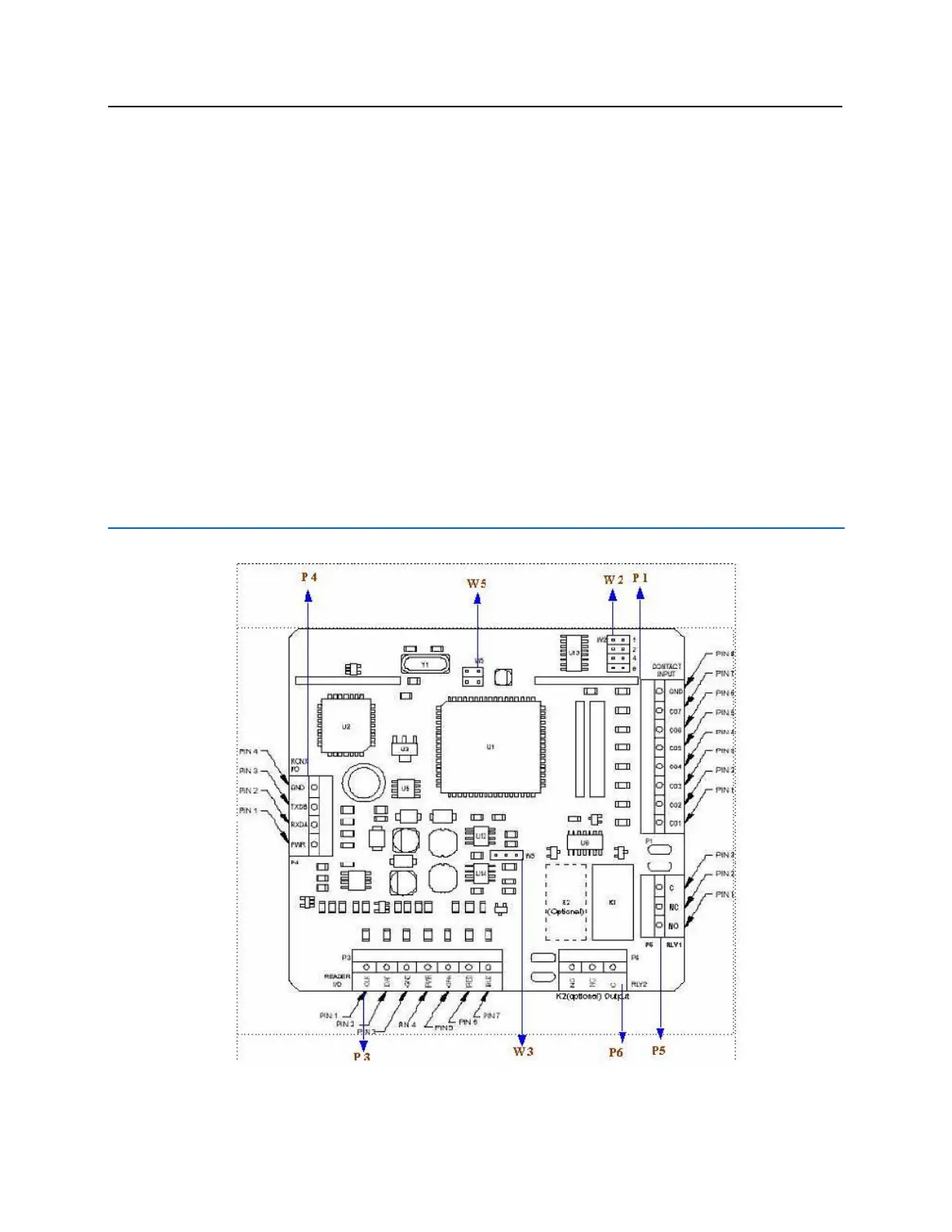

SBB-RI Pin Layout
