Vanderbilt bright blue - Addressing

VBBIM09/33/20 v5.0.3
Chapter 8 VRI-1S3 129
Addressing

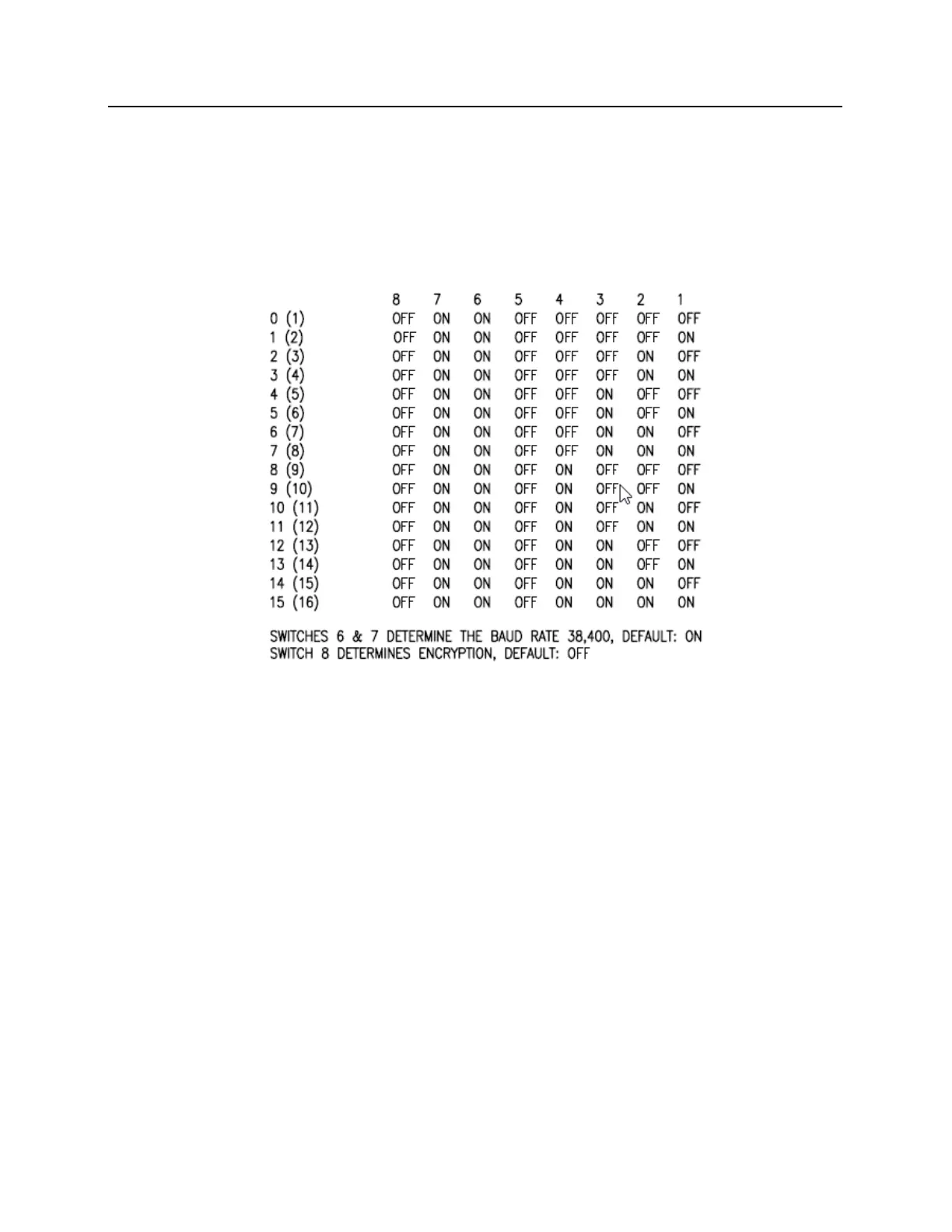

S1 on the VRI-1S3 consists of eight slide switches that can be combined to set the address for the device, RS-485
communications baud rate and enable encryption. Record the switch configured address of the VRI-1S3 and
which channel it is connected to on the bright blue controller. This information will be required to set up the reader
in bright blue. The numbers in parenthesis are the bright blue device addresses.
