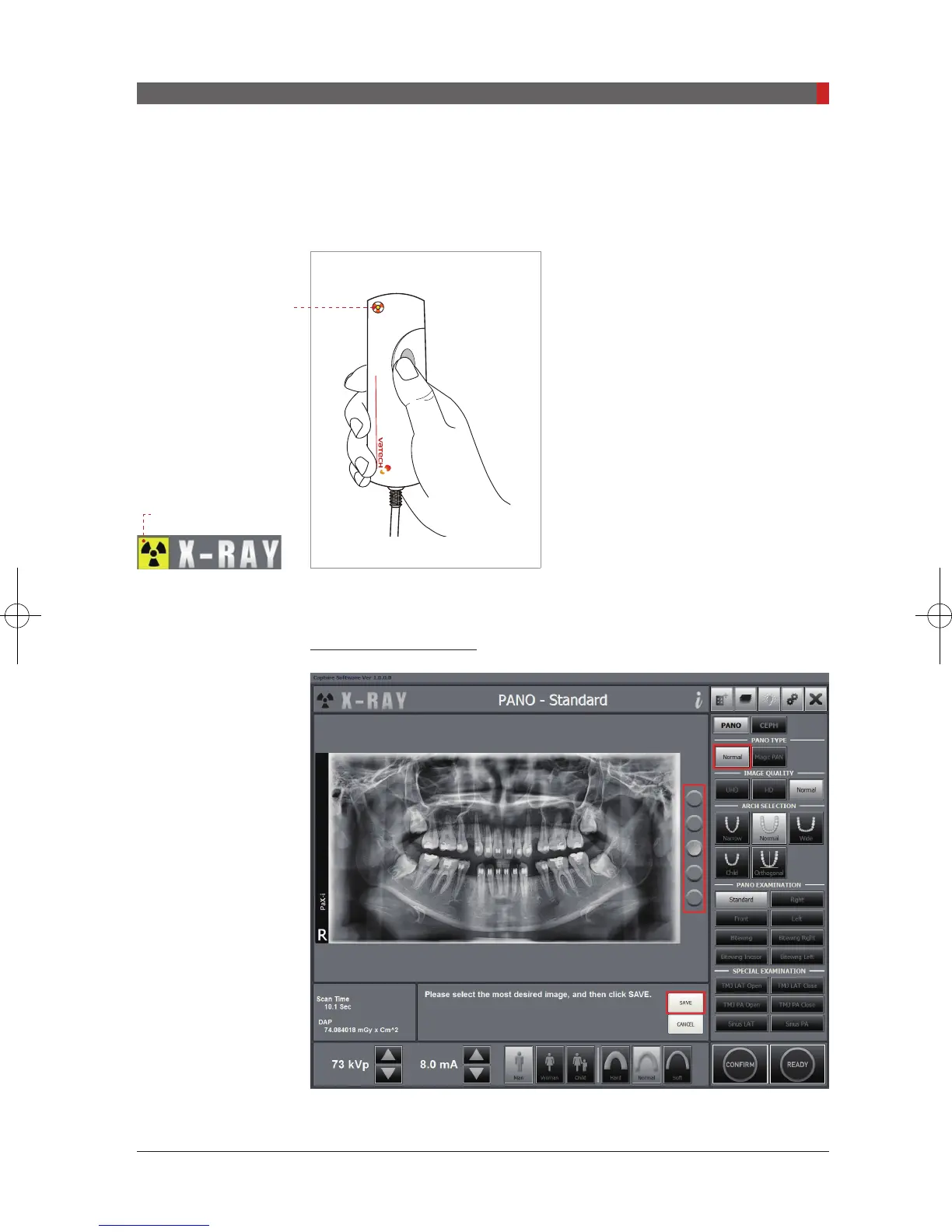

PaX-i (PCH-2500) User Manual

6. Acquiring PANO Images

A. Leave the X-Ray room and close the door. The operator must visually

monitor the patient at all times during image acquisition.

B. Press and hold down the exposure switch until image acquisition is complete.

During X-Ray irradiation, ensure that

The LED lamp on top of the equipment

turns orange to indicate X-Ray

emission.

The warning lamp outside the X-Ray

room turns on.

The sound (beep or music: optional)

goes off.

The radiation symbol on the upper left

corner of GUI turns yellow to indicate X-

Rays are being emitted.

C. The image appears in real time on the imaging GUI.

CASE 1: Normal / AF

Normal / AF: 5 images view is set

Exposure indicator

light turns orange

Orange: X-Ray On

X-Ray ON indicator

Pi_u272_en_20180514.indd 81 2018-05-14 오전 11:03:26
