- 117 -
DX-120 Programming Manual BASIC CO LINE PROGRAMMING TASKS
Assigning the Tenant Group via PC-DBA (continued)

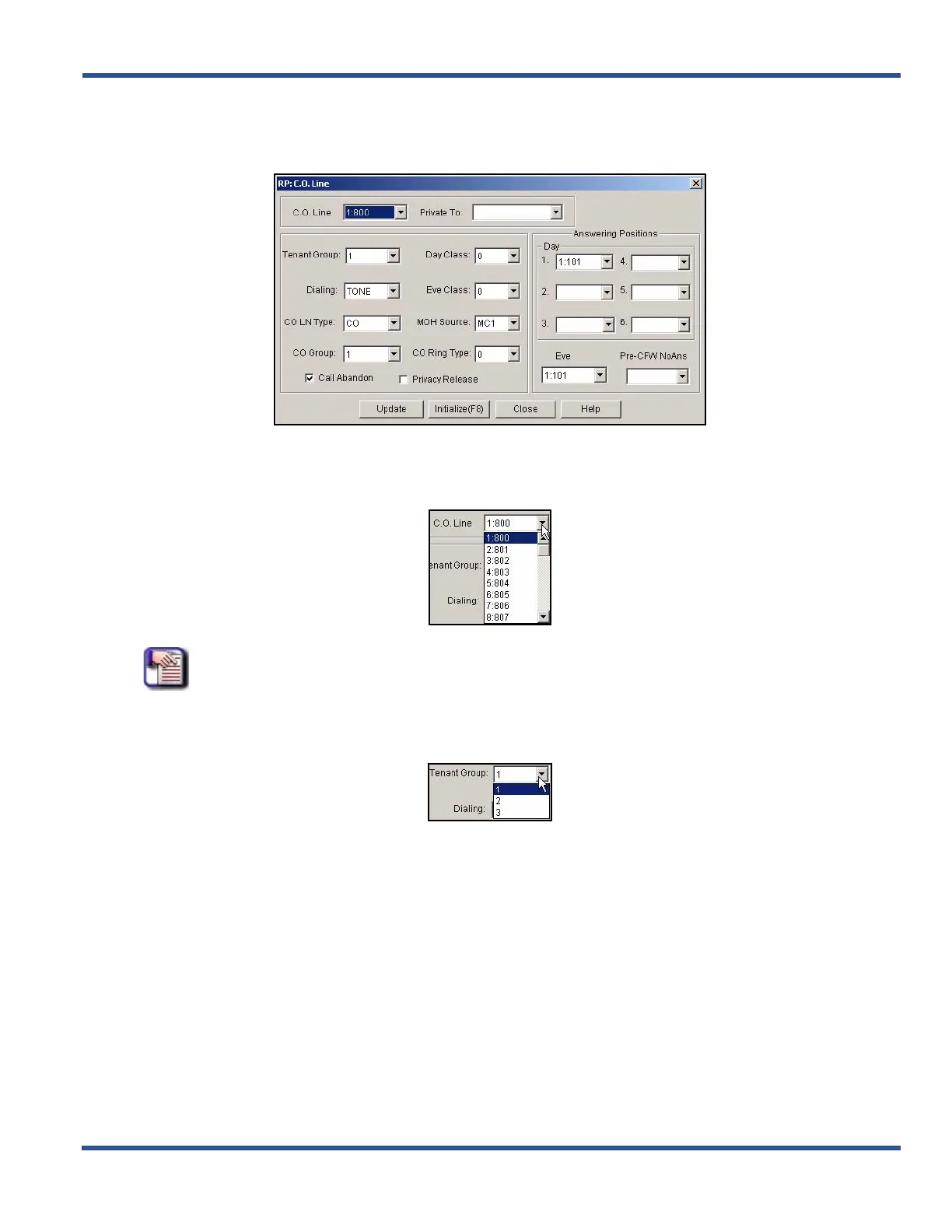

1) Go to ProgrammingXC. O. Line to display the C. O. Line screen.
2) Select the central office line you wish to assign.
• Available entries are 800 through 839.
• Entries 840 to 843 are for future use only.
NOTE
If this line is a private line for a particular extension, click the down arrow to the right of
the Private To field and select the extension to which it is to be assigned.
By default,
this field is blank.
3) Select the tenant group (1, 2, or 3) to which this line is to be assigned.
4) Click the Update button to enter your settings into the database on your local disk.
• Assign Tenant Groups to other C.O. Lines as needed using the steps above.
When all assignments have been made:
5) Click the Close button to exit the current screen and return to the PC-DBA main screen.
Once all database changes have been completed:
6) Perform a SEND to copy your new database to the DX-120 switch system memory.
Assigning the Tenant Group (continued on next page)
To Next Page
