BASIC EXTENSION PROGRAMMING TASKS DX-120 Programming Manual
- 398 -
Assigning Extensions to Paging Groups (continued)
ASSIGNING EXTENSIONS TO PAGING GROUPS VIA PC-DBA
From the PC-DBA main screen:

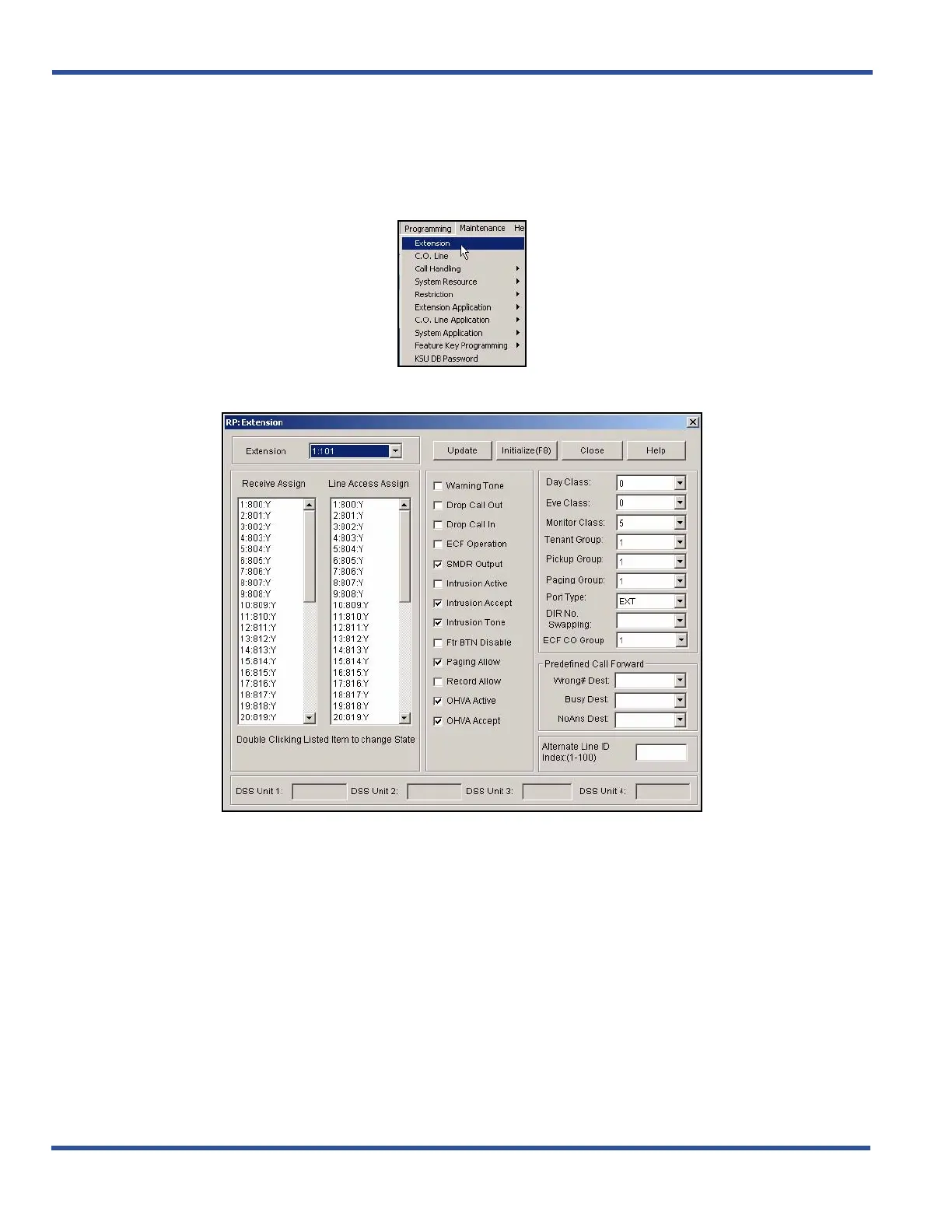

1) Go to ProgrammingXExtension to display the Extensions screen.
2) Select the extension number you want to program.
3) Select the paging group number for the group you want to assign from the Paging Group field.
• Valid options are 1 through 8.
• The default is 1.
4) Click the Update button to enter and save your settings into the database on your local disk.
• Program other groups as needed using the steps above.
When all assignments have been made:
5) Click the Close button to exit the current screen and return to the PC-DBA main screen.
Once all database changes have been completed:
6) Perform a SEND to copy the database changes to the DX-120 switch system memory.
Assigning Extensions to Paging Groups (continued on next page)
