BASIC SYSTEM PROGRAMMING TASKS DX-120 Programming Manual

- 84 -

Establishing Music Sources via PC-DBA (continued)

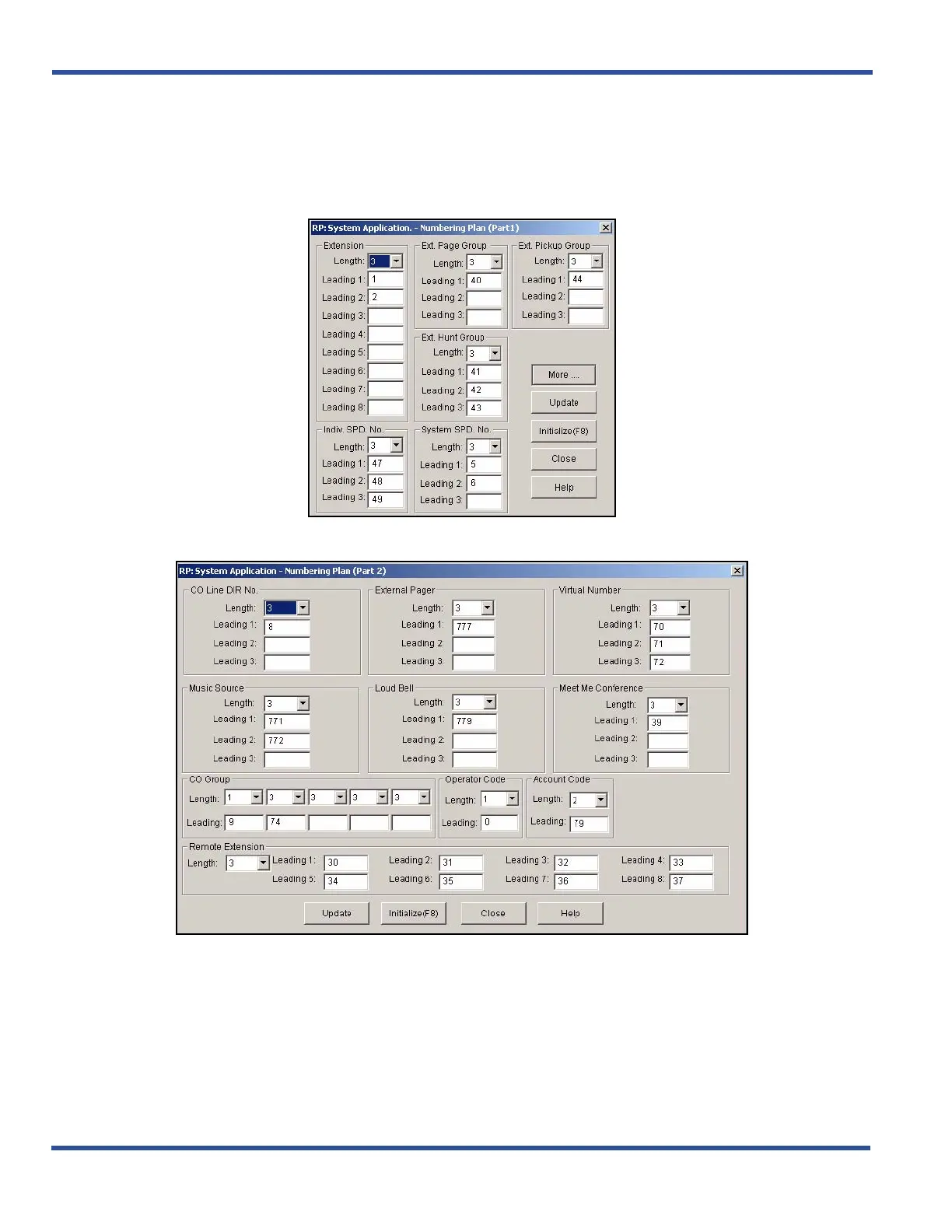

1) Go to ProgrammingXSystem ApplicationXNumbering Plan to display the Numbering Plan (Part 1)

screen.

2) Click More... to display the Numbering Plan (Part 2) screen.

Establishing Music Sources via PC-DBA (continued on next page)
