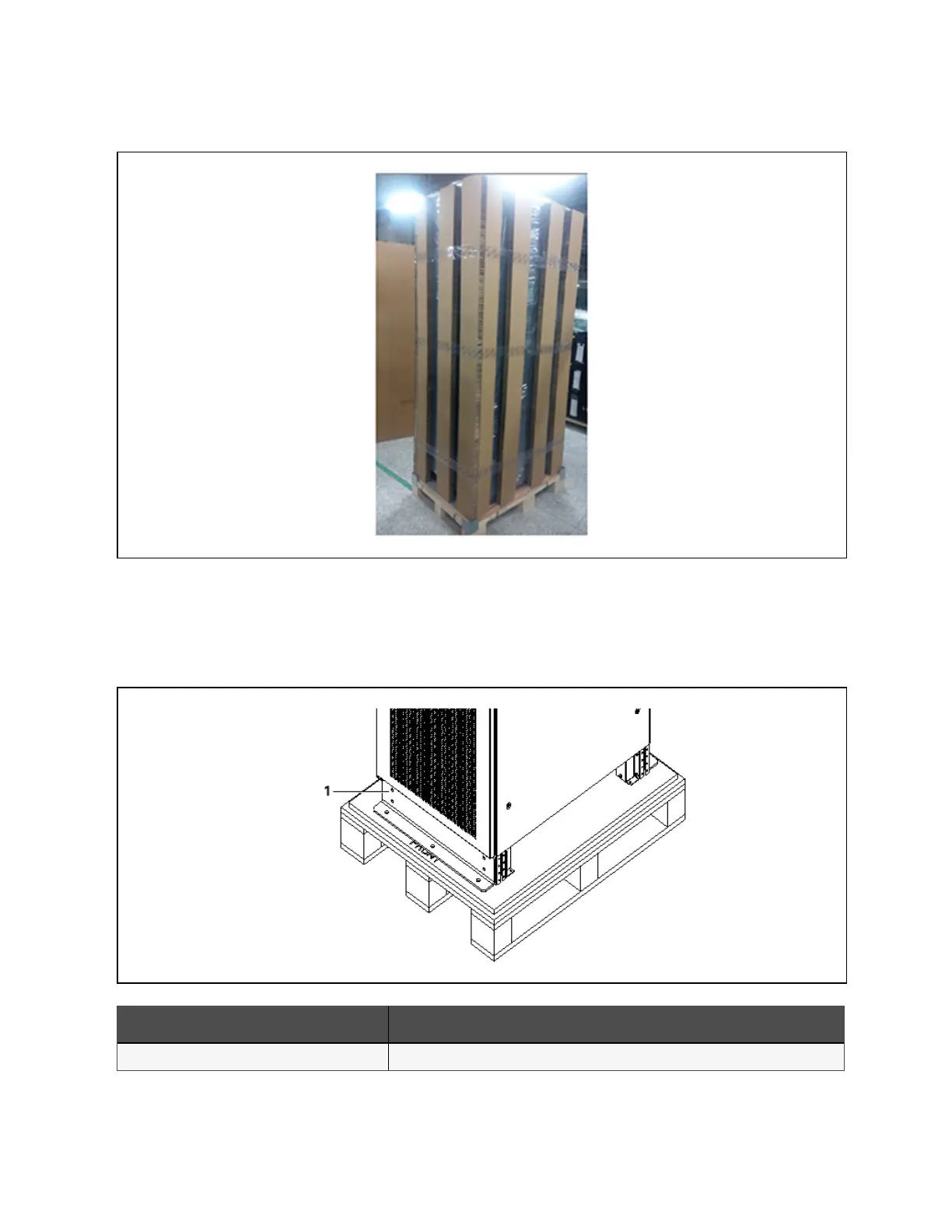

Figure 3.4 Rem oving honeycom b board
3. Open the front door of the UPS, loosen the fixing screws and remove the bottom fixed part at front of the cabinet.
Then loosen the fixing screws and remove the bottom fixed part at back of the cabinet. As shown in Figure 3.5
below.
Figure 3.5 Rem oving bottom fixed part
N o. Descriptio n
1 Fixed part
4. Refer to Figure 3.6 on the next page, install the decorative plate at the position of the removed fixed part.
3 Mechanical Installation
22
Vertiv™ Liebert® APM Plus User Manual
