Vertiv™ NetSure™ Control Unit (NCU) User Manual
111

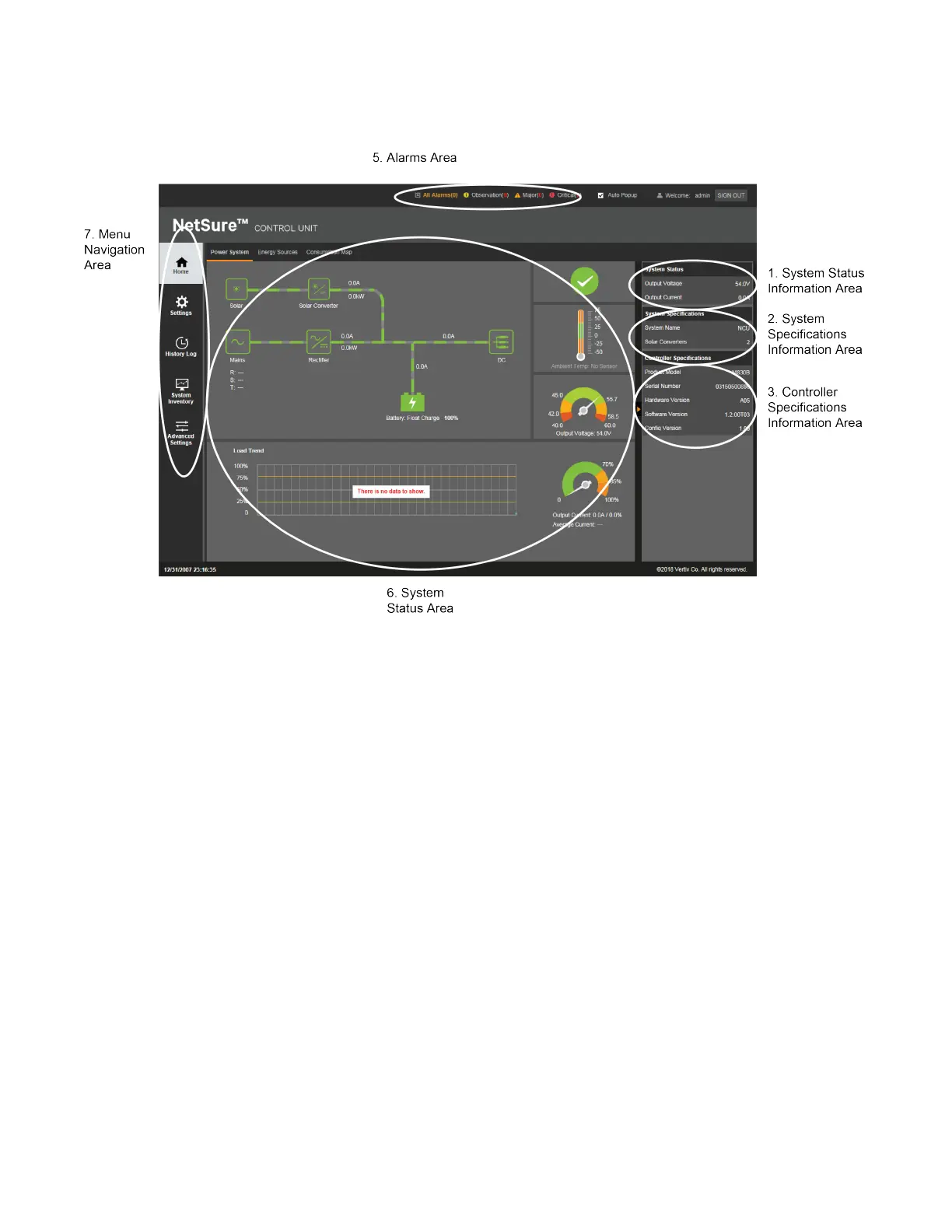

Figure 5.2 NCU Homepage with Solar Converters
The homepage window is divided into the following areas:
1. System Status Information Area (see “System Status Information Area” on page 112).
2. System Specifications Information Area (see “System Specifications Information Area” on page 112).
3. Controller Specifications Information Area (see “Controller Specifications Information Area” on page 112).
4. Site Information Area (see “Site Information Area” on page 112).
5. Alarms Area (see “Alarms Area” on page 113).
6. System Status Area (see “System Status Area” on page 114).
7. Menu Navigation Area (see “Menu Navigation Area” on page 138).
