Vertiv™ NetSure™ Control Unit (NCU) User Manual
As noted in FIAMM Technical Bulletin, ‘48TL200 Modbus Protocol’, (Revision 5, Issue Date 21/05/2012), the default BAUD Rate is set
in the FIAMM controller at 115.2k.
User is to upload the file, ‘48TL200-Baud-rate-9600.xml', into each FIAMM battery's separate controller, applying the respective
software BAUD Rate adjustment to each 48TL200 battery using the upgrade utility instructions as described in the User Manual
referenced below.
After the upload is complete, the User is to toggle the ON/Off switch located on each of the effected batteries, for purpose of applying
the BAUD rate software changes to the controller.
Refer to the following FIAMM documents for relative instructions:
• FIAMM Technical Bulletin, ‘48TL200 Modbus Protocol’, (Revision 5, Issue Date 21/05/2012), Section “Setting a new MODBUS
address”.
• FIAMM User Manual, ‘48TL200 SMC Monitor’, (Revision 0, Issue Date 27/08/2012), Section “FW Update”.
Procedure
1. Change the BAUD rate on each of the FIAMM batteries by following the same “SMCMonitor200.exe” program instructions as
noted for changing Modbus Address, described in the previous procedure, (referring again to the instructions listed in
referenced FIAMM Document, ‘48TL200_Modbus Protocol’, Section ‘Setting a new MODBUS address’). However, for the
changing of the BAUD rate, a different operational ‘.xml’ file is to be used.

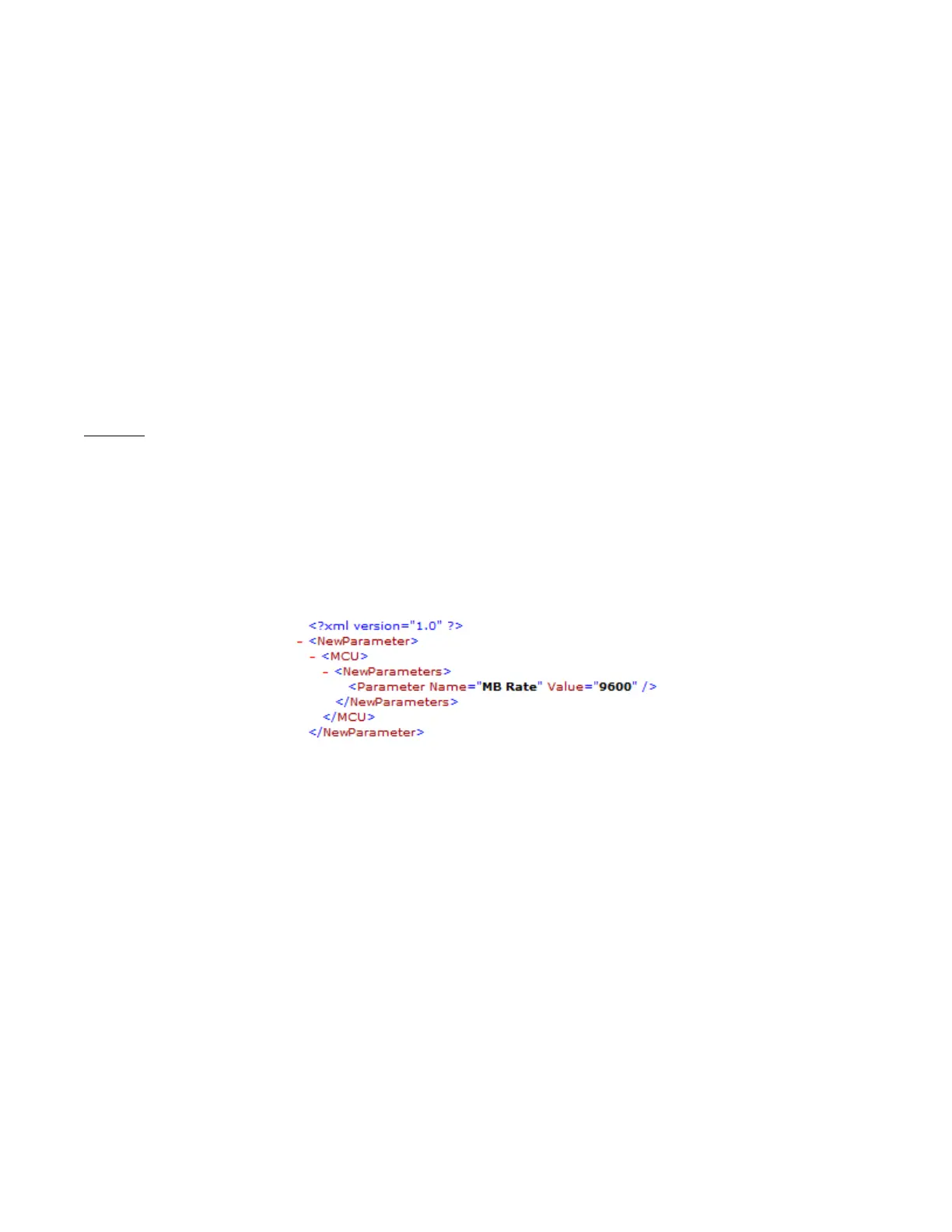

• Save the new BAUD rate in a .xml file as shown below, then load the file into each battery using the UTILITY--
>UPGRADE function of the program:
2.12 TL1 Interface
TL1 is available as an orderable option.
2.12.1 General
The NCU can operate as a Network Element (NE) in a Network Maintenance and Administration (NMA) system. NMA is software
developed by Bell Communications Research (Bellcore) to run on an Operations System (OS). This system utilizes the Transaction
Language 1 (TL1) command language.
It is beyond the scope of this manual to provide operational instructions for an NMA system and TL1 commands. Refer to the NMA
system documentation and the appropriate Bellcore publications for operational instructions.
Specifically, refer to the current issue of the following Bellcore publications for further information on the NMA system and TL1
command language.
TR-NWT-000831
TR-NWT-000833
TR-NWT-000835
TR-NWT-000199
