Vertiv™ NetSure™ Control Unit (NCU) User Manual
5.9 Menu Navigation Area
Available menus are displayed in this area. When a menu is clicked on, the system status screen is replaced with the selected menu’s
screen. Note that there is a menu item named HOME to return to the system status screen.
Located at the top of each main menus are tabs to select the various sub-menus. If there are more sub-menus then can be displayed
in the window, an arrow appears to navigate to the additional sub-menus.

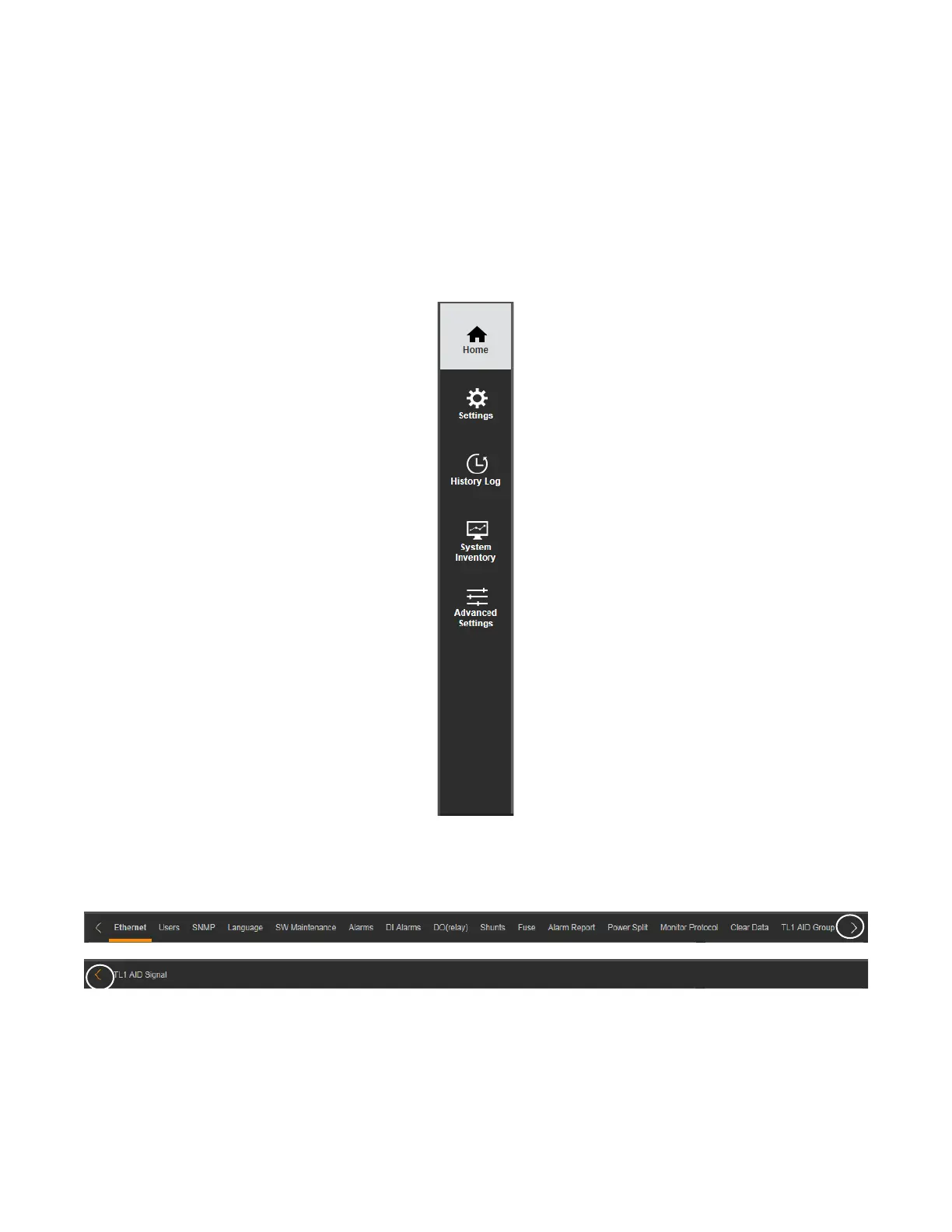

Figure 5.35 Menu Navigation Area
Figure 5.36 Sub-Menu Arrows
