Vertiv™ NetSure™ Control Unit (NCU) User Manual
Module (Rectifier, Converter, Solar Converter) Device Group Status Page
Clicking on a rectifier, converter, or solar converter icon on the power system status block diagram opens up the status page for the
module’s Device Group. The Module Device Group status page contains multiple tabs (depending on the modules installed in your
power system). This includes Rectifier, Converter, and Solar Converter tabs.
Rectifier Device Group Status Page Tab
This tab displays status values such as “Total Current”, “Number of Rectifiers”, etc.

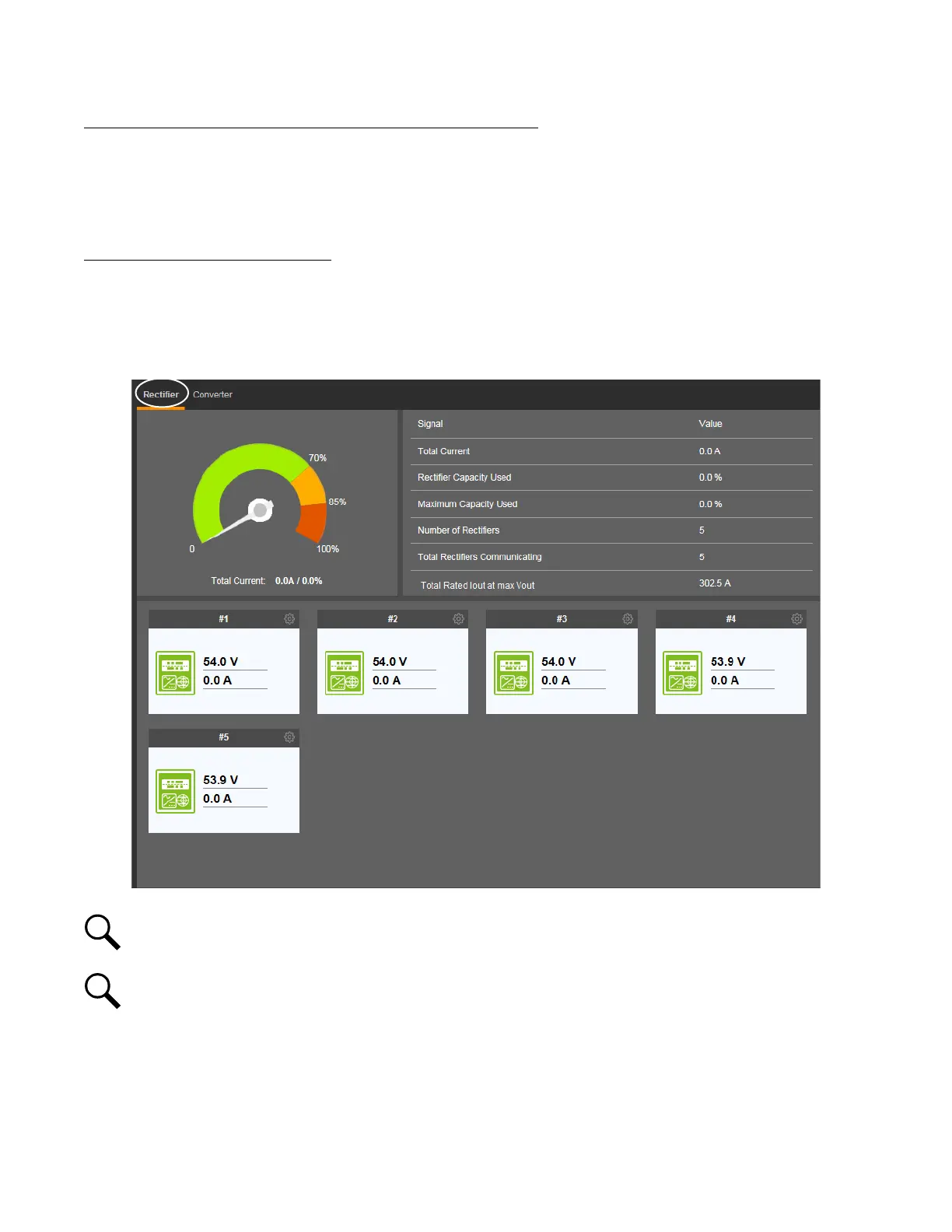

Figure 5.10 Rectifier Device Group Status Page Tab
NOTE!
The “Rectifier Capacity Used” and load percentage indicators are based on the nominal ratings under nominal
operating conditions
NOTE!
“Rectifier Capacity Used” and “Maximum Used Capacity” are based on 54 VDC.
