Vertiv™ NetSure™ Control Unit (NCU) User Manual

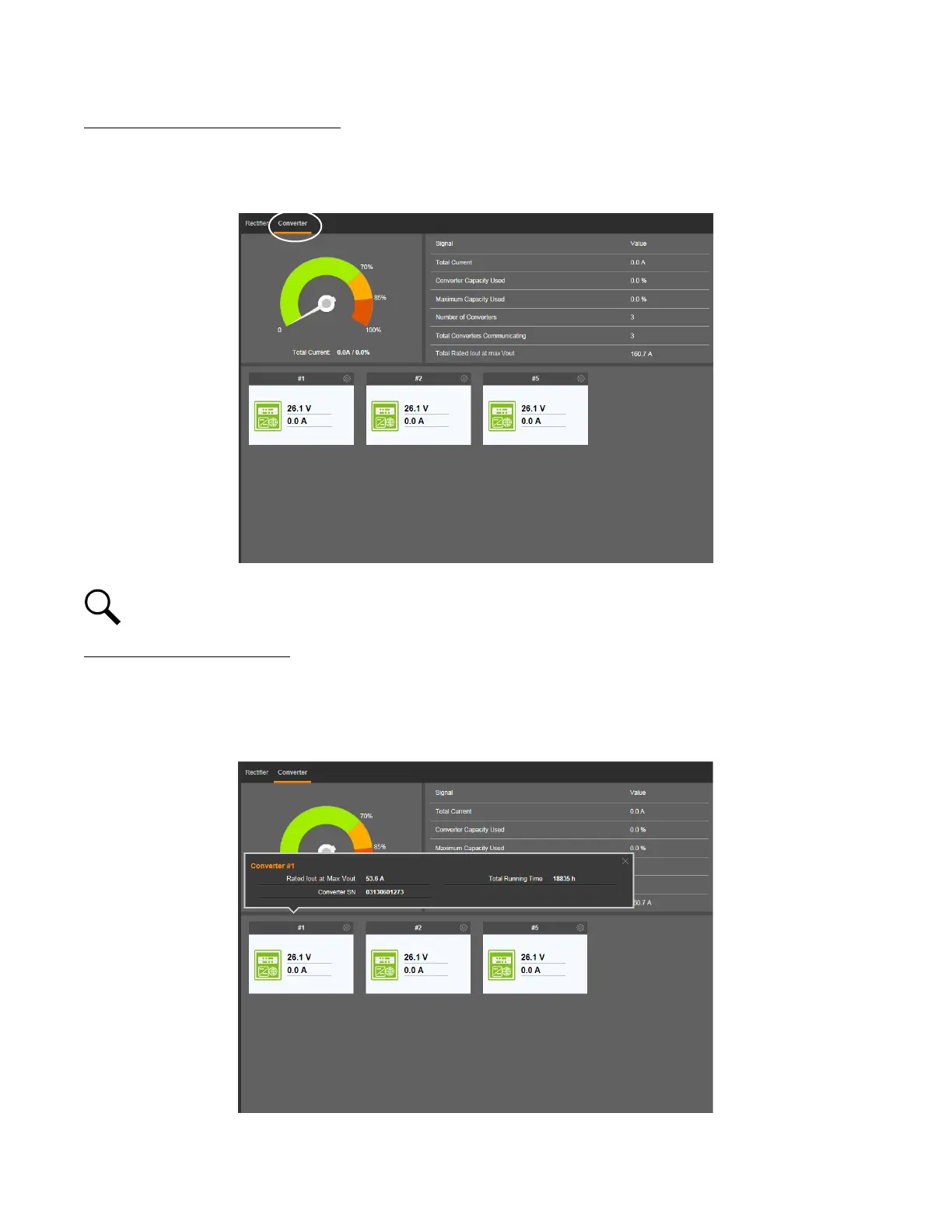

Converter Device Group Status Page Tab
This tab displays status values such as “Total Current”, “Number of Converters”, etc.
Figure 5.18 Converter Device Group Status Page Tab
NOTE!
“Converter Capacity Used” and “Maximum Capacity Used” are based on 26 VDC.
Individual Converter Status Page
Displayed on the Converter Device Group status page are the individual converters installed in the system. Click on an individual
converter icon to display its status such as "Current", etc.
Figure 5.19 Individual Converter Status Page
