Vertiv™ NetSure™ Control Unit (NCU) User Manual
TL1 AID Signal Tab
This tab is used to enable/disable and configure the pre-defined TL1 signals. You can enable or disable a signal and set attributes of a
signal (i.e. set condition type, condition description, notification code, etc.).
NOTE!
TL1 signals are pre-defined. You cannot add or remove TL1 signals (just enable/disable them). You cannot change
the NCU signal assigned to a TL1 signal and you cannot change the AID that contains the TL1 signal.

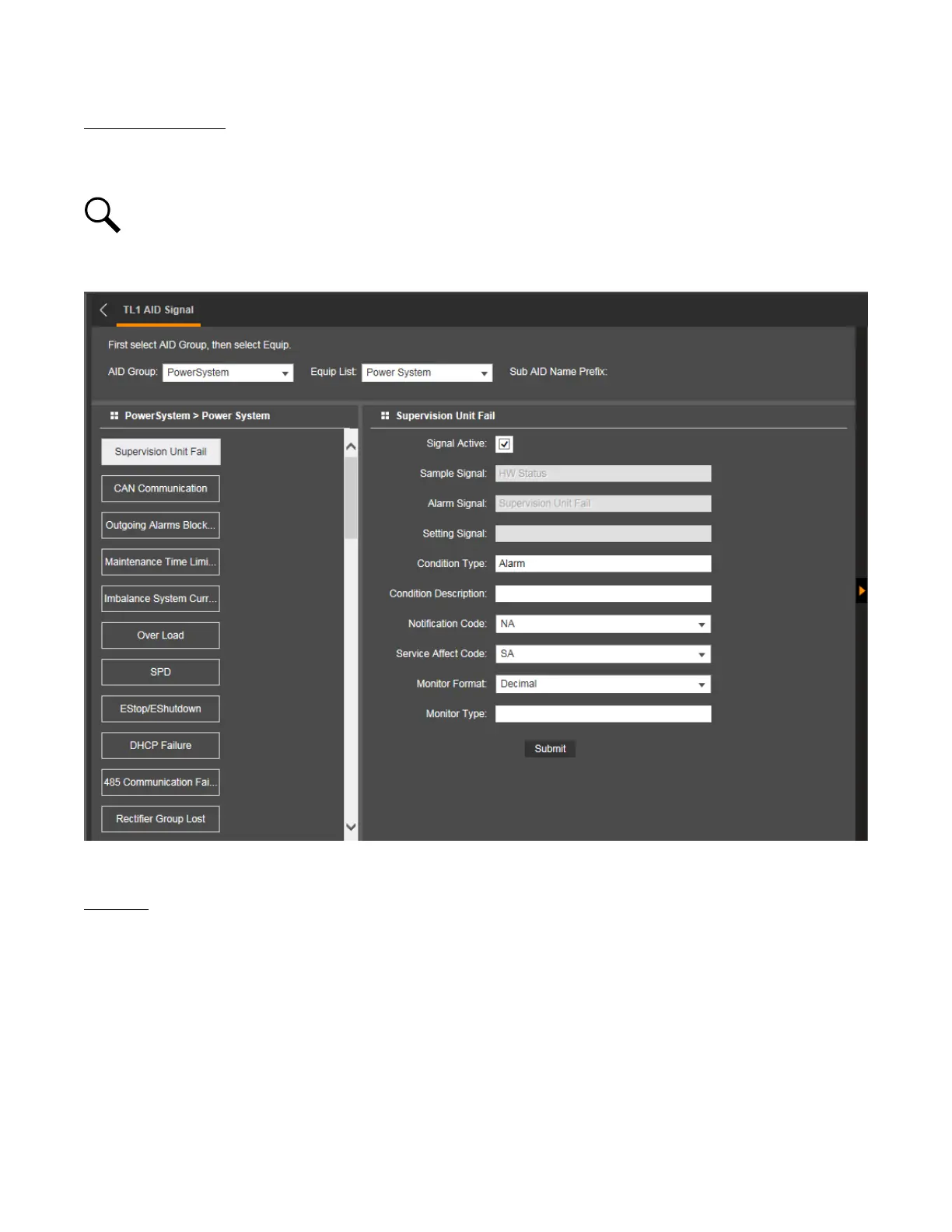

Figure 5.97 TL1 AID Signal Tab
Procedure
You assign signals to the TL1 access identifiers as follows.
1. Select an “AID Group” from the drop-down list. AID groups where programmed using the TL1 AID Group tab.
2. Select an “Equipment List” for this Aid Group from the drop-down list.
3. A list of signals associated to this AID Group appear in the left window pane. Select a signal in the AID Group to be
configured. The AID to signal associations cannot be changed by the customer.
4. Enter the selected signal’s TL1 parameters in the right window pane.
