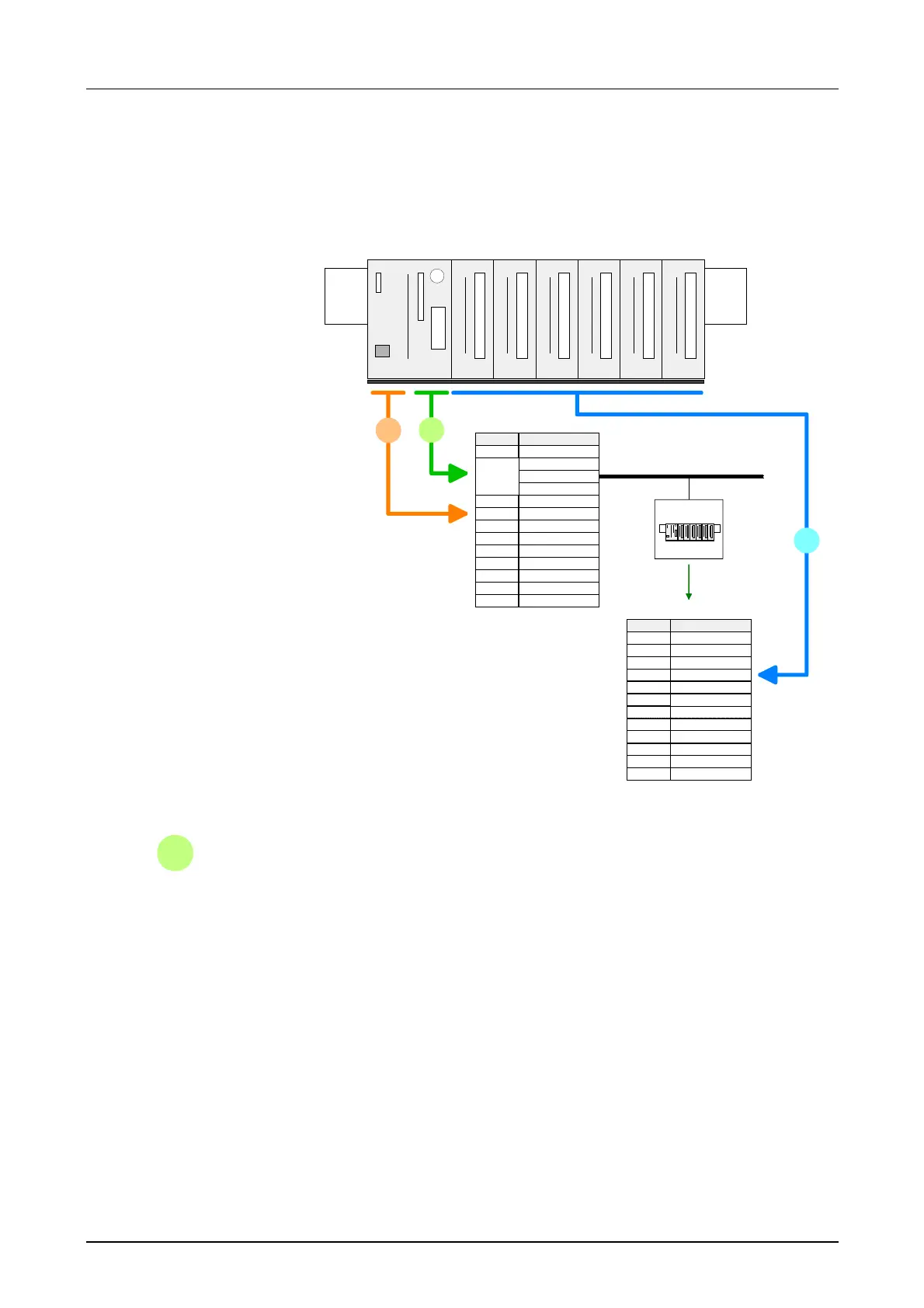

The following section describes the approach of the project engineering in
the hardware configurator from Siemens using an abstract example.
Hardware
Module
CPU 315-2DP
DP
MPI/DP
CP343-1 TCP
System 300
Slot
1
2
X2
X1
3
4
5
6
7
8
9
10
11
1
System 200V
DI DO DIO AI AO FMCPU 21xNET
Project
engineering
vipa_21x
System 200V
Module
CPU 21xNET
DI
DO
DIO
AI
AO
FM
DP-Mastersystem
Profibus-Adr.: 1
Slot
0
1
2
3
4
5
6
7
8
9
10
11
3
2
• Start the SIMATIC manager from Siemens and create a new project.
• Insert a new System 300 station via Insert > Station > SIMATIC 300
station.
• Activate the station "SIMATIC 300" and open the hardware configurator
by clicking on "Hardware".
• Configure a rack (Simatic300 \ Rack-300 \ Rail).
• For all CPUs 21x from VIPA are configured as CPU 315-2DP, you select
the CPU 315-2DP in the hardware catalog. This is to find at:
SIMATIC 300 \ CPU-300 \ CPU 315-2 DP \ 6ES7 315-2AF03-0AB0
V1.2
Steps of project
engineering
project engineering
to
1
