Here you can configure an active read connection.
In addition to the data required to establish the connection you must also
specify the source from where the data should be read.
Input fields
Remote Host IP-address of the station from which you wish to read
data.
Remote Port Port address of the remote station.
Local Port Port address of your own (local) station. To simplify
matters you can specify the same port address for remote
and local.
Time (10mSec) Definable interval for cyclic read operations.
OrgKennung Type of the source block.
DBNr Number of the source block.
AnfAdr Start address of the source block.
Len Word length of the source block.
Tick-box
UDP This tick mark selects unsecured communications. No vir-
tual connections are used by unsecured communication
links. In this manner you can only display UDP messages.
Buttons
Connect The connection is established and prepared for the read
operation.
Read this The data requested is read via this connection.

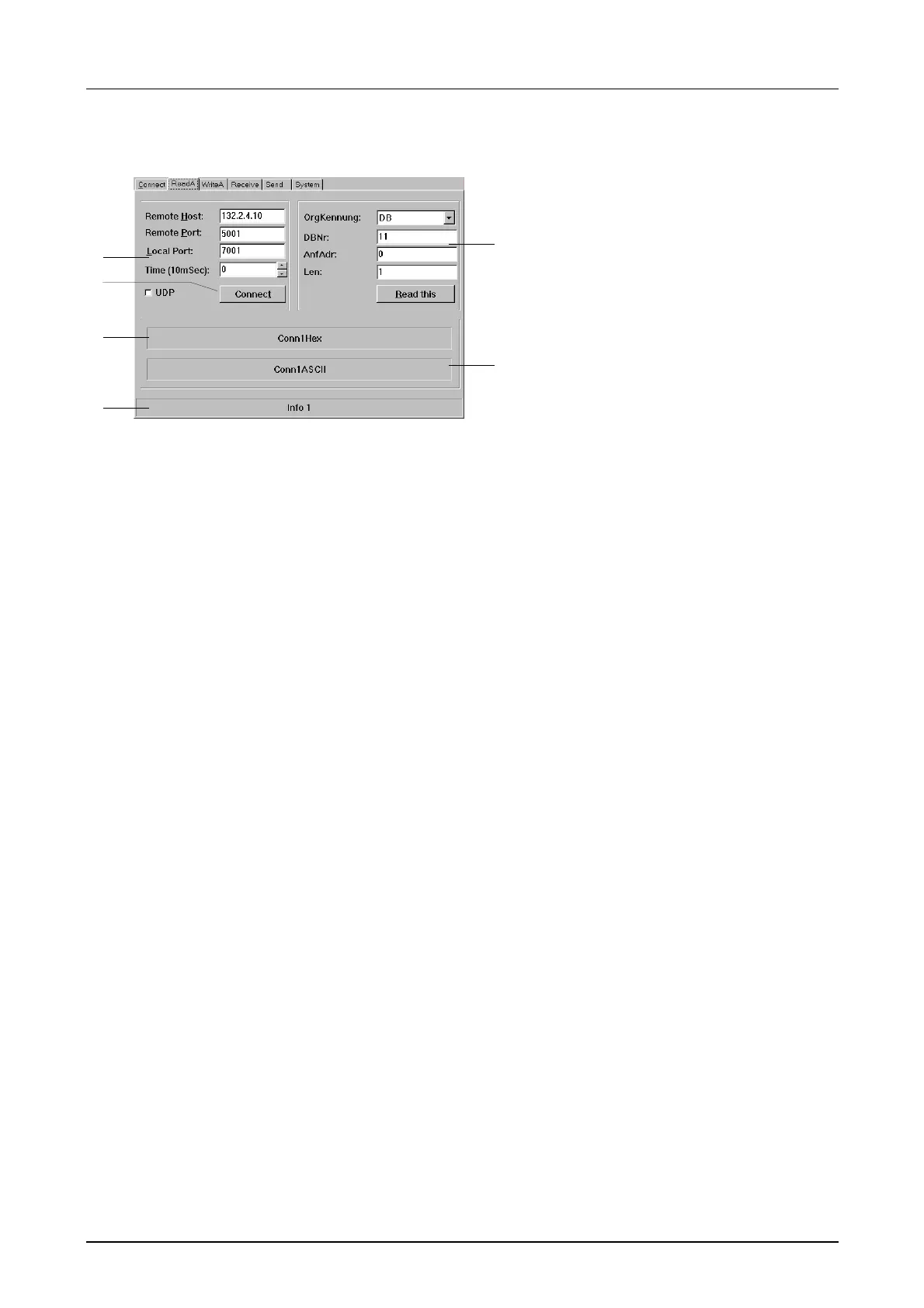

ReadA tab
[1] port data
[2] establish a connection
[3] hexadecimal number
[4] information window for the
status of the connection
[5] source data
[6] ASCII formatted display of
the data received
