Chapter 6 Deployment of the CPU 21xDPM Manual VIPA CPU 21x
6-6 HB103E - Rev. 05/45
For the project engineering of the Profibus-DP master in the CPU 21xDPM
the following preconditions have to be fulfilled:
• SIMATIC manager from Siemens is installed.
• When using Profibus-DP slaves of the Systems 100V, 200V and 300V
from VIPA: GSD-files are included into the hardware configurator
• There is a transfer possibility between configuration tool and
CPU 21xDPM.
The hardware configurator is a part of the SIMATIC manager from
Siemens. It serves the project engineering. The modules that may be con-
figured here are listed in the hardware catalog.
For the deployment of the Profibus-DP slaves of the Systems 100V, 200V
and 300V from VIPA you have to include the modules into the hardware
catalog by means of the GSD-file from VIPA.

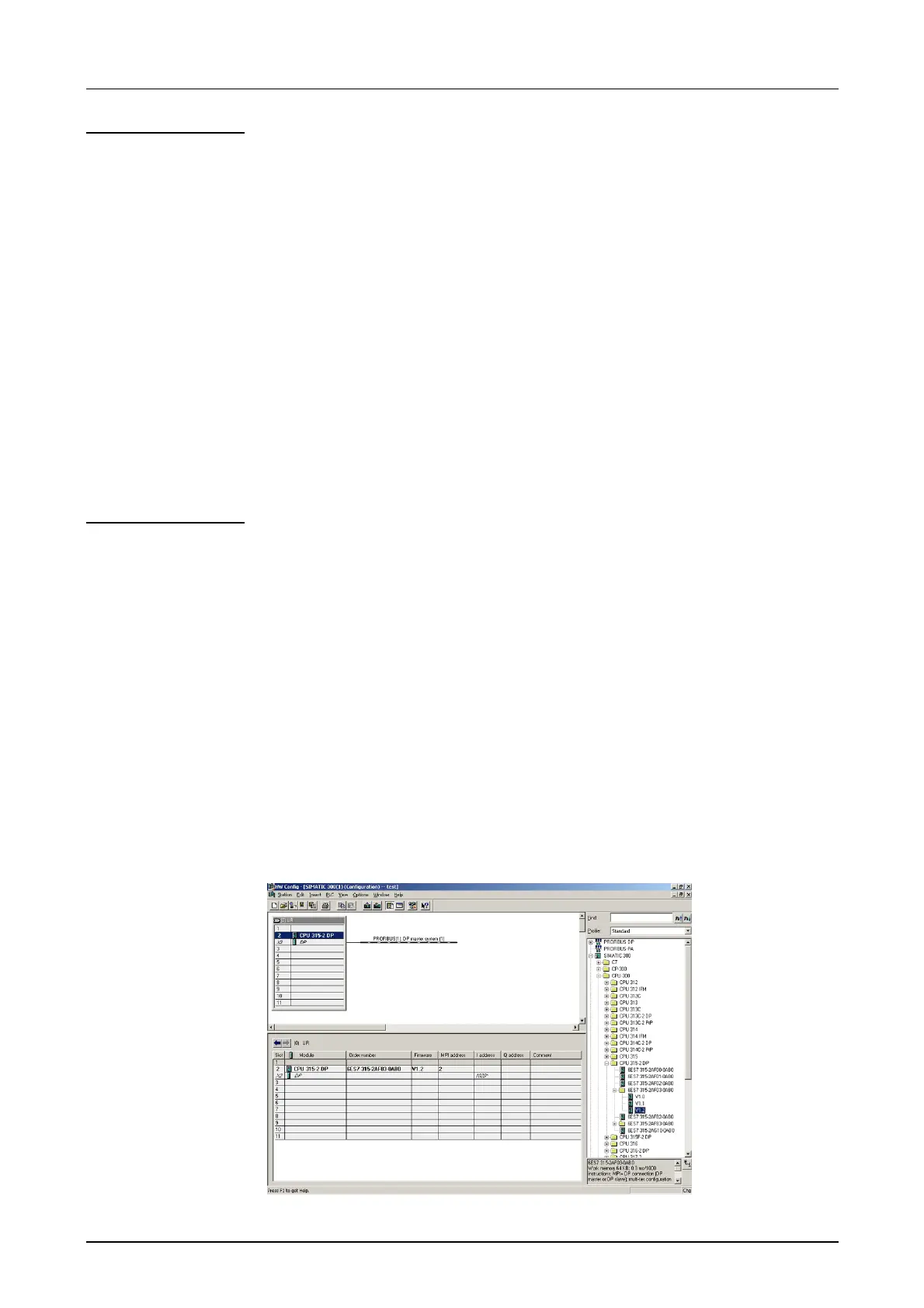

The following section describes the single steps of the project engineering.
• Create a new project System 300V.
• Add a profile rail from the hardware catalog.
• In the hardware catalog the CPU with Profibus master is listed as:
Simatic300 > CPU-300 > CPU315-2DP > 6ES7 315-2AF03-0AB0
• Insert the CPU 315-2DP (6ES7 315-2AF03-0AB0 V1.2).
• Type the Profibus address >1 of your master.
• Click on "DP", choose the operating mode "DP master" under object
properties and confirm your entry with OK.
• Click on "DP" with the right mouse button and choose "add master
system". Create a new Profibus subnet.
Preconditions
Install Siemens
hardware
configurator
Project
engineering
CPU 21xDPM
Create a virtual
Profibus system
