Manual VIPA CPU 21x Chapter 6 Deployment of the CPU 21xDPM
HB103E - Rev. 05/45 6-7
To be, like mentioned above, compatible to the SIMATIC manager from
Siemens, you have to include the CPU section explicitly.
• Add the System "VIPA_CPU21x" to the Profibus subnet. You find this in
the hardware catalog under PROFIBUS DP > Additional field devices >
IO > VIPA_System_200V.
• Assign the Profibus address 1 to this slave.
• Place the CPU 21x-2BM02 from VIPA at the 1
st
slot in your configurator.
Choose it in the hardware catalog under VIPA-CPU21x.
Now the project engineering of your Profibus-DP master and your CPU is
finished. The following shows how to include the directly plugged-in
System 200V modules.

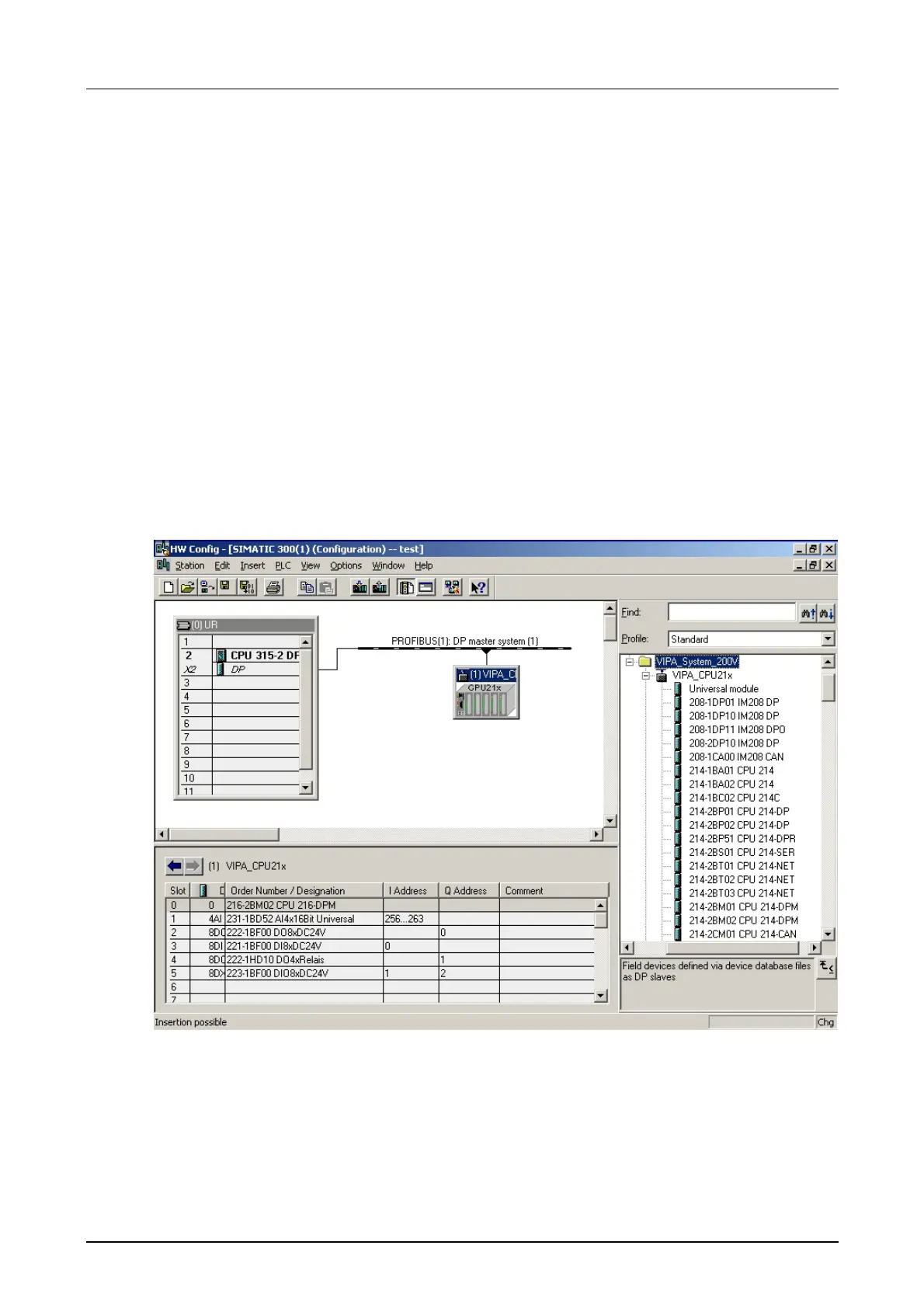

To include the modules plugged-in at the VIPA bus, you drag the according
System 200V modules from the hardware catalog at VIPA_CPU21x and drop
it on the slots below the CPU.
Configure
CPU section
Configure
central periphery
