Chapter 6 Deployment of the CPU 21xDPM Manual VIPA CPU 21x
6-8 HB103E - Rev. 05/45

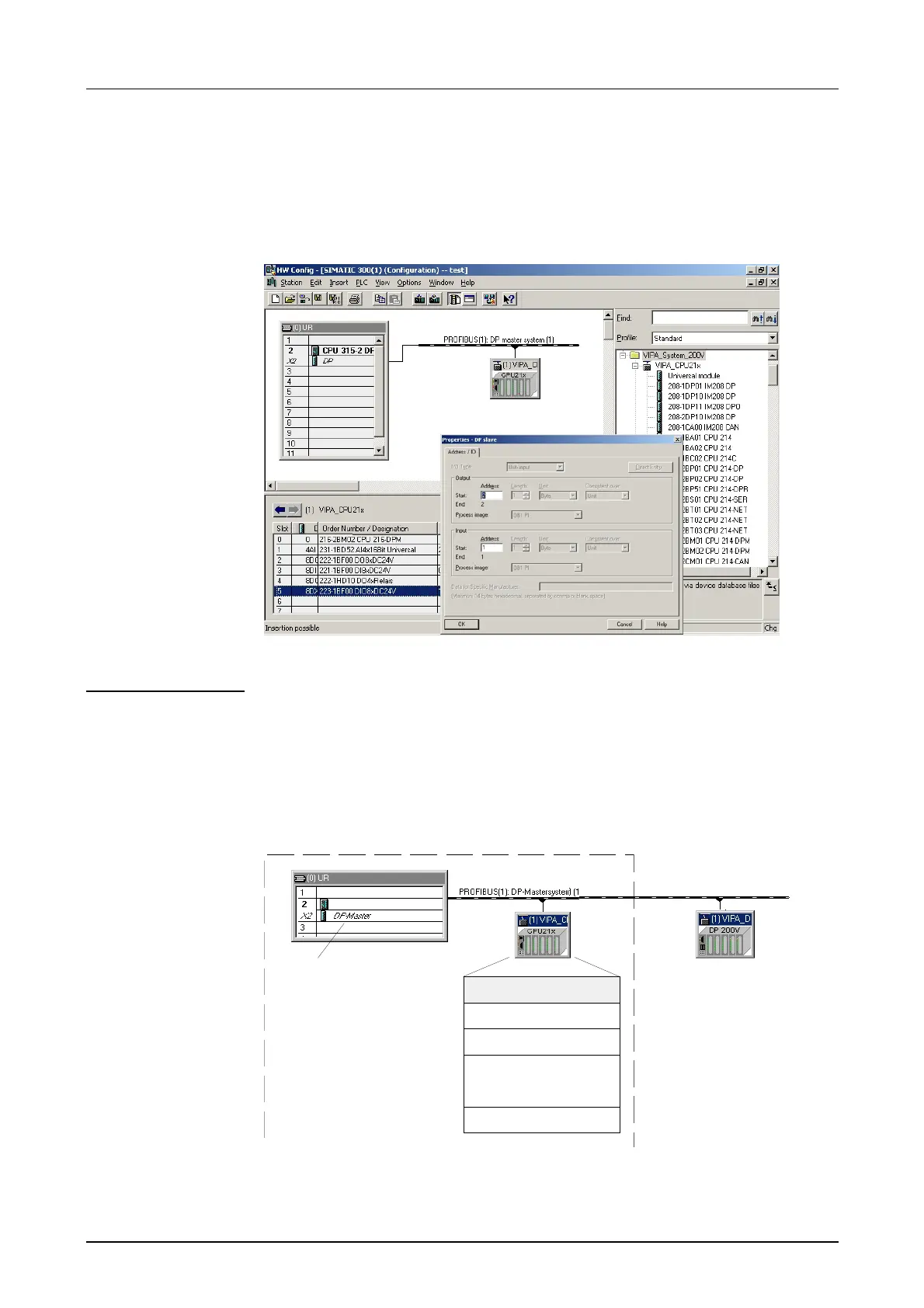

System 200V modules may get up to 16Byte parameter data from the
CPU. Using the SIMATIC manager from Siemens, you may assign
parameters for parameterizable System 200V modules at any time.
For this purpose double-click in the plug-in location overview on the
concerning module.
For the project engineering of Profibus-DP slaves coupled at the DP
master of the CPU 21xDPM, you approach analog to the DP200V system.
Search the concerning Profibus-DP slave in the hardware catalog and
drag&drop it in the subnet of your master.
Assign a valid Profibus address to the DP slave (> 3).
CPU 21xDPM central
DP-Slaves decentral ...
PB-
Addr.:1
PB-
ddr.:3 ... 125
PB-
Addr.:2
DP200V
315-2DP (2AF03-0AB0)315-2DP (2AF03-0AB0)
centralized periphery
.
.
.
centralized periphery
CPU 21x-2BM02
Module
Parameterize
modules
Configure
DP-Slaves
