Manual VIPA CPU 21x Chapter 7 Deployment of the CPU 21xDP
HB103E - Rev. 05/45 7-9
• Create a new System 300 project and add a profile rail from the
hardware catalog.
• Add the CPU 315-2DP (6ES7 315-3AF03-0AB0). You find the CPU with
Profibus master in the hardware catalog under: Simatic > CPU-300 >
CPU 315-2DP > 6ES7 315-3AF03-0AB0 V1.2.
• Assign the Profibus address 2 to your master.
• Click at DP and select the operating mode "DP master" under Object
properties. Confirm your entry with OK.
• By clicking on "DP" with the right mouse button, the context menu
opens. Choose "Add master system". Create a new Profibus subnet via
NEW.

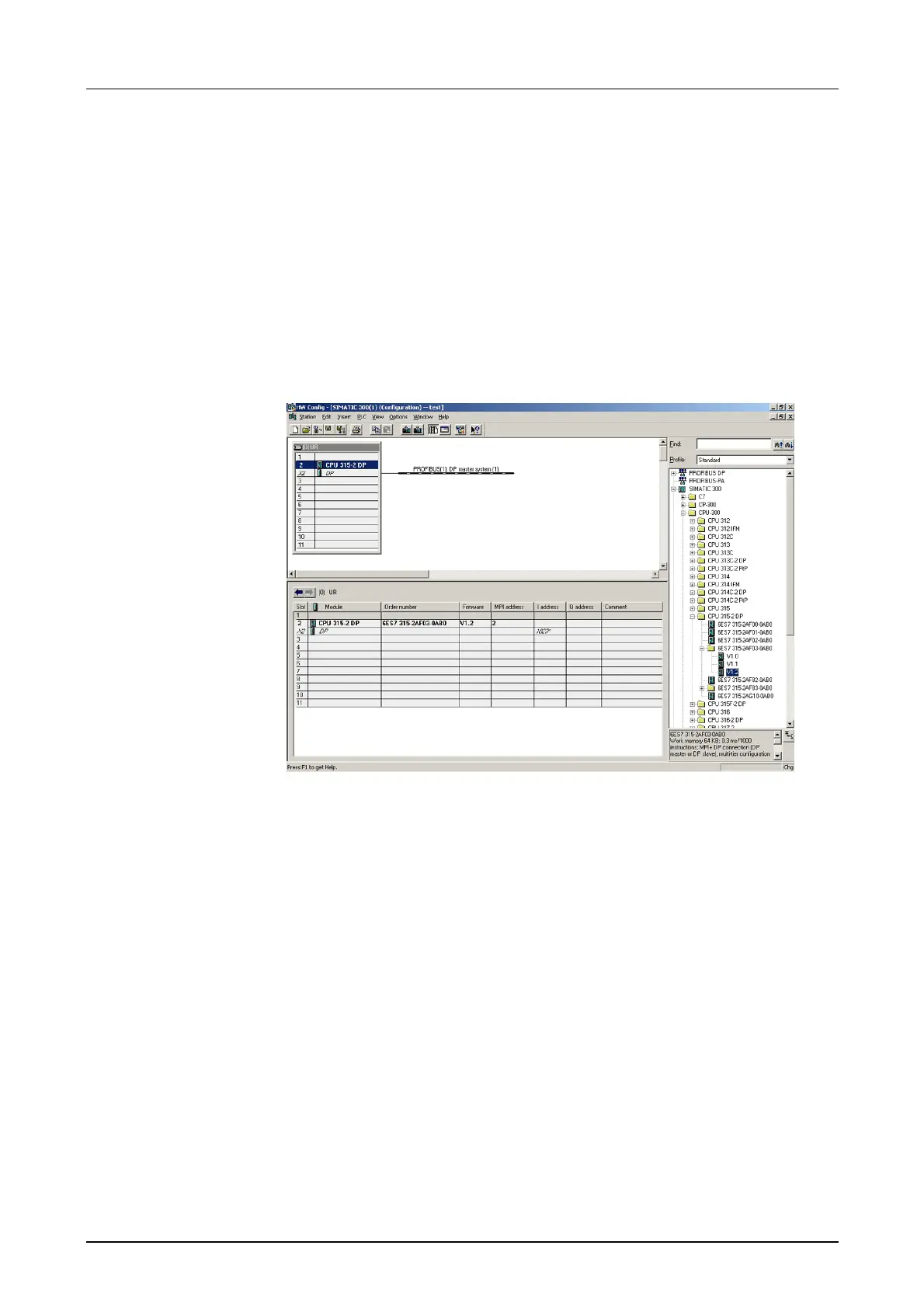

The following picture shows the created master system:
To be compatible with the SIMATIC manager from Siemens you have to
include the CPU 21xDP explicitly like mentioned above.
• Add the System "VIPA_CPU21x" to your subnet. The module is to find
under PROFIBUS-DP > Additional Field devices > I/O >
VIPA_System_200V. Assign the Profibus address 1 to the DP slave.
• Place the CPU 21x-2BP02 from VIPA at the 1
st
slot of the hardware
configurator.
• You may fix the data areas of the Profibus section in the CPU parameter
window. More details are under "Include Profibus section".
• Include your System 200V modules in the assembled order.
• If there is a DP master at the backplane bus, you have to include this at
the concerning plug-in location, too. Here the configuration takes place
via WinNCS from VIPA.
• Save your project and transfer it via MPI to the CPU 21xDP.
Please regard the hints in chapter "Principles"!
Create a virtual
Profibus system
Project engineering
CPU 21xDP and
modules
