Manual VIPA CPU 21x Chapter 7 Deployment of the CPU 21xDP
HB103E - Rev. 05/45 7-23
In systems with more than two stations all partners are wired in parallel.
For that purpose, the bus cable must be feed-through uninterrupted.

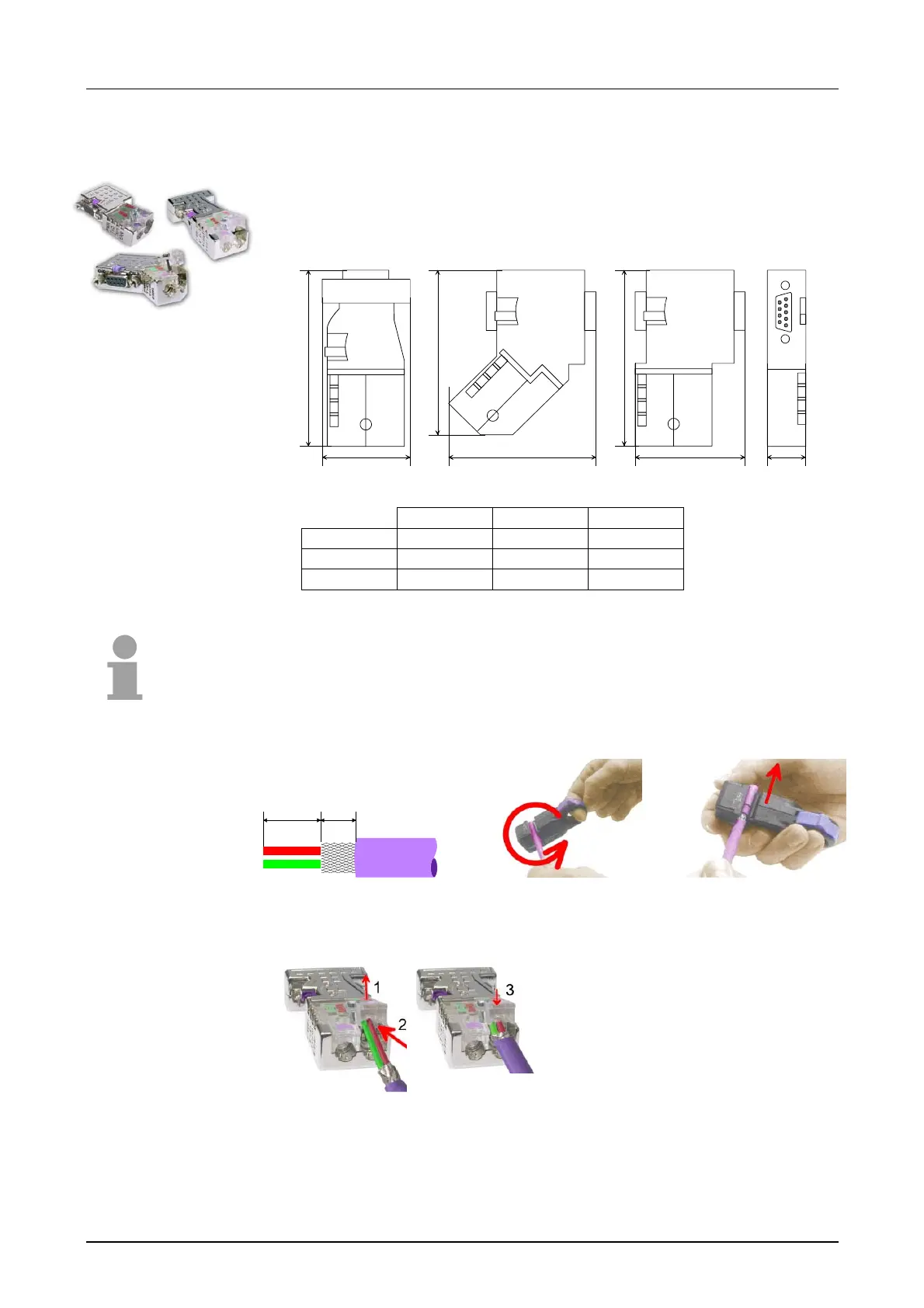

Via the order number VIPA 972-0DP10 you may order the bus connector
"EasyConn". This is a bus connector with switchable terminating resistor
and integrated bus diagnostic.
C
A
B
90°
A
B
0°
B
A
45°
0° 45° 90°
A 64 61 66
B 34 53 40
C 15,8 15,8 15,8
all in mm
Note!
To connect this plug, please use the standard Profibus cable type A with
solid wire core according to EN50170.
Under the order no. 905-6AA00 VIPA offers the "EasyStrip" de-isolating
tool, that makes the connection of the EasyConn much easier.
Connecting the profibus cable
• Loosen the screw
• Lift contact-cover
• Insert both wires into the ducts provided
(watch for the correct line color as below!)
• Please take care not to cause a short
circuit between screen and data lines!
• Close the contact cover
• Tighten screw
(
max. tightening torque 4NM)
the green line must be connected to A, the red line to B!
Bus connector
Please note:
11 6
all in mm
