To be compatible to the SIMATIC manager from Siemens, you have to
execute the following steps for the System 200V:

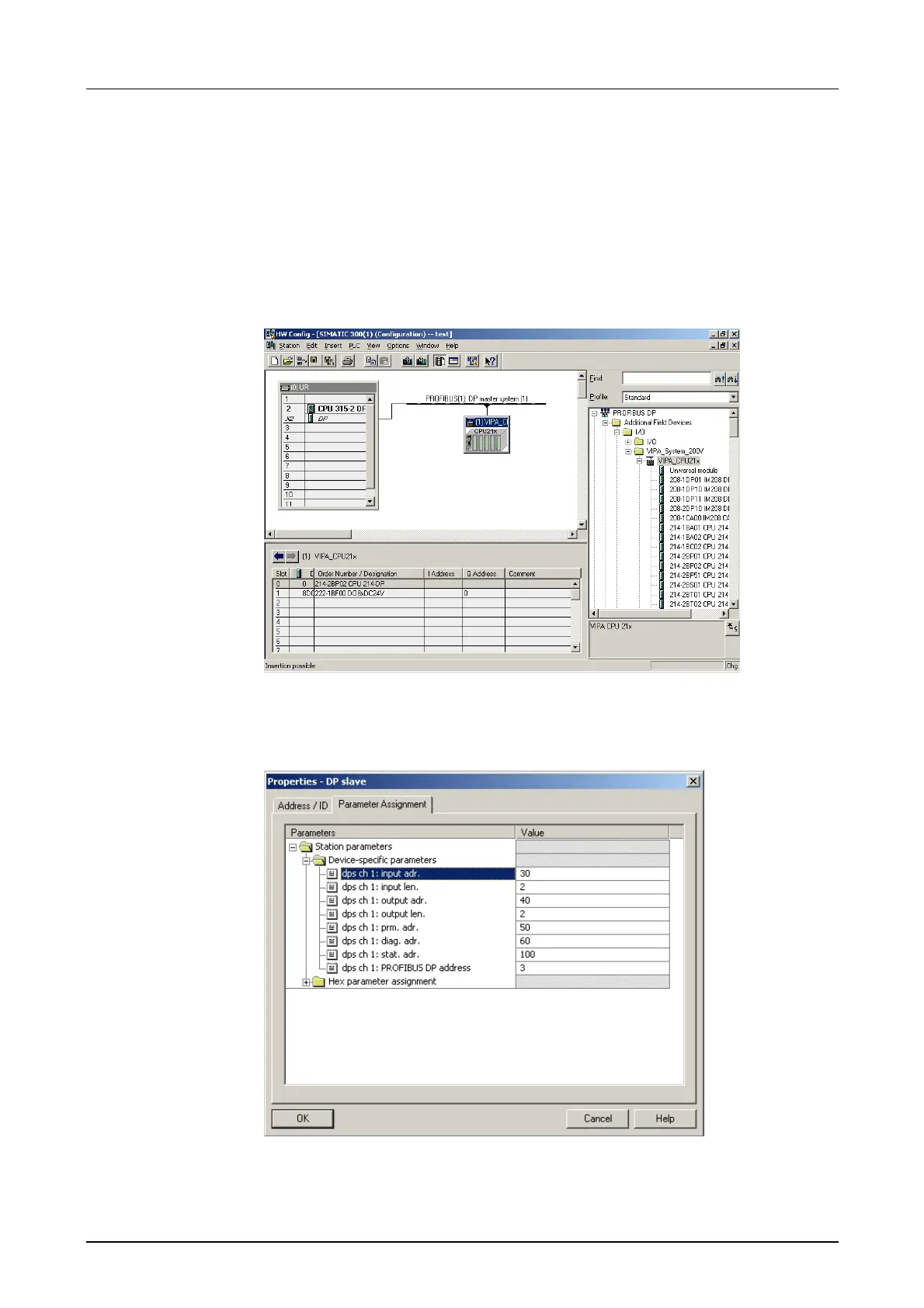

• Start the hardware configurator from Siemens.
• Configure a CPU 315-2DP with DP master system (address 2).
• Add a Profibus slave "VIPA_CPU21x" at address 1.
• Include the CPU 214-2BP02 at the 1
st
slot of the slave system.
• Include at the next slot the output module 222-1BF00.
• Choose the following parameters in the parameter window of the
CPU 214-2BP02:
• Save your project.
Configuration
CPU 21xDP
