WinCoCT (Windows CANopen Configuration Tool is a configuration tool
developed from VIPA to allow the comfortable project engineering of
CANopen networks.

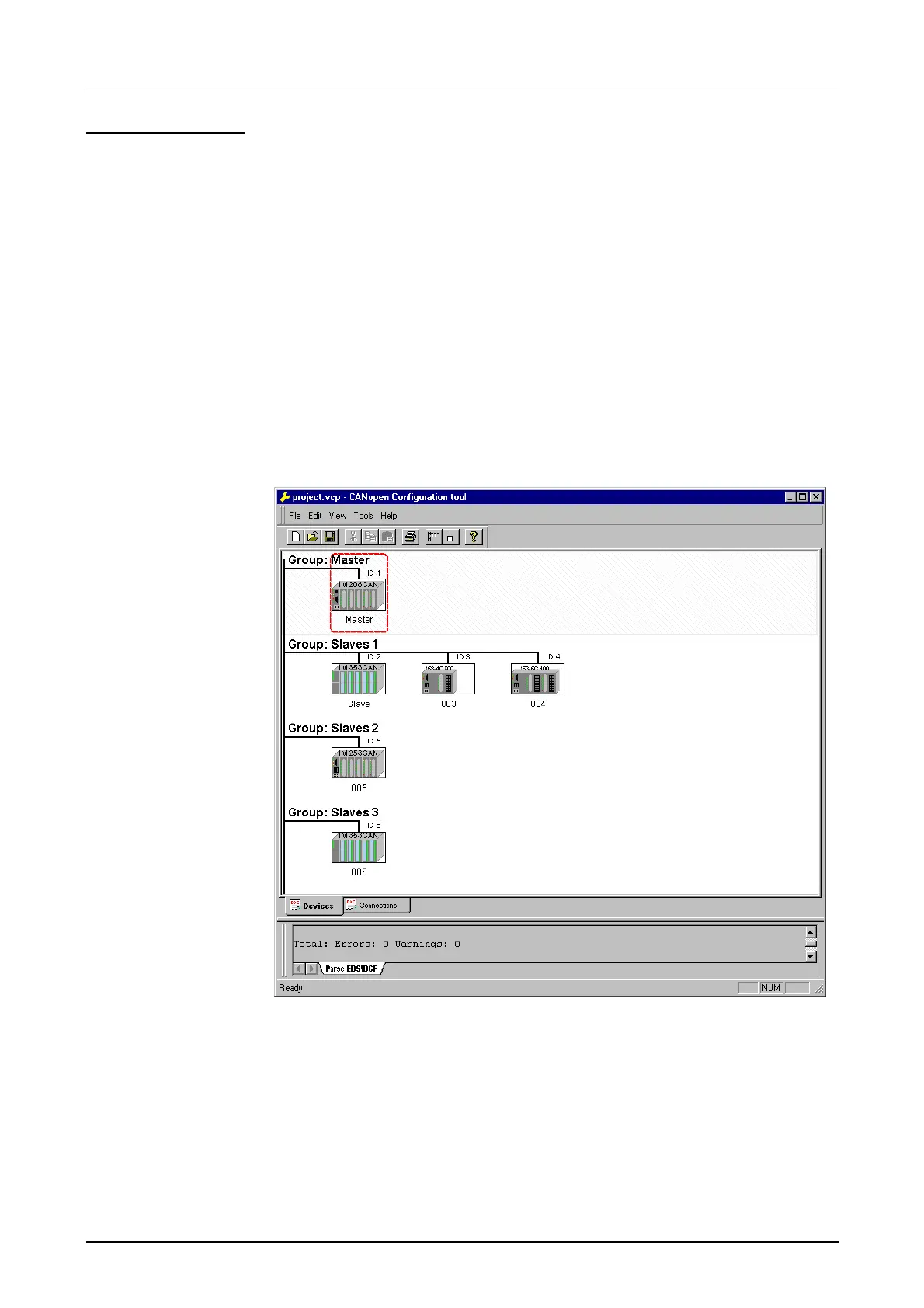

WinCoCT monitors the CANopen network topology in a graphical user
interface. Here you may place, parameterize and group field devices and
controls and engineer connections.
The selection of the devices happens via a list that can be extended for
your needs with an EDS-file (Electronic Data Sheet) at any time.
A right click onto a device opens a context menu consisting partly of static
and partly of dynamic components.
For the configuration of the process data exchange, all process data are
monitored in a matrix with the device inputs as rows and the device outputs
as columns. Mark a cross point to create the wanted connection.
The telegram collection and optimization is executed by WinCoCT.
