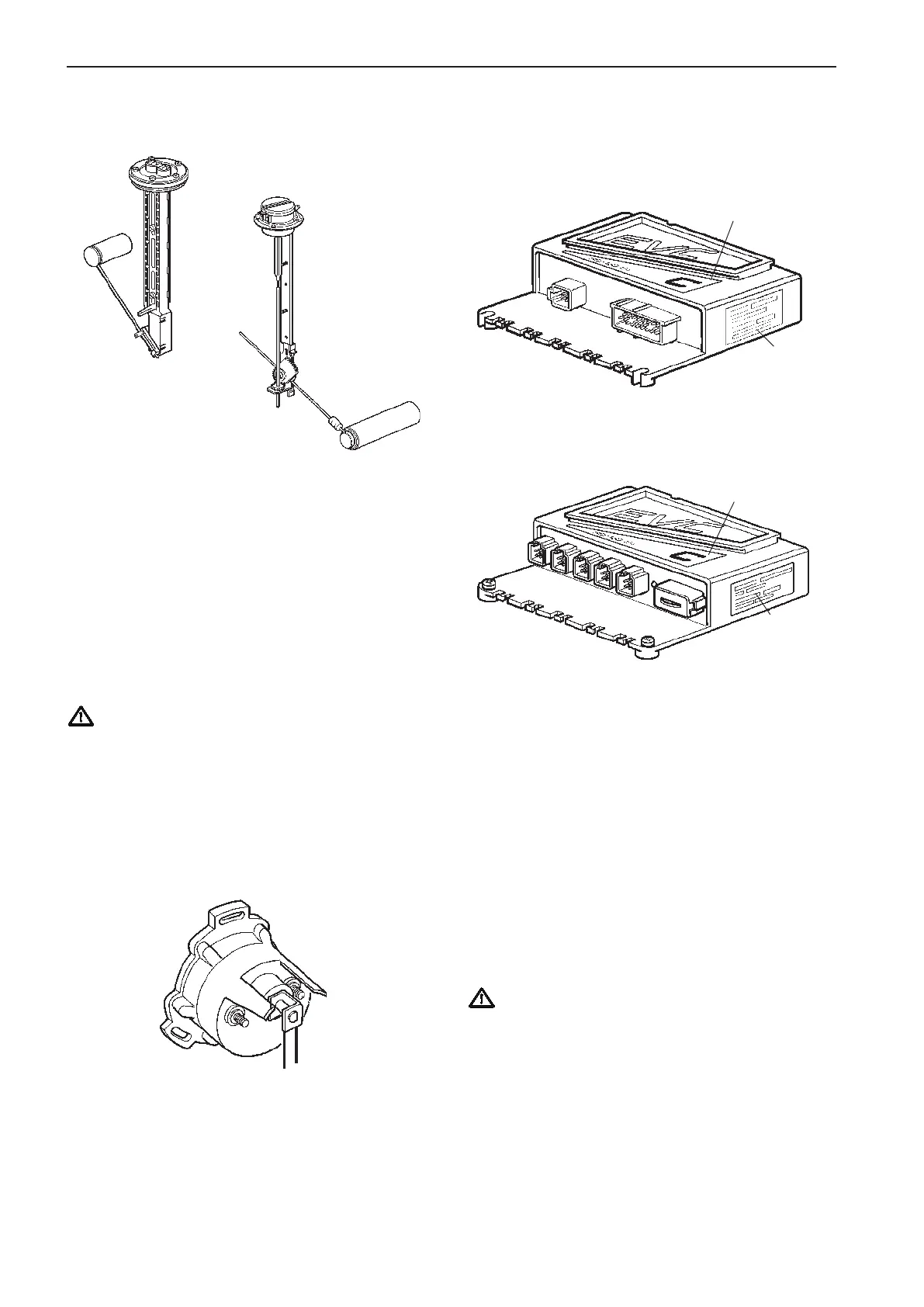

Powertrain control unit,
PCU
Helm station control unit,
HCU
The PCU node is to be located in the engine room.
The PCU communicates with the engine and with the
drive or the reverse gear. It also communicates with
the helm station control unit HCU, via the standard
bus cable.
The HCU node is to be located close to the helm and
the components that it controls. It communicates with
the PCU via the standard bus cable.
The HCU is equipped with a LED (STATUS). When
installed the LED is flashing quickly when power
is on and is off when power is off. Connector X8 is
plugged.
IMPORTANT! On the PCU and HCU there is a
label (1), with serial no. and chassis identifica-
tion. There are also corresponding labels on the
engine. The reason for having individually pro-
grammed PCU:s and HCU:s is that the software
must correspond to each engine specification or
helm specification (equipment and functionality).
Please refer to chapter Identification of the PCU
and the HCU.
Fuel level sender and fresh
water level sender
The fuel and water tank levels can be displayed on
the EVC display or in separate instruments.
Level sender suitable for tanks with a height of max.
600 mm (23").
Fuel level sender resistance (two types):
3 –180 ohms, 3 ohms = empty tank
240 –30 ohms, 240 ohms = empty tank
Fresh water level sender resistance:
3 –180 ohms, 3 ohms = empty tank
IMPORTANT! The fresh water sender potenti-
meter is protected against corrosion. Make sure
to use the right type of sender.
Rudder angle sensor
The rudder angle sensor, 3–180 ohms, is connected
to the EVC system through the engine/transmission
cable harness. A special instrument or display on the
dashboard shows the rudder angle.
HCU
Length 160 mm (6.3 ")
Width 180 mm (7.1 ")
Heigth 65 mm (2.6 ")
1
Label
EVC-C version
Length 160 mm (6.3 ")
Width 180 mm (7.1 ")
Heigth 65 mm (2.6 ")
1
PCU
Label
EVC-C version
Fresh water
level sender
Fuel
level sender
22
Major components EVC-C
