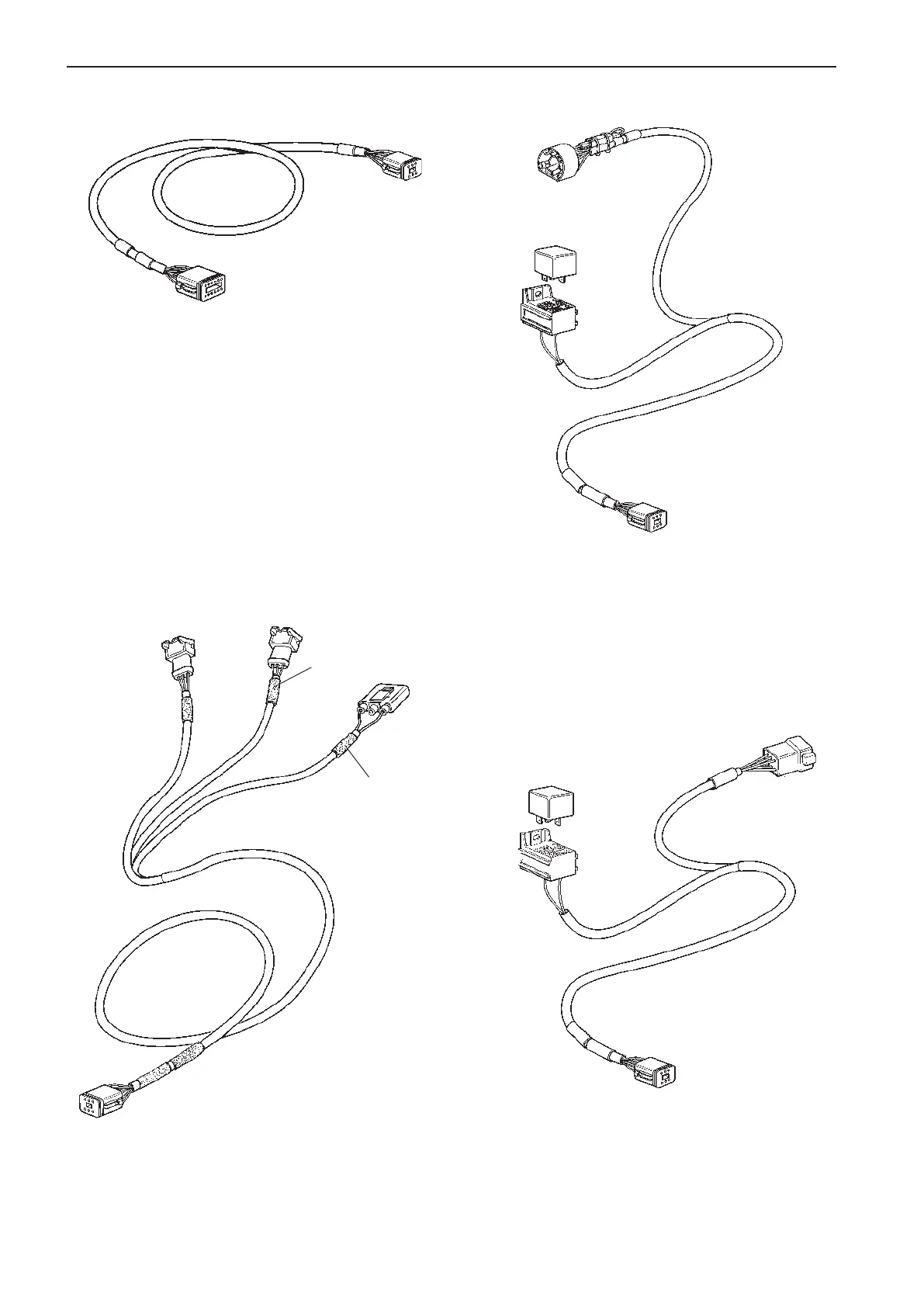

Key switch and relay cable, 6-pin
Control lever cable, 6-pin
Connects the control or the adapter for mechanical
controls to the HCU.
Length, m (ft): 1.5 (5)
Part No.
GEAR POT
THROTTLE POT
NEUTRAL SWITCH
CONN X7
Blue
Connects the key switch to the HCU. The relay to
external accessories, if used, should be connected to
the relay socket included in the cable.
Length, m (ft), connector–key: 1.5 (5)
Length, m (ft), connector–relay: 1.5 (5)
Start/stop panel and relay cable,
6-pin (option)
Display cable, 6-pin/12-pin
To connect the EVC System Display to the multilink
cable or the MULTILINK BREAKOUT on the Y-split
cable from connection X5 on the HCU.
Two female connectors
Length, m (ft): 1.5 (5)
This cable is used in combination with the Start/stop
panel and connects the panel and the relay socket to
the HCU. The relay to external accessories shall be
mounted on the relay socket.
Length, m (ft): 1.5 (5)
Relay
socket
Relay
CONN X4
Gray
Part No.
KEY
1.2 m (4 ft)
0.25 m (0.8 ft)
1.0 m (3 ft)
X5 MULTILINK
Yellow
DISPLAY
CONN.
Part No.
Part No.
KEY
CONN X4
Gray
Relay
socket
Relay
26
Major components EVC-C
