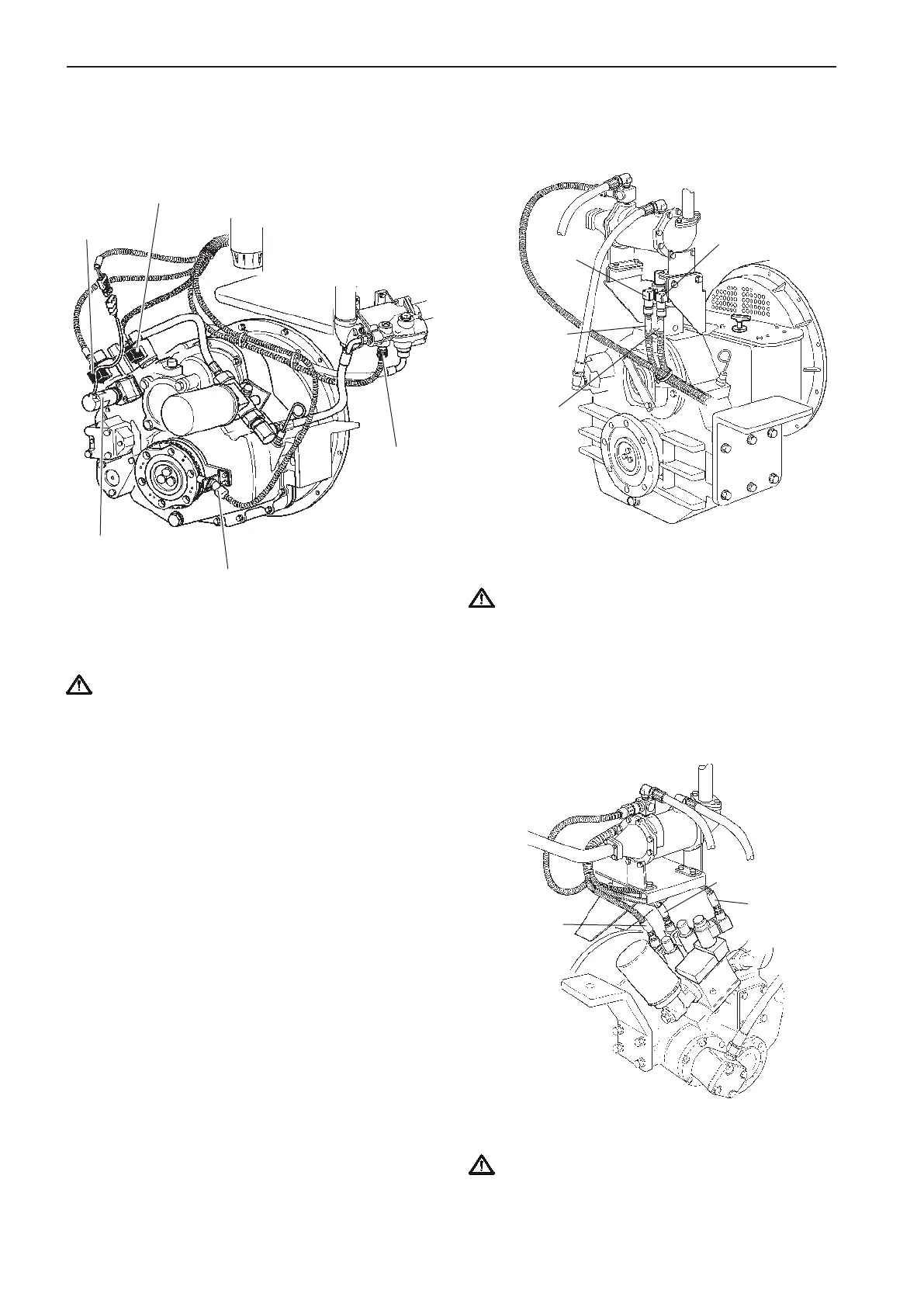

Volvo Penta EVC EC -C - Page 40

D9, D12DMP
Reverse gear
MG5065AE, MG5075AE, MG5075IVE
The figure shows reverse gear with cables connected
for left-hand rotation in forward gear.
IMPORTANT! Apply low temperature grease,
Volvo Penta part no. 1161417-9 in the solenoid
connectors prior to connection.
D9, D12DMP
Reverse gear
MG5114SCE/DCE
The figure shows reverse gear with cables connected
for left-hand rotation in forward gear.
IMPORTANT! Apply low temperature grease,
Volvo Penta part no. 1161417-9 in the solenoid
connectors prior to connection.
D12DMP
Reverse gear
ZF311, ZF325
The figure shows reverse gear with cables connected
for left-hand rotation in forward gear.
IMPORTANT! Apply low temperature grease,
Volvo Penta part no. 1161417-9 in the solenoid
connectors prior to connection.
Primary
valve
SECONDARY
PRIMARY
Oil temp/
pressure
sender
Secondary
valve
TROLLING
Oil temp/
pressure
sender
PRIMARY
SECONDARY
SECONDARY
PRIMARY
TROLLING
OIL TEMP
PRESSURE
REV. PICK-UP
