D16
Reverse gear
MG 5145A, MG 5170DCE

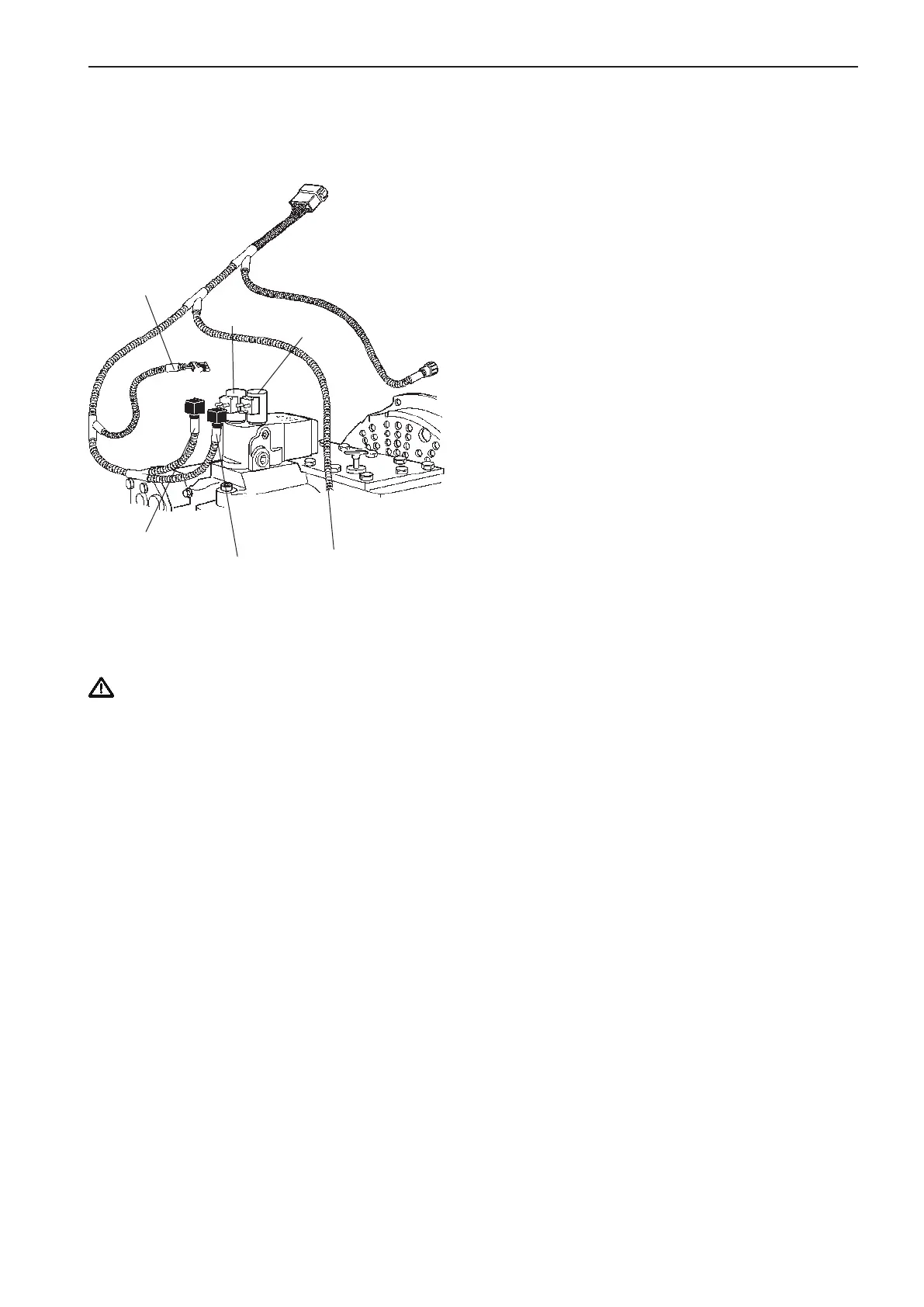

The figure shows reverse gear with cables connected
for left-hand rotation in forward gear.
IMPORTANT! Apply low temperature grease,
Volvo Penta part no. 1161417-9 in the solenoid
connectors prior to connection.
SECONDARY
PRIMARY
Secondary
valve
Primary
valve
Oil temp/
pressure
sender
REV. PICK-UP
(not used)
TROLLING
(not used)
