103.0 mm (4.06")
105 mm (4.13")
3.8 mm (0.15")
3.3 mm (0.13")
R599 mm R23.68")
64 mm (2.52")
3.0 mm (1.30")
4xR5.0 mm
(4xR0.20")

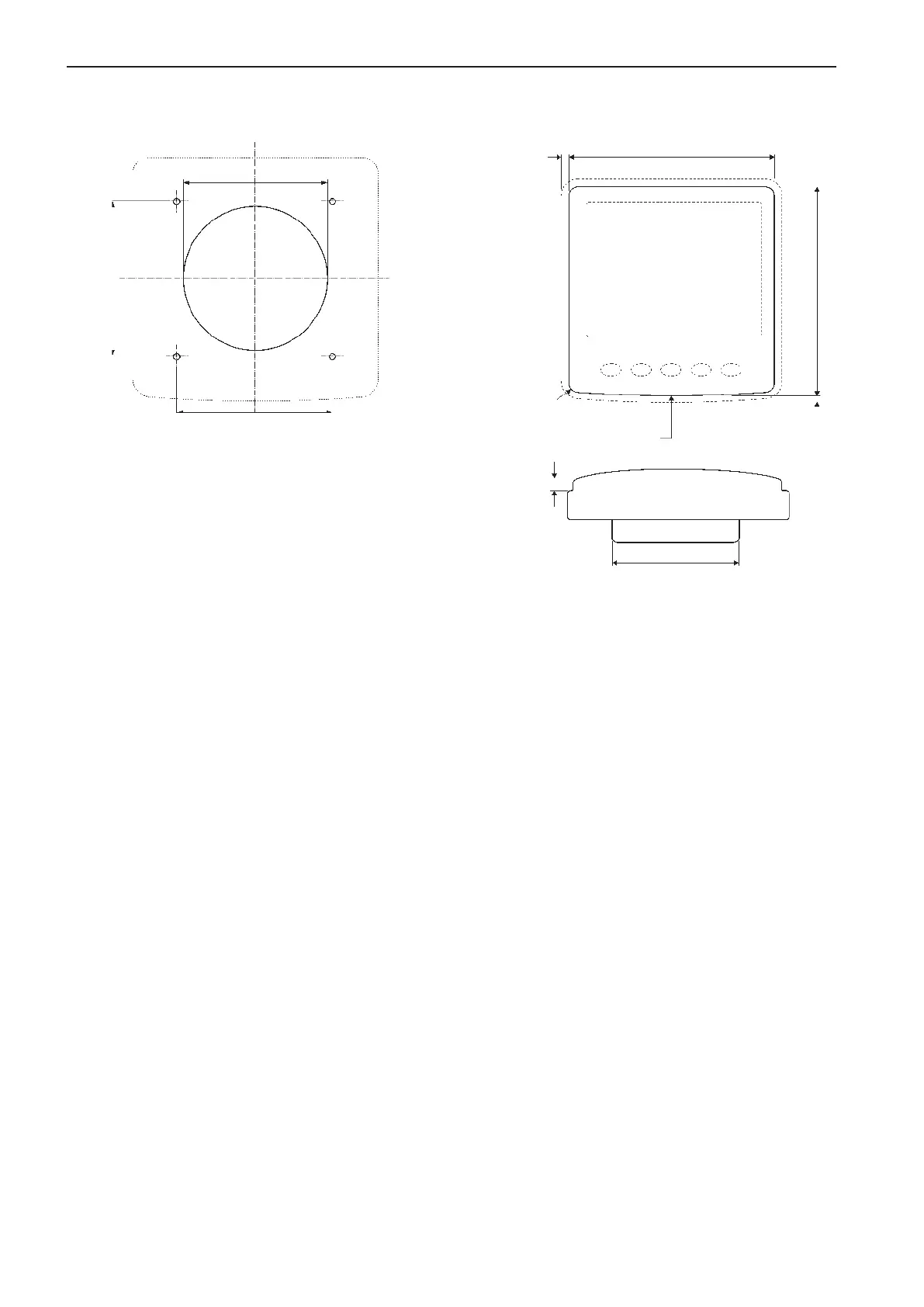

Mounting from above of dash board
Using the template as a guide, cut out the hole for
the rear side with a diameter of 65 mm (2.6") and drill
the four Ø 4.3 mm (0.17") holes for the studs.
Screw the four studs into the rear case. Longer M4
studs (not supplied) can be used if required.
Connect the cable to the rear of the unit.
Put the unit into position, then secure it by screwing
the thumb nuts onto the studs.
Flush-mounted display
Make a hole for the display using the template en-
closed with the installation kits. Use tailor made fit-
tings. Also refer to the Templates for controls and
panels chapter .
The insert depth is 3 mm (0.12") .
70 mm 2.75")
70 mm 2.75")
64 mm 2.50")
64
Installation procedure, helm EVC-C
