Connection
Single installation

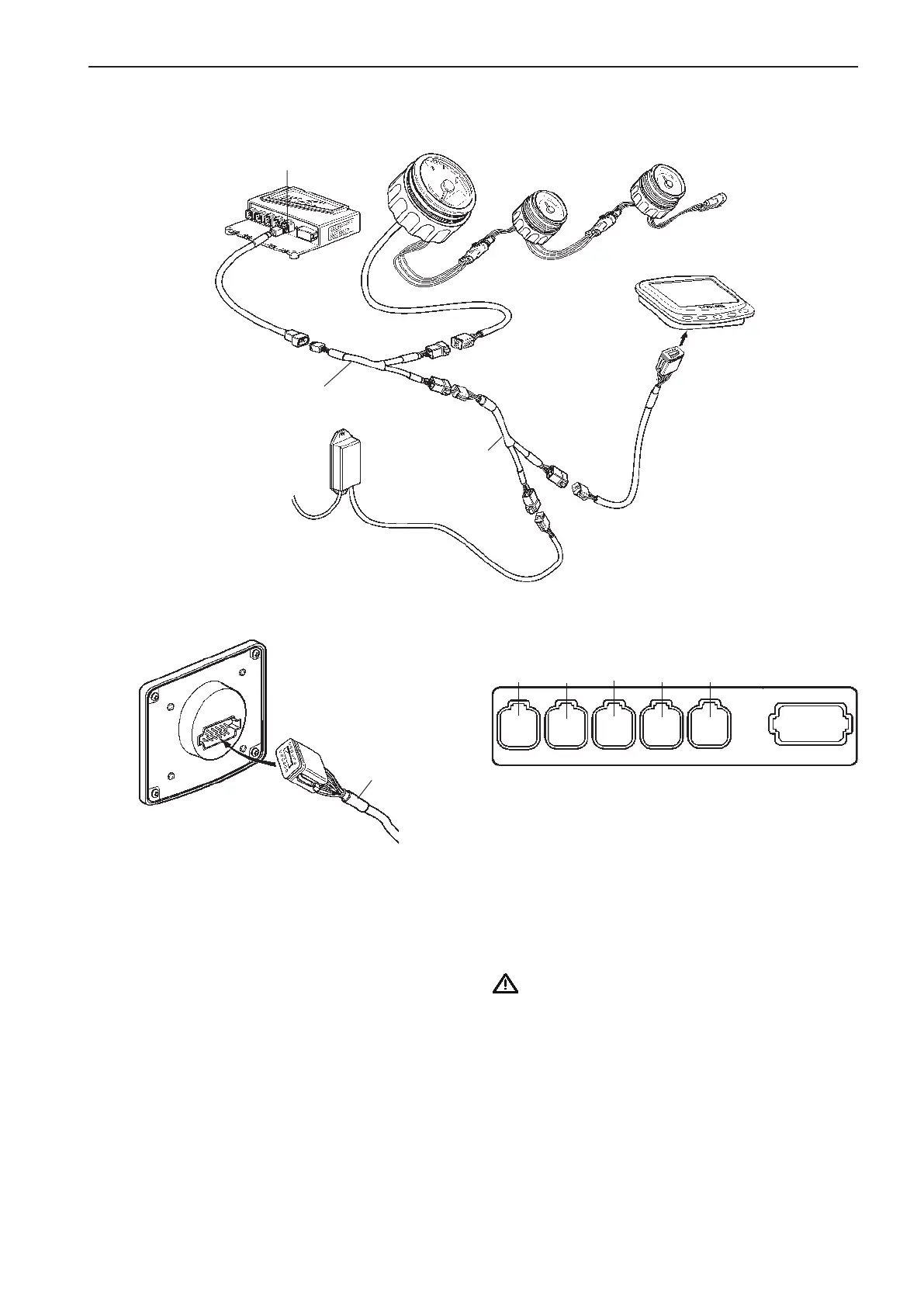

Figure shows a single engine installation with Y-split
cable and equipment.
Connect the Y-split socket to HCU X5 connector.
NOTE! In a single installation an EVC display or
equipment such as an NMEA interface or a multisen-
sor can be connected on either the MULTILINK or
the MULTILINK BREAKOUT connector.
IMPORTANT! A MULTILINK BREAKOUT con-
nection should never be left open (not connect-
ed). In such a case, disconnect the Y-split cable.
HCU
EVC
display
NMEA
interface
Y-split cable
Y-split cable
X5
DISPLAY
CONN.
MULTILINK
Yellow
MULTILINK
BREAKOUT
Instruments
Extension
cable
(if needed)
EVC System
Tachometer
DISPLAY
CONN.
X5:MULTILINKX2:DATALINK X3:AUX
X4:KEY
Green
Yellow
Pink
Gray Blue
X7:CONTROLS
X8:NOT USED
65
EVC-C Installation procedure, helm
