Controls, electronic
Side mounted
Standard mounting

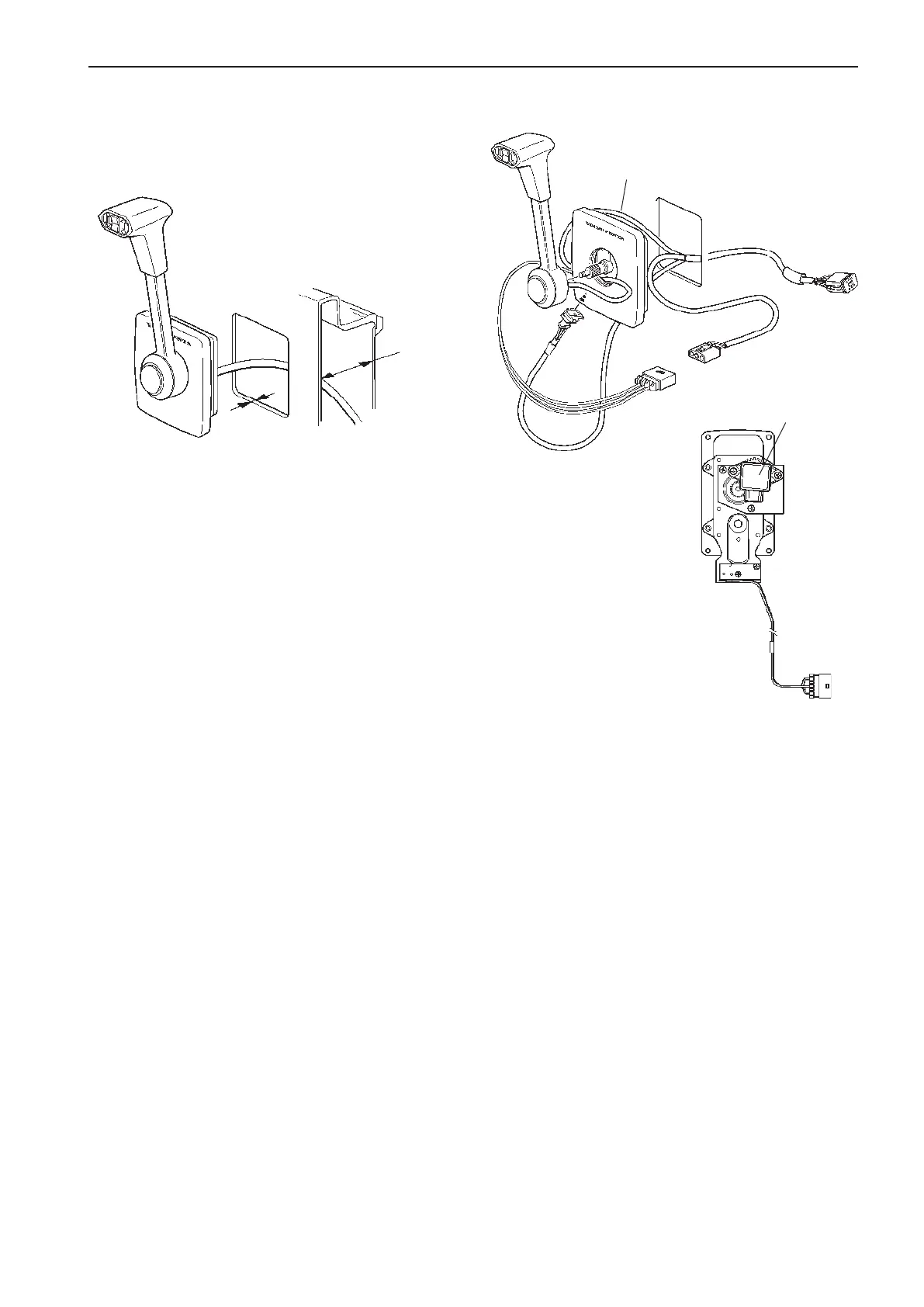

Make holes in the bulkhead according to template.
Please refer to the Templates for controls and pan-
els chapter.
Maximum bulkhead thickness: 10 mm (3/8").
Minimum space inside bulkhead: 100 mm (4").
THROTTLE
POT.
CONN X7
Blue
Cable,
Powertrim control
NEUTRAL
SWITCH
NEUTRAL
SWITCH
Potentiometer
Control including Powertrim function
Route the cable harness and connectors through the
holes in the plastic cover, the mounting plate and the
bulkhead.
Connect the connector marked “THROTTLE POT.” to
the potentiometer on rear of the mounting plate.
Fit the connector marked NEUTRAL SWITCH to the
pig tail.
Fit the mounting plate on the bulkhead using four
screws. Install the cover and the shift lever.
Connect the cable marked CONN X7 to the HCU X7
connection (blue).
Max.
10 mm (3/8")
Min.
100 mm (4")
73
EVC-C Installation procedure, helm
