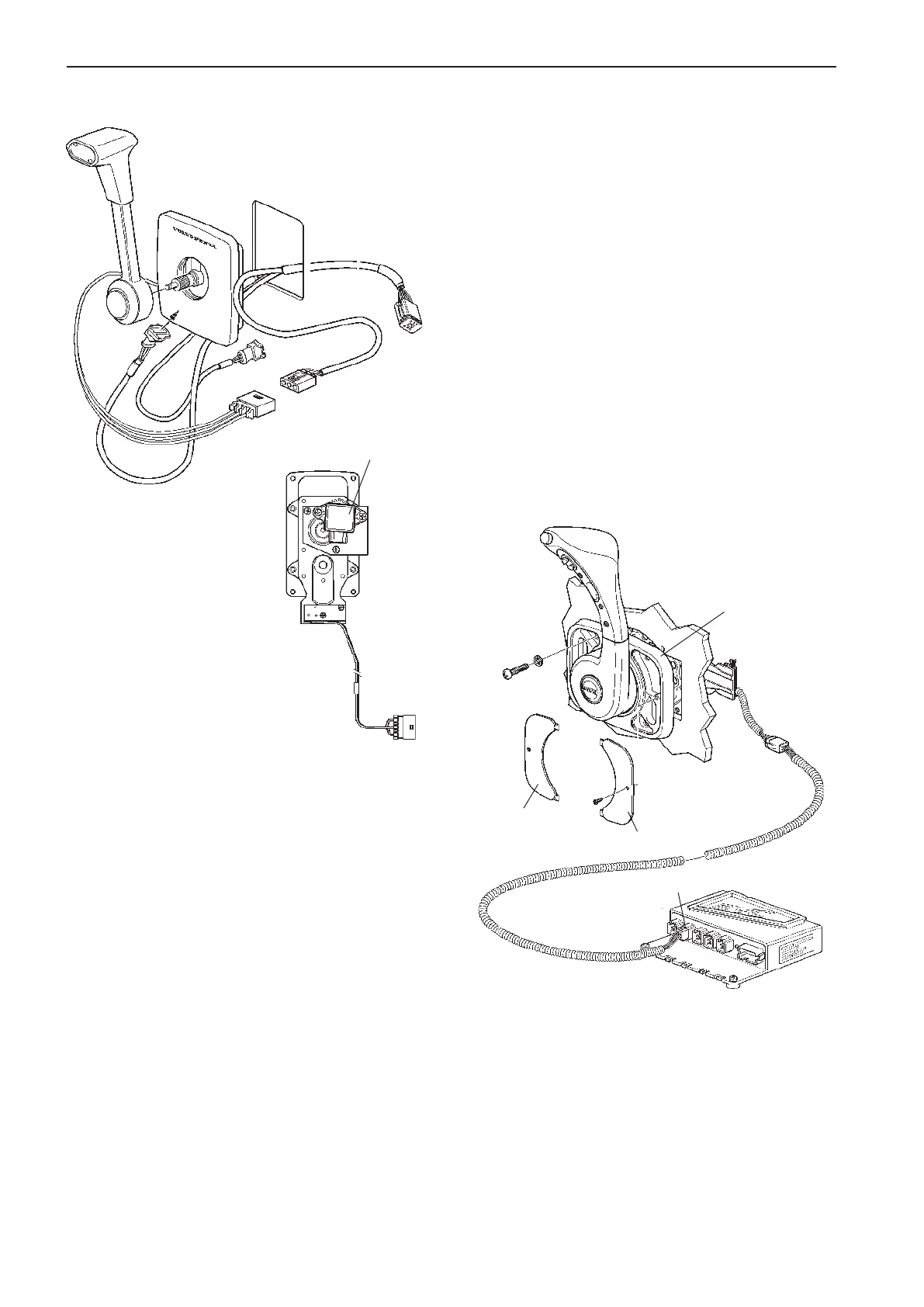

Control without Powertrim function
Route the cable through the hole in the the bulkhead.
Connect the connector marked “THROTTLE POT.”
to the potentiometer on rear of the control. The other
connectors are clamped to the harness.
Fit the connector marked NEUTRAL SWITCH to the
pig tail.
Fit the mounting plate on the bulkhead using four
screws. Install the cover and the shift lever.
Connect the cable marked CONN X7 to the HCU X7
connection (blue).
THROTTLE
POT.
CONN X7
Blue
NEUTRAL
SWITCH
NEUTRAL
SWITCH
Potentiometer
Controls, electronic
Side mounted, type XACT
Control including Powertrim function
Make holes in the bulkhead according to template.
Please refer to the Templates for controls and pan-
els chapter.
Maximum bulkhead thickness: 19 mm (3/4").
Minimum space inside bulkhead: 90 mm (3 1/2").
Choose a mounting location for the control mecha-
nism that will provide comfortable operation and
unobstructed movement of the Control lever (forward
and reverse positions). Check that the control mecha-
nisme have sufficient space behind the panel.
Make a hole for the control mechanism and drill
screw holes using the scaled mounting template.
Please refer to the Templates for controls and pan-
els chapter.
Insert the control assembly through the hole.
Fix the control mechanism and front cover with wash-
ers and screws. Please refer to figure.
Fix the covers with screws.
Connect the cable from the control assembly to the
HCU connector X7 (blue).
Calibrate the control lever. Please refer to chapter
Calibration.
Front cover
Cover
Cover
CONN X7
blue
74
Installation procedure, helm EVC-C
