Wacker Neuson RD40 User Manual

Auxiliary equipment
ROPS cab
BA RD40_RD45 en 00
195
Ventilation position
Pull the handle [1] up to release cam II from the lock [2].
Open the window slightly until cam I is underneath the lock [2].
Push the handle [1] down to lock cam I.
a
The window is opened in the ventilation position.
Closing the window
Pull the handle [1] up.
Raise the window until cam II is underneath the lock [2].
Push the handle [1] down to lock cam II.
a
The window is closed and locked.
Opening the window fully
Pull the handle [1] up to release cam I or II from the lock [2].
Push the window all the way outwards.
a
The window is open but not locked in the open position.

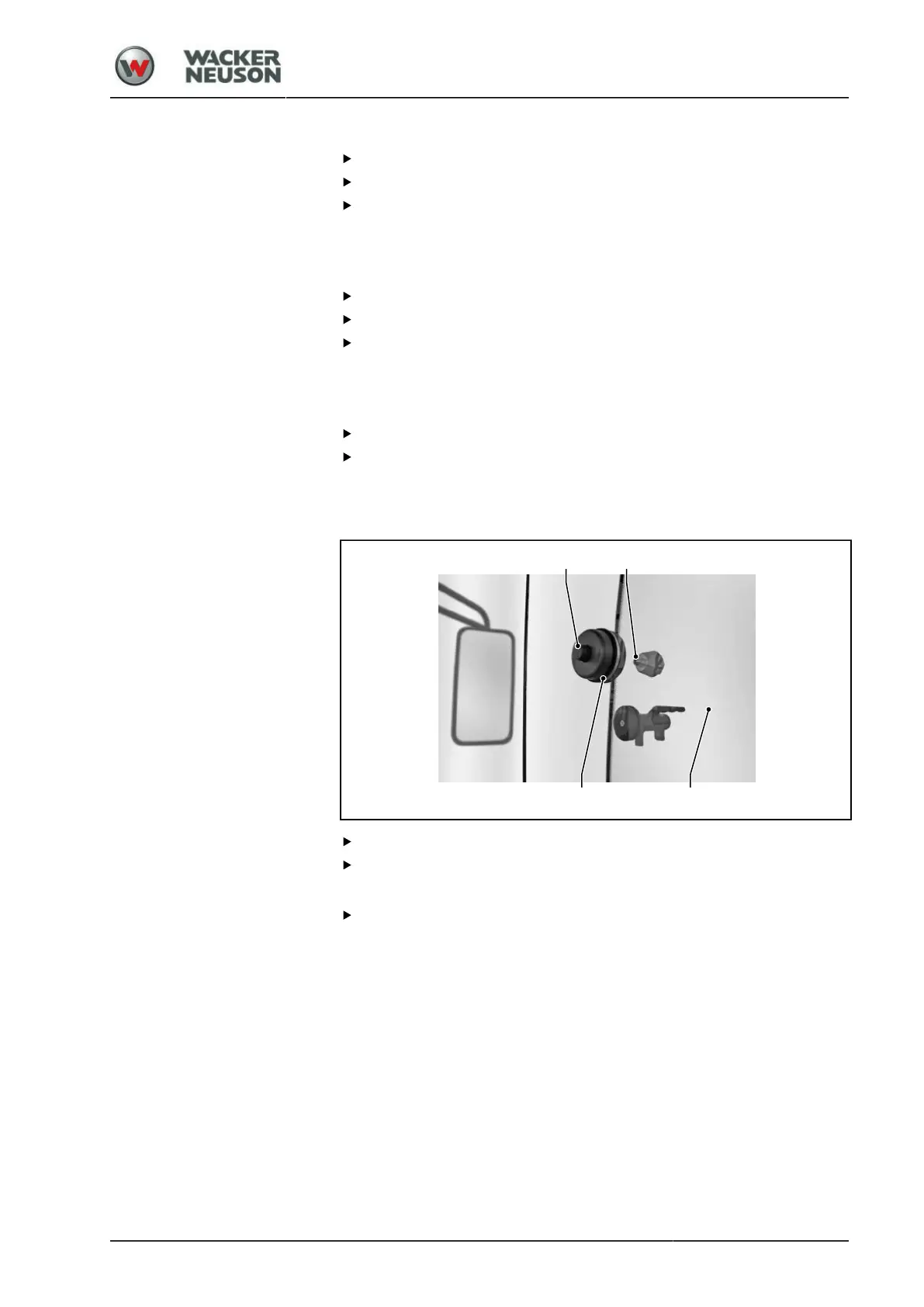

Locking and releasing the window
3
1
4 2
Open the window [1] fully and tilt it forwards by 180°.
Let the cam [2] engage in the bushing [3].
a
The window is fully open and locked.
Press the push-button [4].
a
The lock is released.
a
The window can be tilted back and closed.
