Work light, rotating beacon and cab lighting

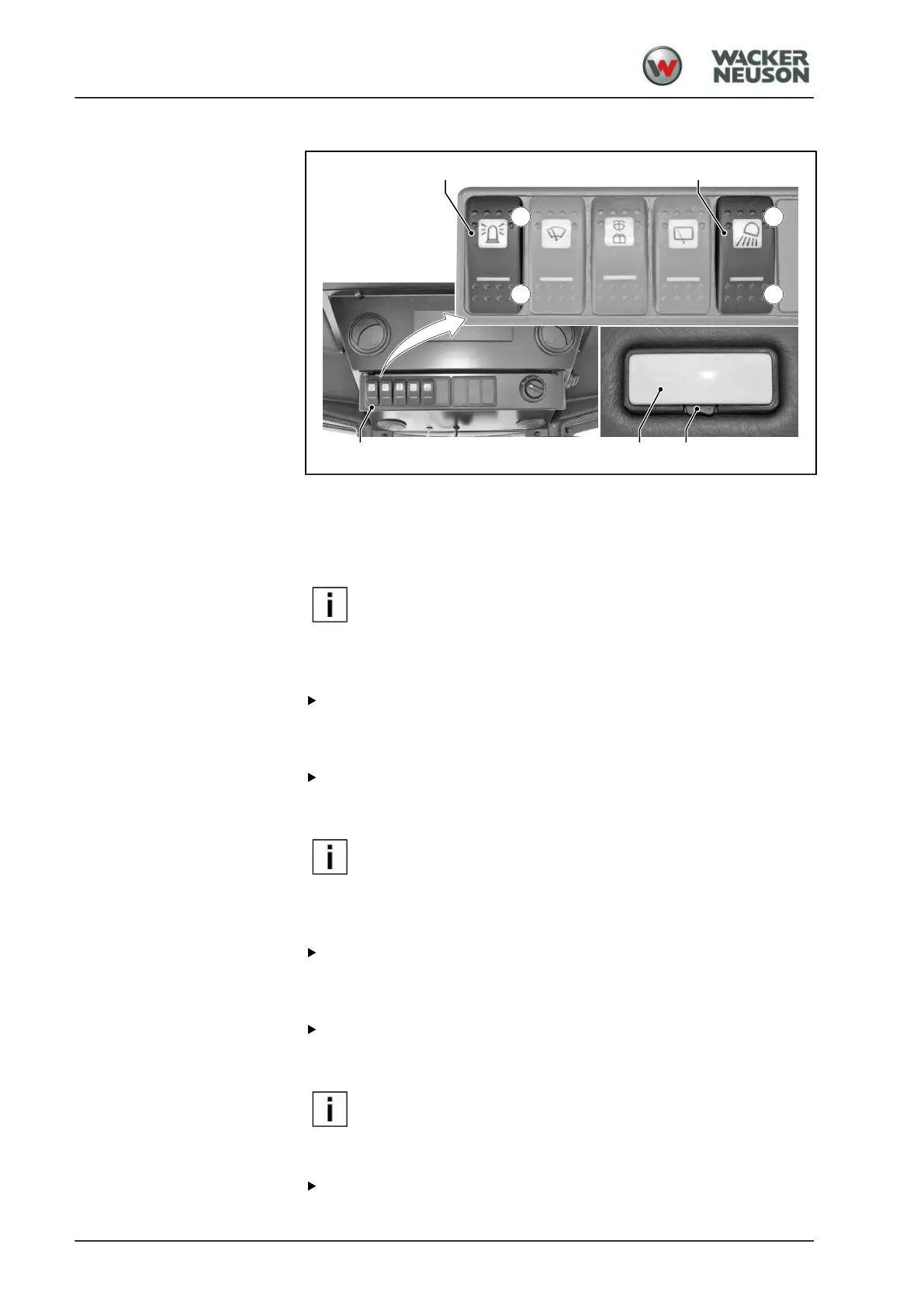

The work light and rotating beacon are operated from the switch unit [1].
Prerequisite: Electrical system is ON.
The cab light [4] is located above the right-hand cab door.
It can still be switched on when the electrical system is switched off.
When the lights are set to on for a longer period of time
although the engine is stopped, the battery will be discharged
quickly.
Switching the work light on and off
Switch [2] in position I:
a
The work light is switched on.
a
The switch [2] lights up.
Switch [2] in position 0:
a
The work light is switched off.
For versions with the ROPS cab, the work light switch on the
control panel is only used to switch the drum edge lighting on
and off.
Switching the rotating beacon on and off
Switch [3] in position I:
a
The rotating beacon is switched on.
a
The switch [3] lights up.
Switch [3] in position 0:
a
The rotating beacon is switched off.
For versions with the ROPS cab, the rotating beacon switch on
the control panel has no function.
Switching the cab lighting on and off
Push the switch [5] upwards on one side.
