Miscellaneous—Carrier

ContinuedonnextpageAM24480,00001A6-19-26SEP14-5/6

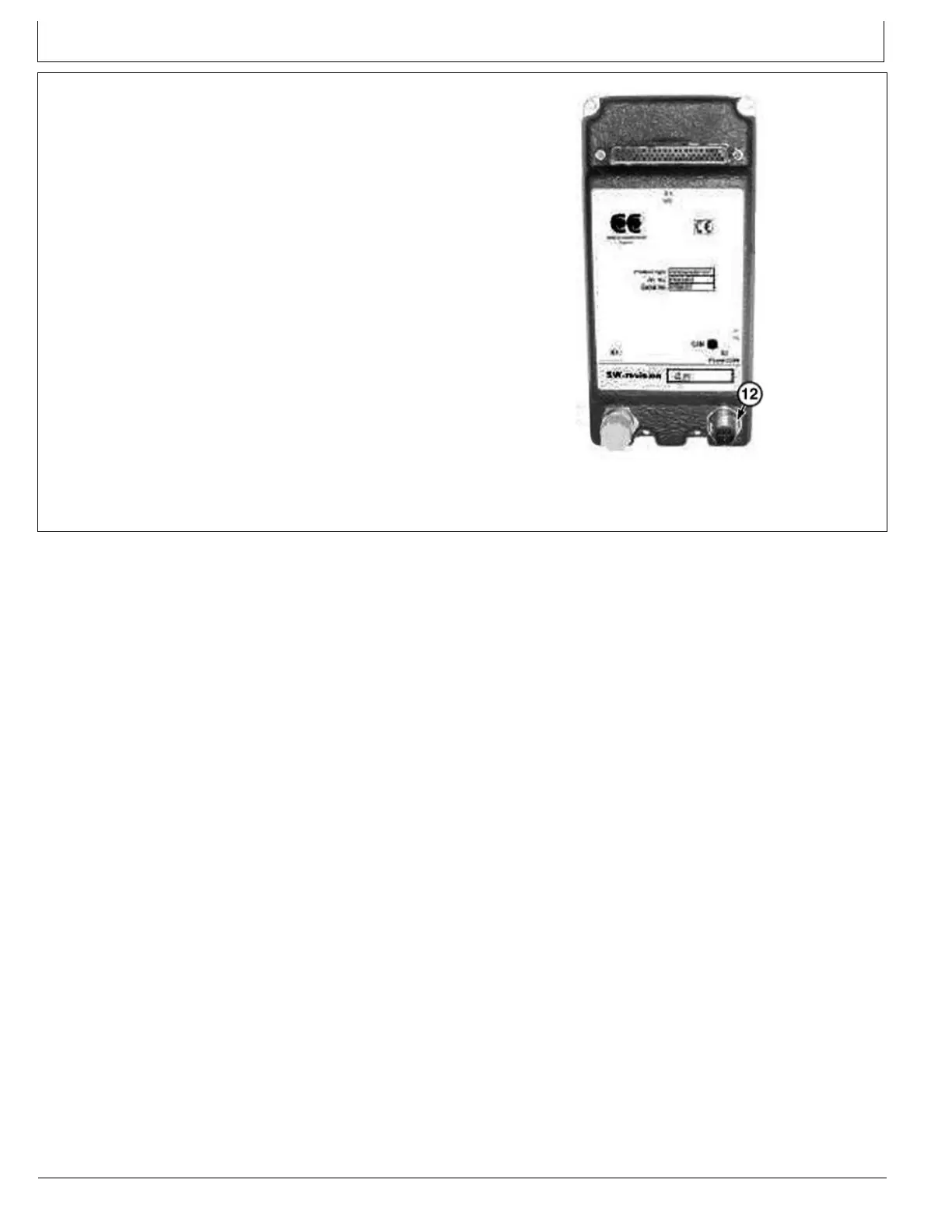

10.Disconnecttheinterfacemoduleconnector(12)onthe

Danfoss™interfacemodule.

12—InterfaceModule

Connector

TX1059031A—UN—04MAY09

DanfossInterfaceModule

DanfossisatrademarkofSauerDanfossInc.

4-1-5

053122

PN=84
