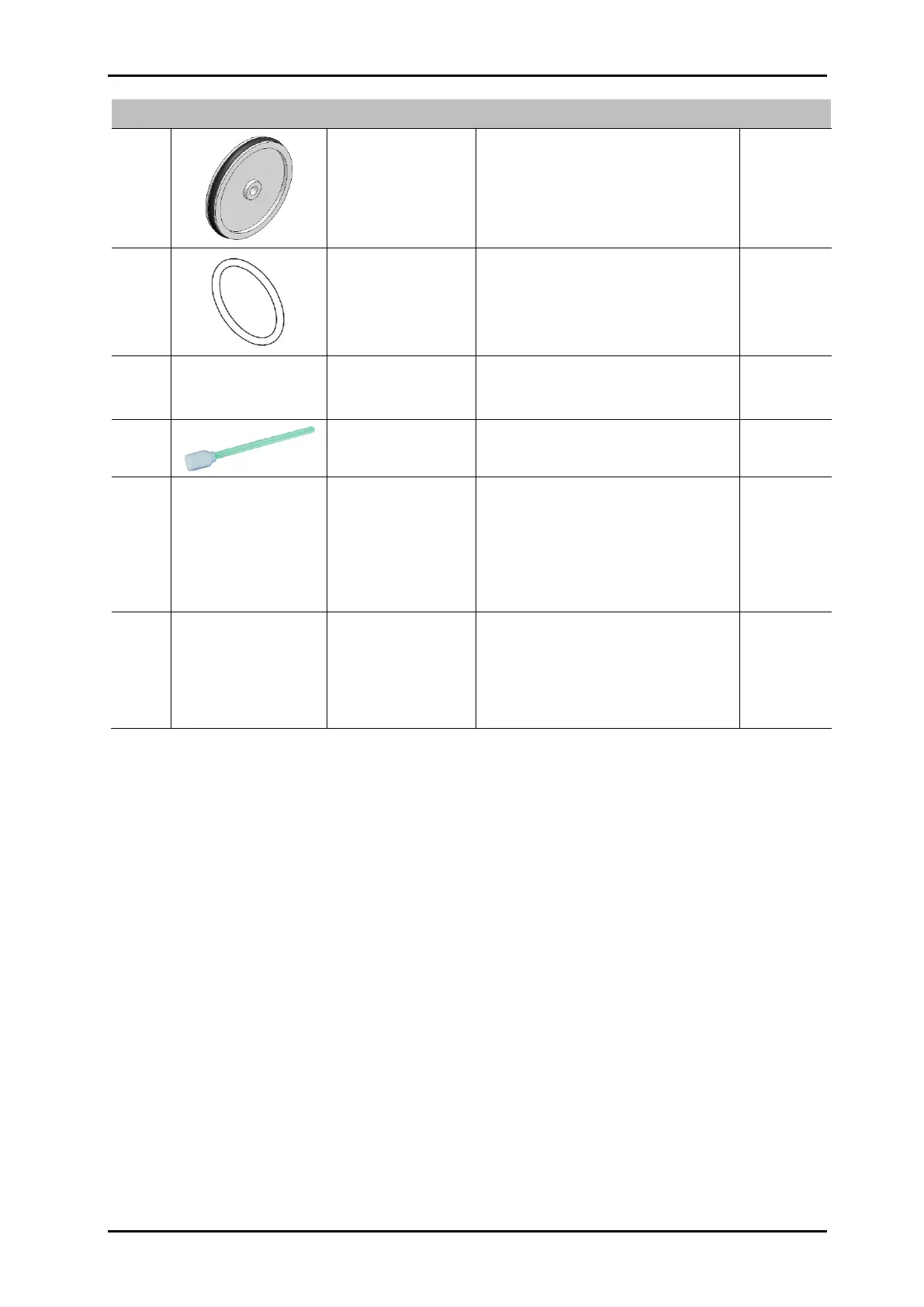

List of Accessories and Spare parts 40075165 Markoprint integra PP108
Page 89 of 104 GB
Pos.
Figure
Assembly
Description
Order no.
8
Measuring wheel
Measuring wheel with O-ring for
shaft encoder, optimized for 600 dpi
72900454
9
O-Ring
O-Ring for encoder measuring
wheel (600 dpi)
Dimensions: 55x5; NBR
72900455
10
Splitter cable
Splitter cable for the connection of
more than 2 options. Alarm, RS232,
Sensor, Encoder
72900545
11
Cleaning stick
Cleaning stick to clean the nozzle
plate
40007189
12
Y-cable 1x 15pol
Sub-D connector to
1x 15pol Sub-D
socket and 1x M12
socket B-coded for
HMI
15 pol Sub-D connector with
metallized housing and screws.
All 15 pins are interconnected and
1x 5pol M12 socket B-coded forHMI.
Cable length 25cm,
Cable Color Black.
40037993
13
Adapter cable15pol
Sub-D connector to
M12 socket B-
Coded for HMI
15 pol Sub-D connector with
metallized housing and screws.
to 5pol M12 socket B-coded for HMI
Cable length 25cm,
Cable Color Black.
40038349
