Basic setting
4-11Profimat 23 E

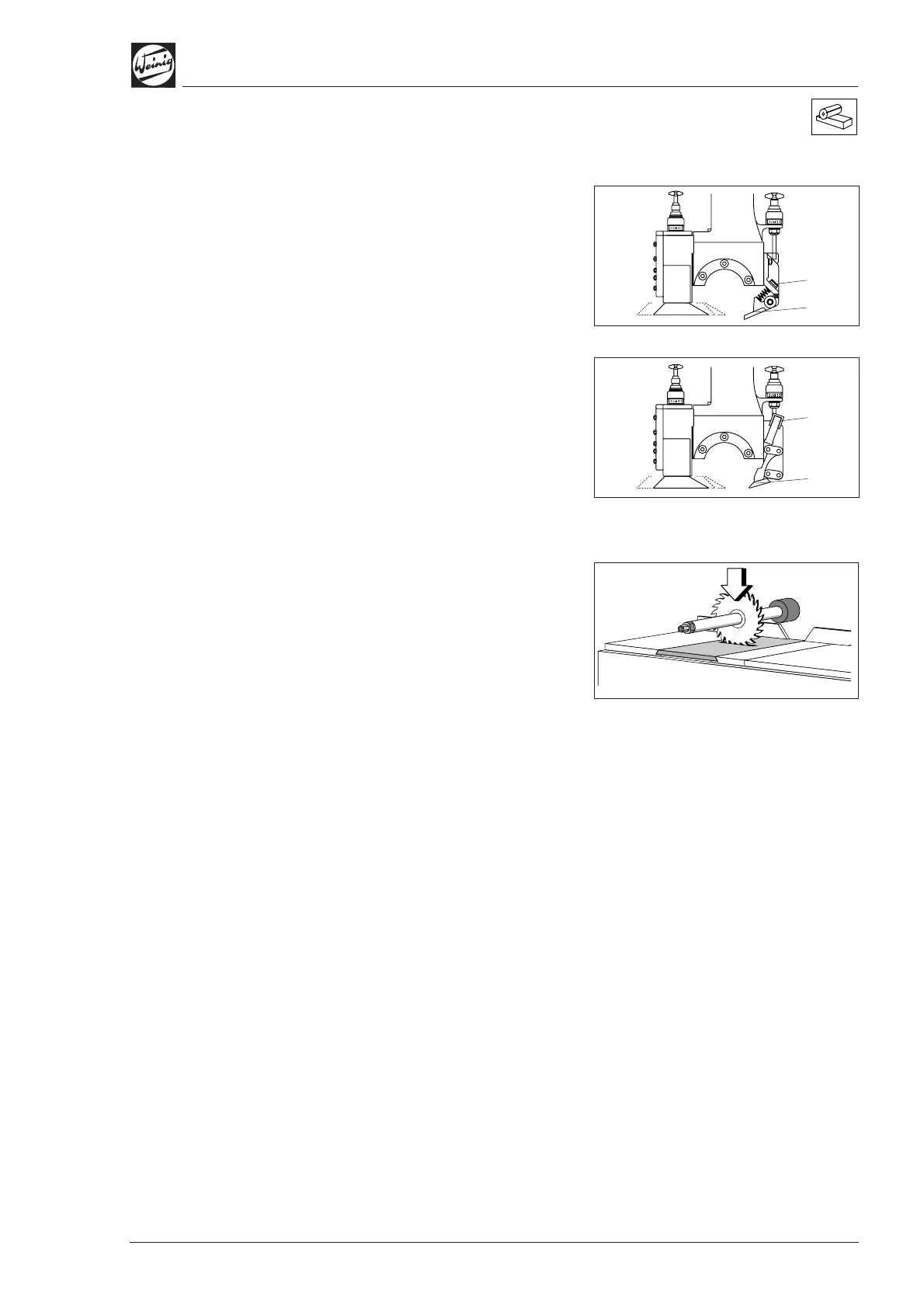

Pressure elements before top spindle
• Fit laminated fabric pressure plates (1) of
different lengths when changing the tool cutting
circle.
• The hold-down pressure of the adjacent pres-
sure plates (1) must be adjusted individually by
means of the adjusting screws (2).
Receding pressure element (optional)
• Fit steel pressure plates (1) of different lengths
when changing the tool cutting circle.
• The hold-down pressure of the adjacent pres-
sure plates (1) must be adjusted individually by
means of the adjusting screws (2).
Fitting a circular saw
The circular saw is fitted in the same way on the
bottom spindle (see page 4-13). Refer to the
technical data with regard to the max. saw blade
diameter.
• Fit a wooden insert and cut into it with the
circular saw.
(1)
(2)
(1)
(2)
