Machine options
6-9Profimat 23 E

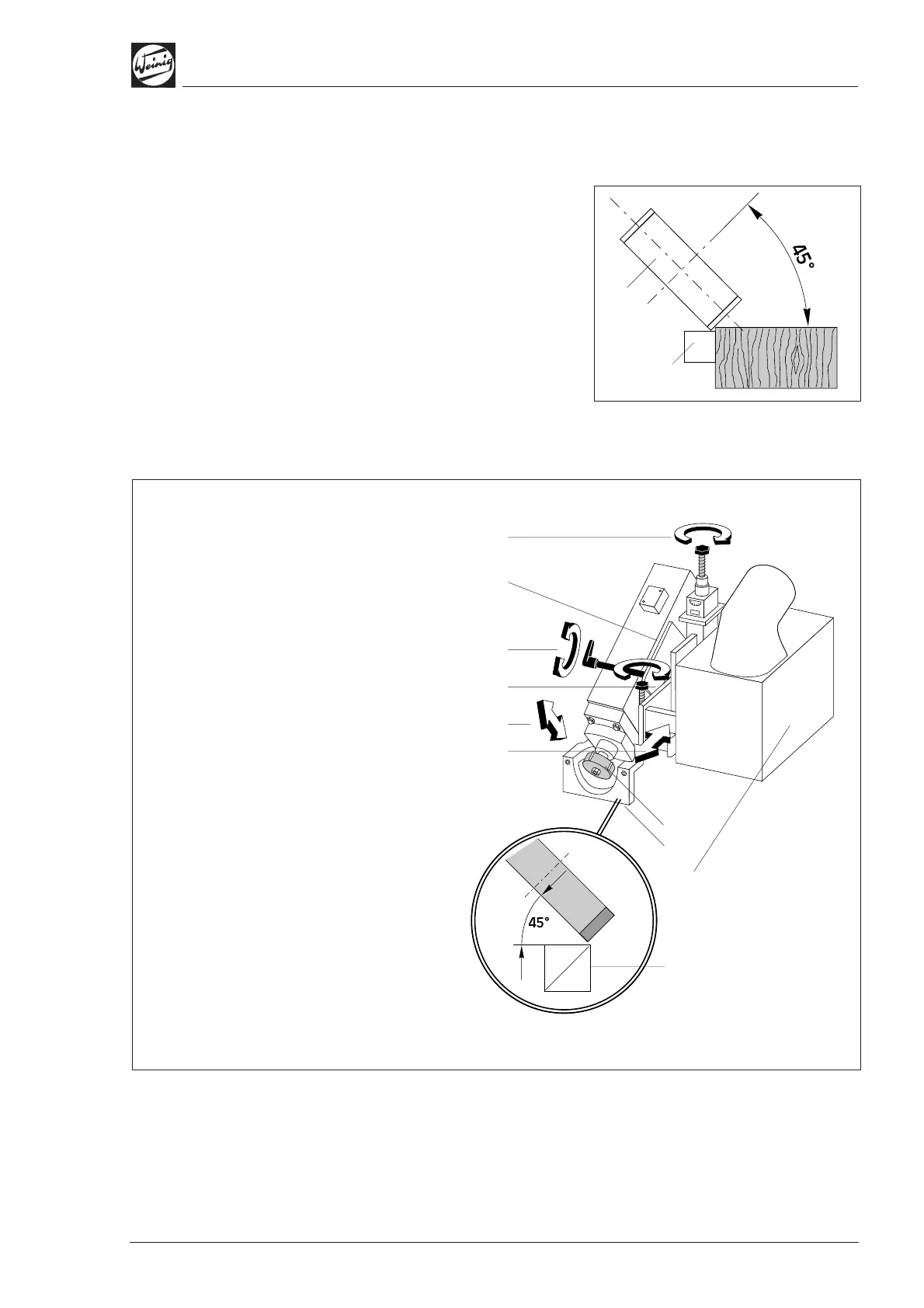

Function of the bevel unit
Bevel cutter (1) cuts the top left-hand bevel. In
the 45° position, the bevel unit can sense its way
along the timber via a sensor plate. Result:
unchanging width of bevel over the full length of
the workpiece, even if the timber is warped.
The bevel unit is adjusted up/down to the new
timber height via the top spindle; it is adjusted
forwards/backwards to the corresponding timber
width via the left-hand spindle.
Main parts and possible adjustments
Technical data:
Max. bevel width ................... 10 mm
Bevel cutter ............. Dia. 65 x 20 mm
Main parts:
1 Bevel cutter
2 Sensor plate
3 Scanning surface of the sensor
plate
4 Top spindle
Possible adjustments
5 Pressure element after top spindle
6 Clamp for adjustment (7) and for
swivelling right out of the
working area
7 Adjustment of the bevel width
8 Bevel width
9 Width adjustment via Bowden
control, together with the left-
hand spindle
10 Scale for bevel size
(6)
(9)
(4)
(2)
(8)
(7)
(1)
(1)
(2)
(5)
(3)
(10)
