Machine options
6-10 Profimat 23 E

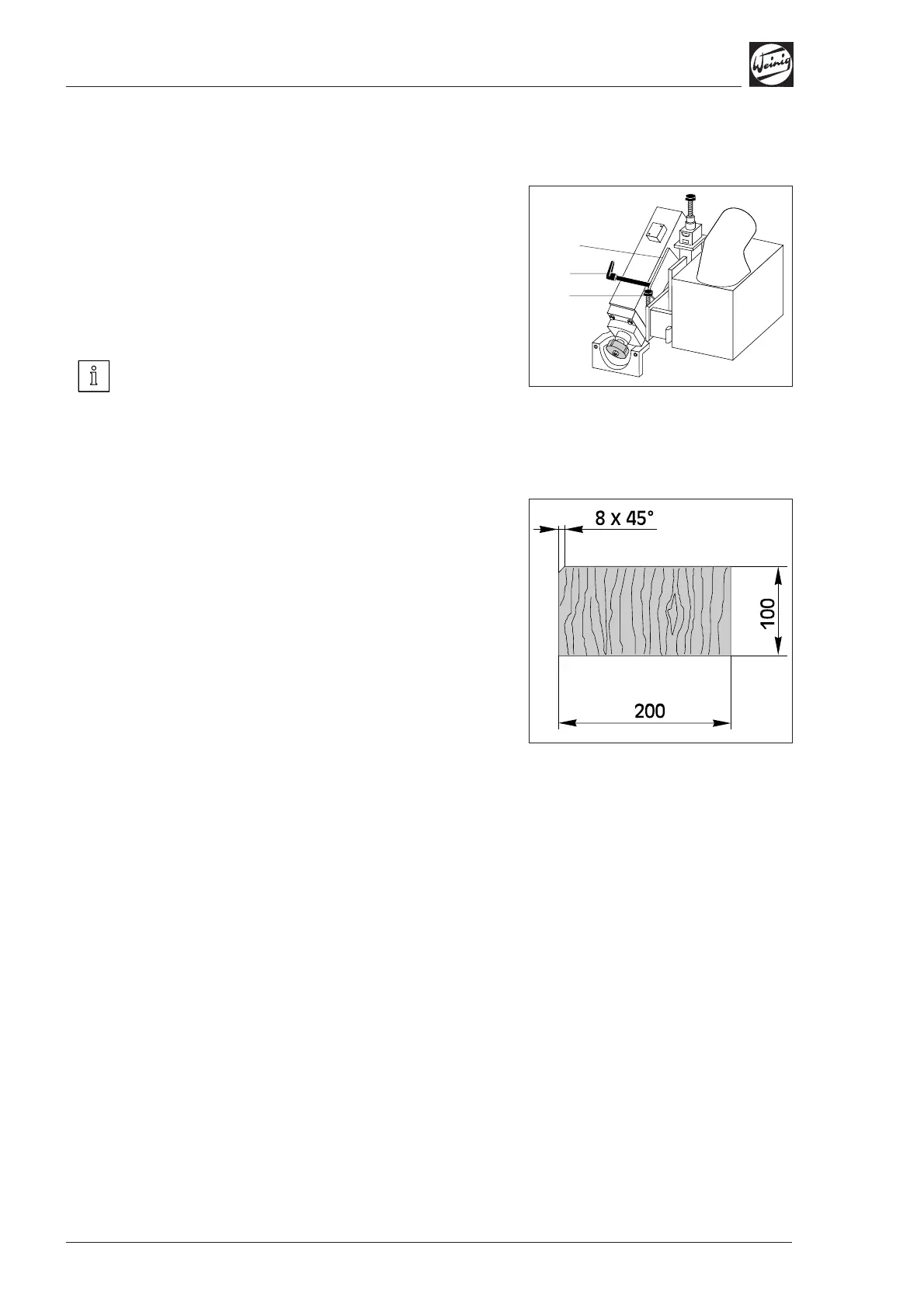

Basic setting, production
The bevel unit is set by the manufacturer. Only
the bevel unit need be moved into position for
bevelling.
For this purpose:
• Release clamp (6).
• Set bevel size in accordance with scale (10)
using adjustment (7).
Tools with a cutting circle diameter of 125 mm
should generally be used on the left-hand and top
spindles. The bevel unit cannot be used with
other cutting circles.
Example
To plane the following workpiece:
Workpiece size 200 mm x 100 mm, bevel
size 8 mm
Timber width
• Set timber width 200 mm on the numerical
indicators of the left-hand spindle
Timber height
• Set the top spindle to a workpiece height of
100 mm on the numerical indicator. The bevel
unit is automatically adjusted at the same time.
Bevel size
• Set a bevel size of 8 mm on the scale of the
bevel unit.
Profiling package
The profile guide after the top spindle can only be
used when the bevel unit has been moved out of
the working area.
(10)
(7)
(6)
