Machine options
6-11Profimat 23 E
120
220
30
20

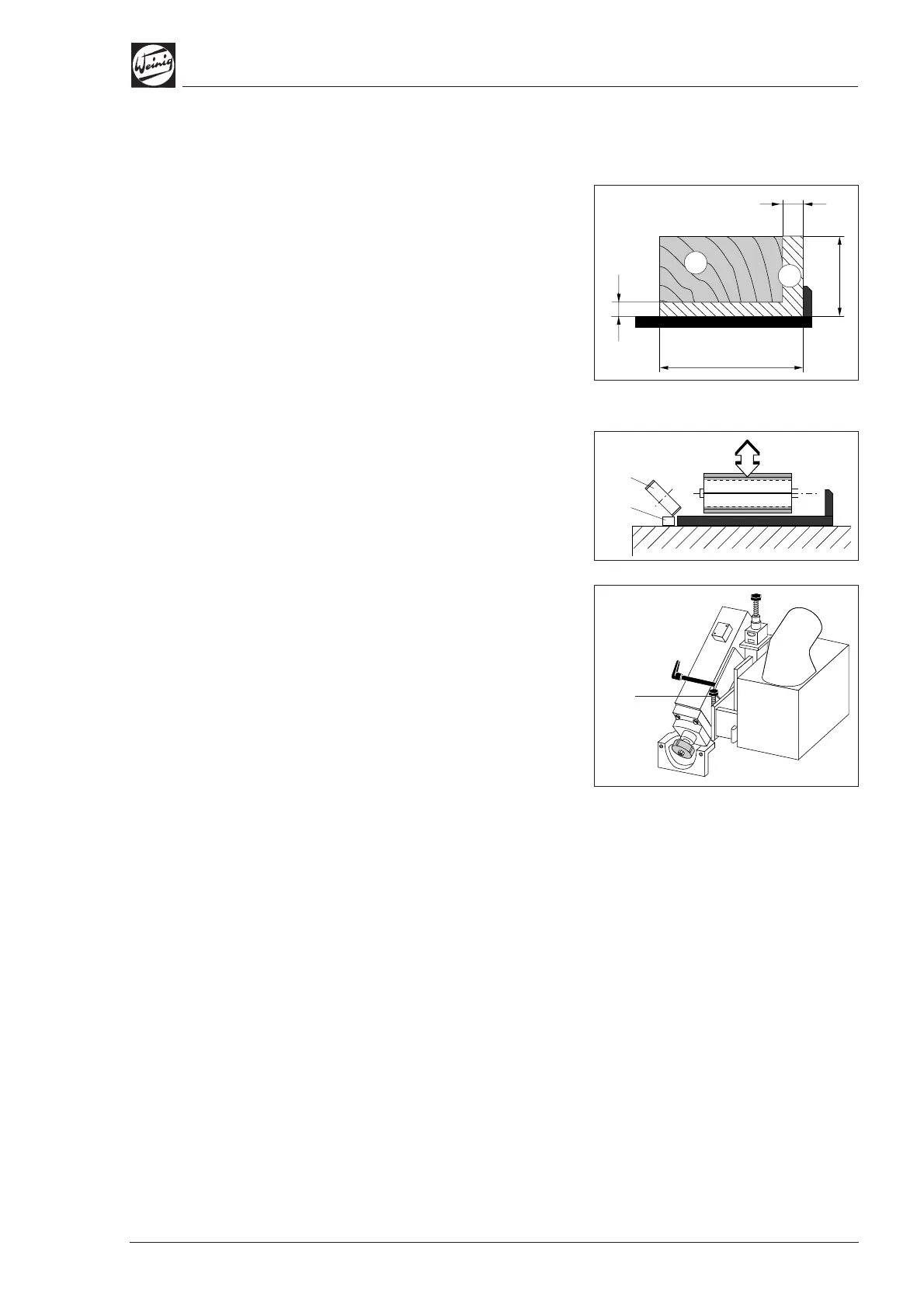

Working area for 45° bevels
45° bevels can only be produced for workpiece
sizes within area A.
45° bevels cannot be produced for workpieces
whose top left-hand corner is located in area B.
Example:
– Bevel size 4 mm – minimum timber thickness
24 mm
– Bevel size 10 mm – minimum timber
thickness 30 mm
Timber heights < 20 mm (0.787")
In order to lower the top spindle to a timber
height < 20 mm (0.787"):
• Move bevel cutter (1) out completely so that
sensor plate (2) can move past the table plate.
• Move bevel unit out of working area via
adjustment (7) in order to machine workpieces
below 20 mm without bevel.
A
B
(2)
(1)
(7)
