weinor PergoTex II User Manual

PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 22/66
2.a
Attaching the side channel in the wall
gap sealing profile

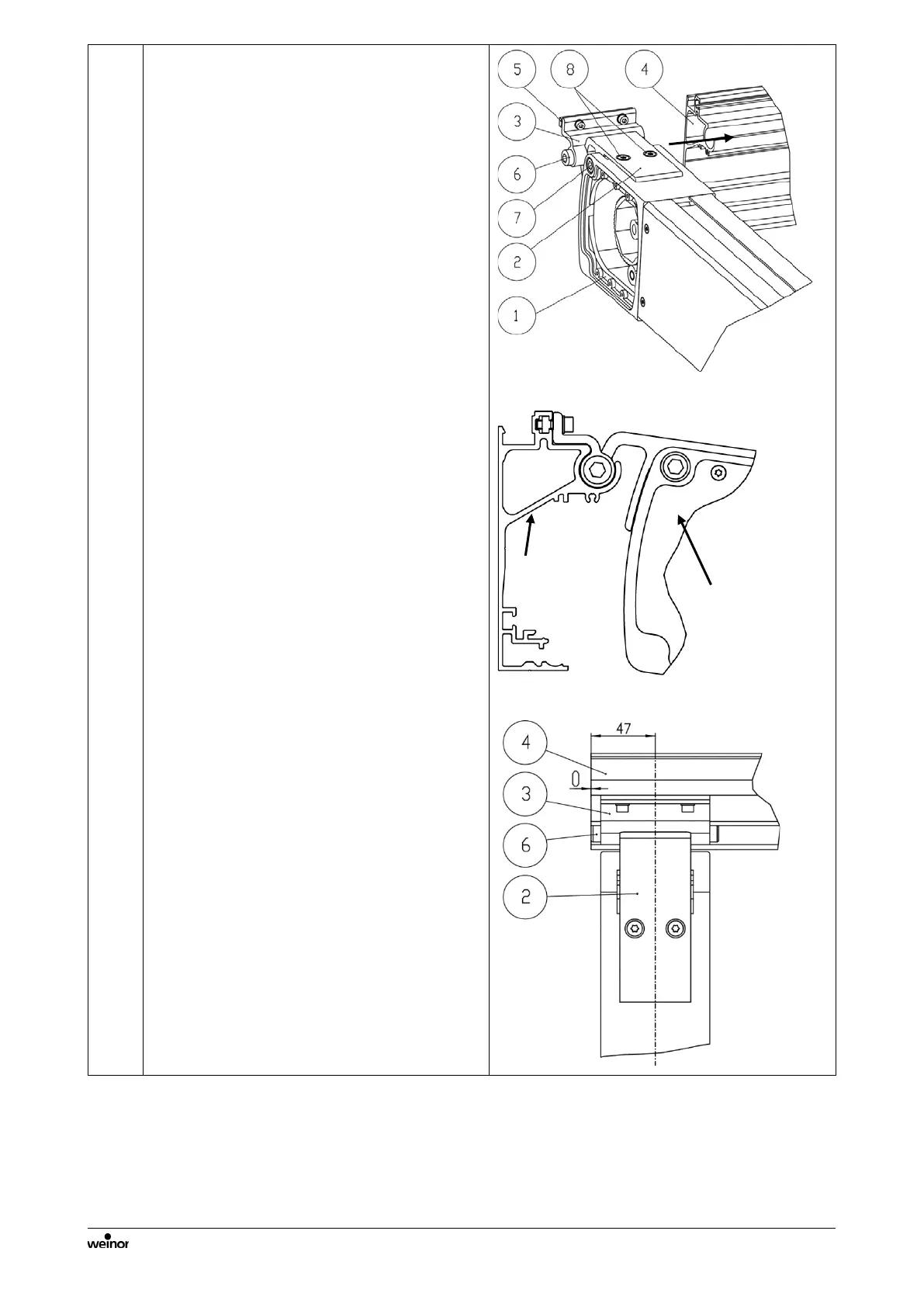

1. Position side channel (1) with the bolted
„"wall connection bracket" (2) and "wall
connection bracket upper part top
section" (3) on the wall gap sealing
profile (4) as seen in Detail A, and
push in.
Note:
The outside socket head cap screw
M10x30 (6) on the "wall connection
bracket" (2) must be flush with the outer
edge of the wall gap sealing profile (4) (see
Detail B).
Detail A
Wall gap sealing
profile
Side channel
Detail B
