WinGD X72-B - Page 460

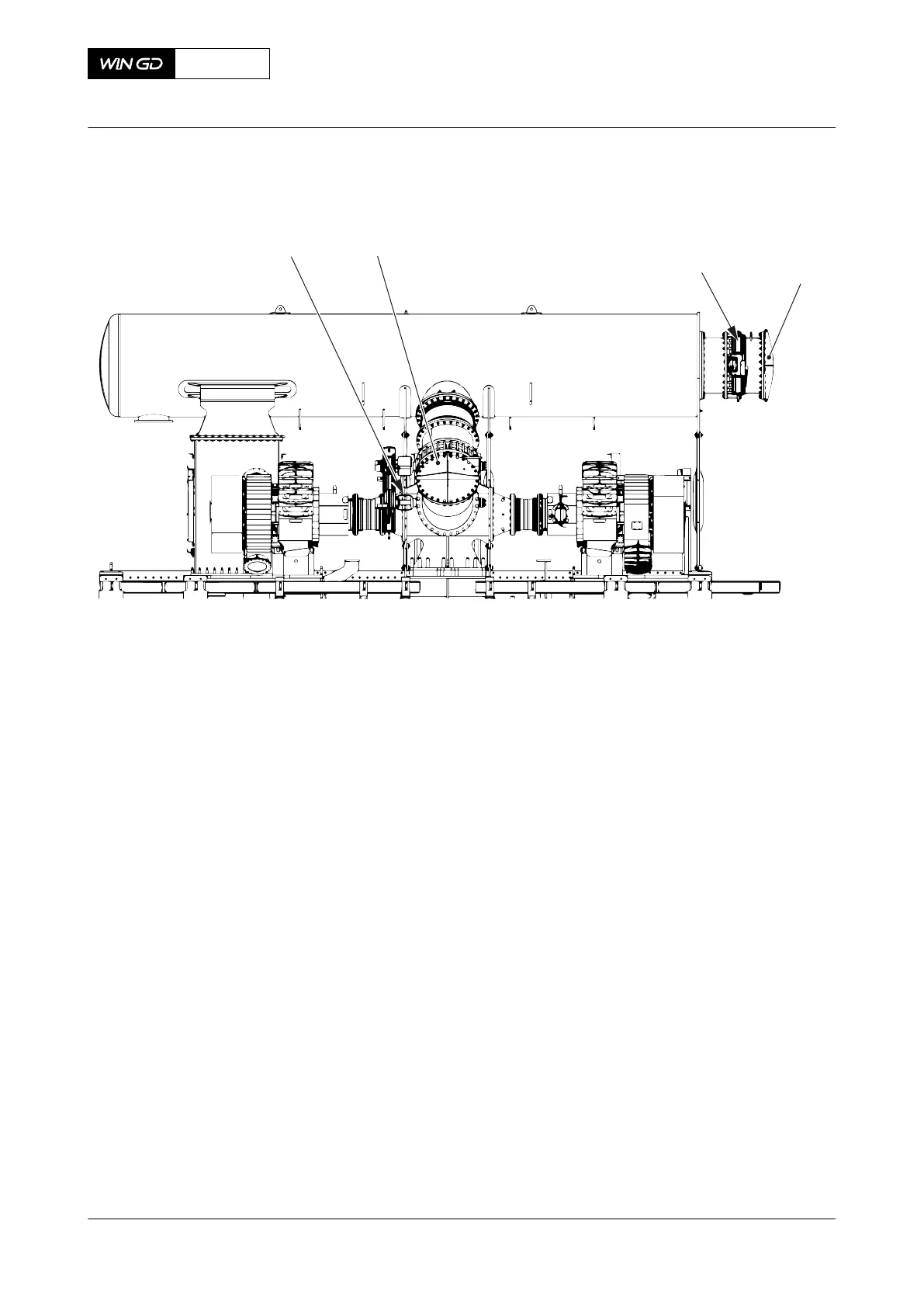

Fig 10-14 SCR system - covers (example for 2 turbocharger)
V1
001
001
V2
Legend
001 Cover V2 SCR outlet valve
V1 SCR inlet valve
1 Remove the cover (001, Figure 10-13 or Figure 10-14) from the flange downstream of the
valve V1.
2 Install the pipe to the SCR system to the flange.
3 Remove the cover (001) from the flange upstream of the valve V2.
4 Install the pipe to the SCR system to the flange.
CLOSE UP
• None
X72-B
AA00-9270-00AAA-520C-A
Operation Manual Connect the HP SCR system after isolation
Winterthur Gas & Diesel Ltd.
- 460 - Issue 003 2021-12
