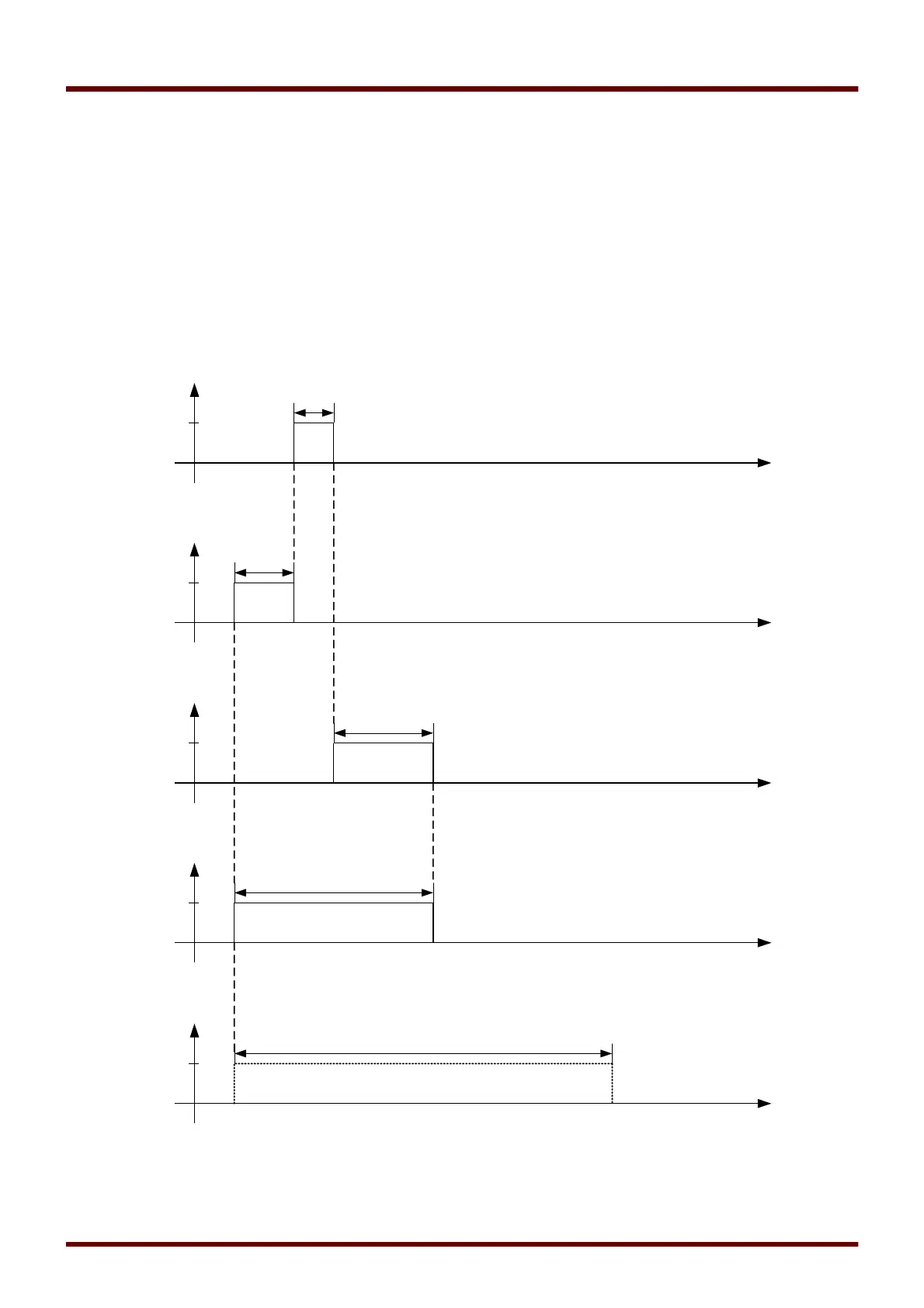

Example Disturbance Recorder Timing Chart I
295 MCDGV4 DOK-HB-MCDGV4-2E
Start 1
t
t
0
1
0
1
300 ms
200 ms
Pre-trigger time
t
0
1
500 ms
Post-trigger time
t
0
1
1000 ms
t-rec
t-rec < Max file size
t
0
1
2000 ms
Max file size
Start 1 = Prot.Trip
Start 2 = -.-
Start 3 = -.-
Start 4 = -.-
Start 5 = -.-
Start 6 = -.-
Start 7 = -.-
Start 8 = -.-
Post-trigger time = 25%
Pre-trigger time = 15%
Max file size = 2s
Auto overwriting = active
