Installation and Connection
Slot X6: Voltage Measuring Card with Digital In- or Outputs

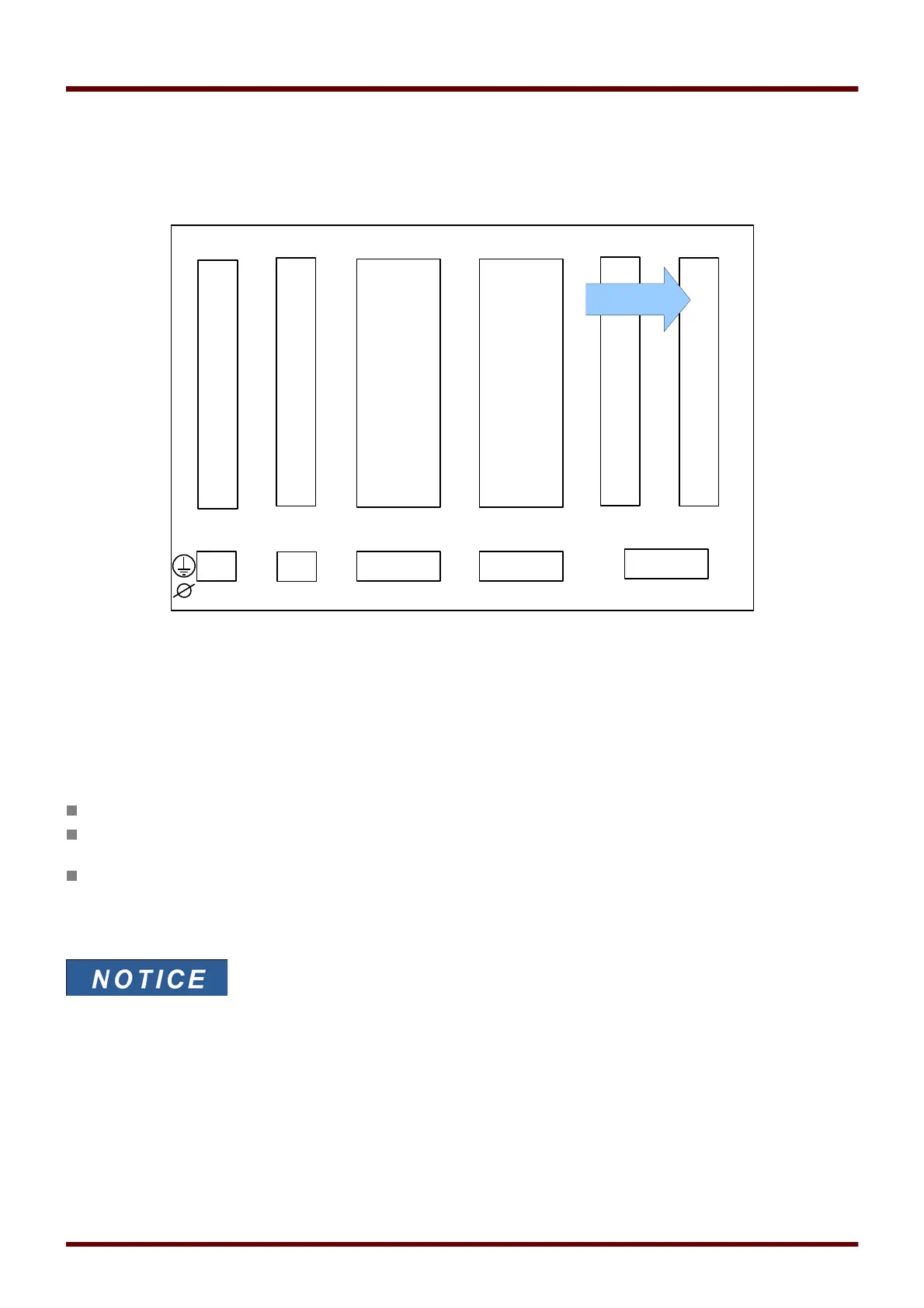

Rear side of the device (Slots)
The type of card in this slot is dependent on the ordered device type. The different variants have a different scope of
functions.
Available assembly groups in this slot:
(UB2+ X6): Voltage measuring assembly group
(U DI8 X6): Voltage measuring assembly group with 8 Digital Inputs.
The Digital Inputs group is in principle identical with the one on Slot X1.
(U K4 X6): Voltage measuring assembly group with 4 additional Relay Outputs (normally open).
The Relay Output Card is in principle identical with the one on Slot X2.
The available combinations can be gathered from the ordering code.
