Input, Output and LED Settings
Configuration of the Analog Outputs
Available Elements:
AnOut[1] ,AnOut[2]
The Analog Outputs can be programmed to output for three different ranges of either »
0- 20mA«
, »
4- 20 mA«
, or
»
0-10 Volts«
.
These outputs can be configured by the User to represent the status of User programmed parameters that are
available from the relay. The User will find the configuration menu for this feature under the [Device Para/ Analog
Outputs] menu option. Here the User can define to which parameter the output will correlate.

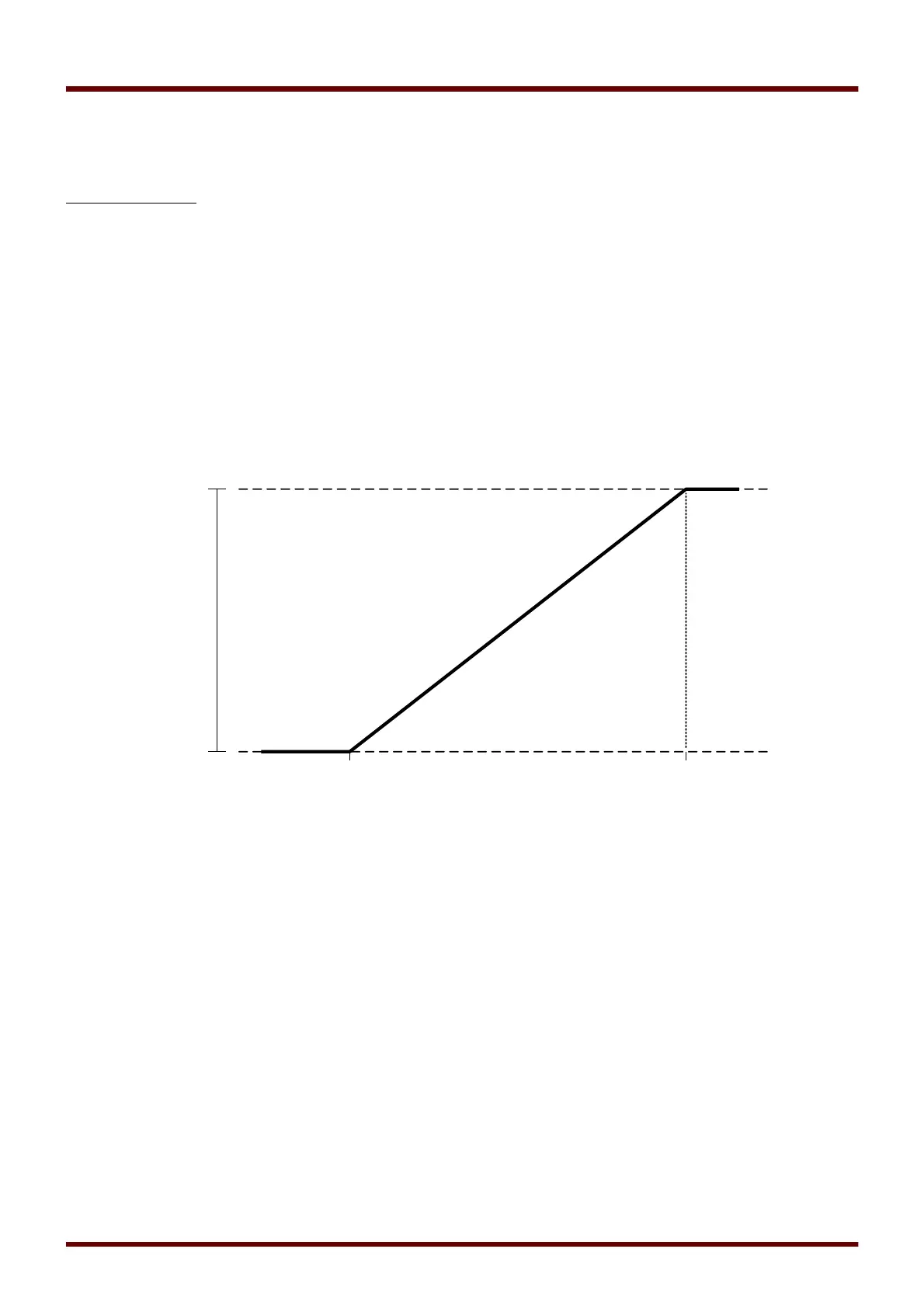

Once the assignment has been made, the User can select the expected range of the parameter that will correlate to
the analog output. The User will be required to enter a »
Range min«
, and »
Range max«
. The »
Range min«
will
determine the value at which value the transmission will start. Likewise, the »
Range max«
value will determine the
value that will result in the end value of the transmission.
182 MCDGV4 DOK-HB-MCDGV4-2E
