Switchgear/Breaker – Manager
The exact name of the Switchgear is
defined in the Single Line file.
↓
536 MCDGV4 DOK-HB-MCDGV4-2E

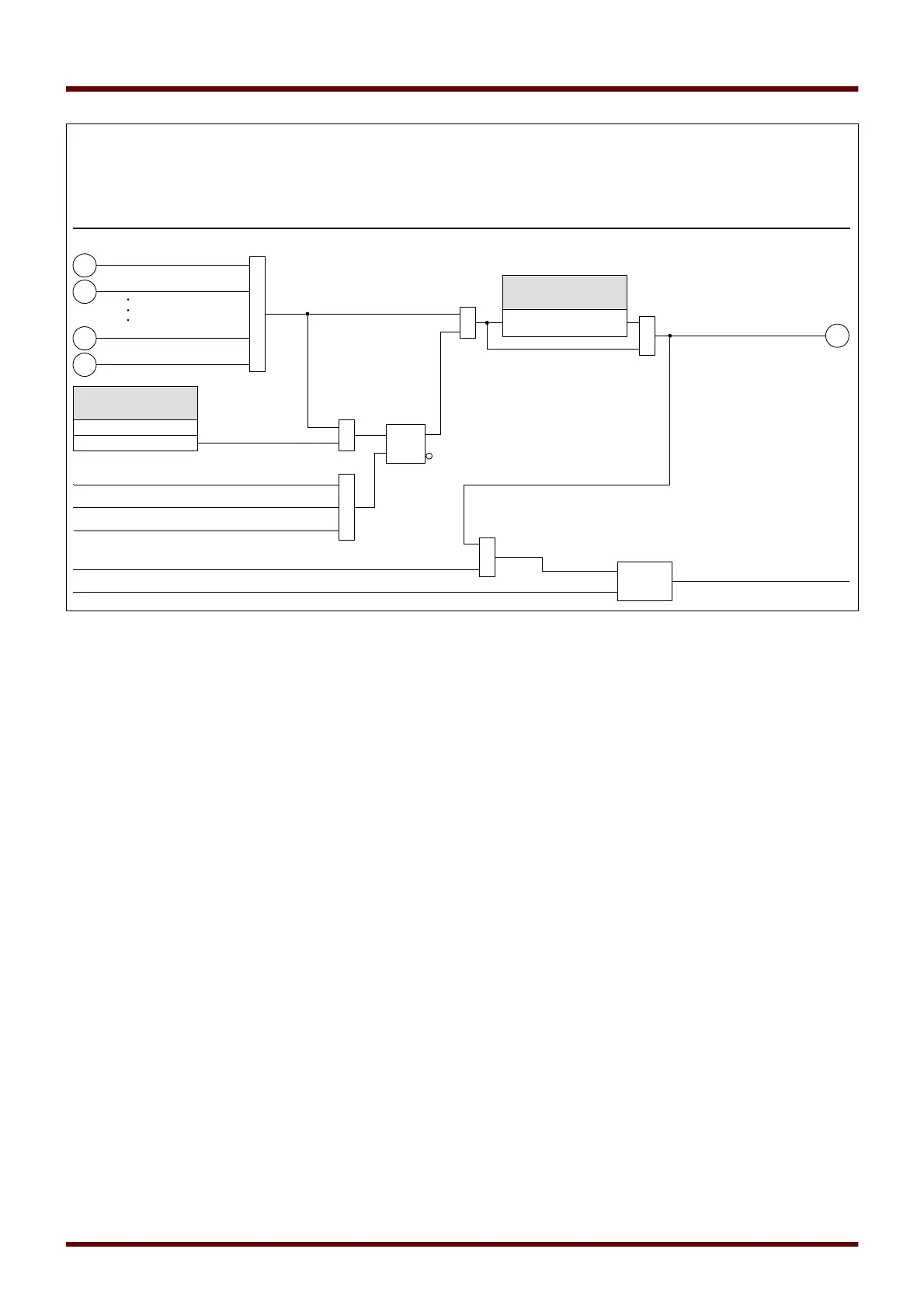

Switchgear _Y01
SG[x].Trip CB
15a
> +
> R
SG[x] .
Number of Operations
name.TripCmd
name =Module name of the assigned trip command
≥1
15a
name.TripCmd
15a
name.TripCmd
15a
name.TripCmd
active
SG[x] . Latched
inactive &
S 1
R 1
≥1
Acknowledge (-HMI)
Acknowledge (1..n, Assignment List)
Acknowledge TripCmd (Scada)
(Manual Switch Command)
≥1
≥1
1 _∏_
t
SG[x] . t-TripCmd
≥1
11
SG[x] . Trip CB
SG.Res TripCmd Cr
◄
