Woodward HighPROTEC - Page 78

Installation and Connection
78 MCDGV4 DOK-HB-MCDGV4-2E
L1 L2 L3
VL12
VL23
VL31
VL1
VL2
VL3
L1
L3
L2
VL12'
VL23'
VL31'
1
X?.
2
3
4
5
6
7
8

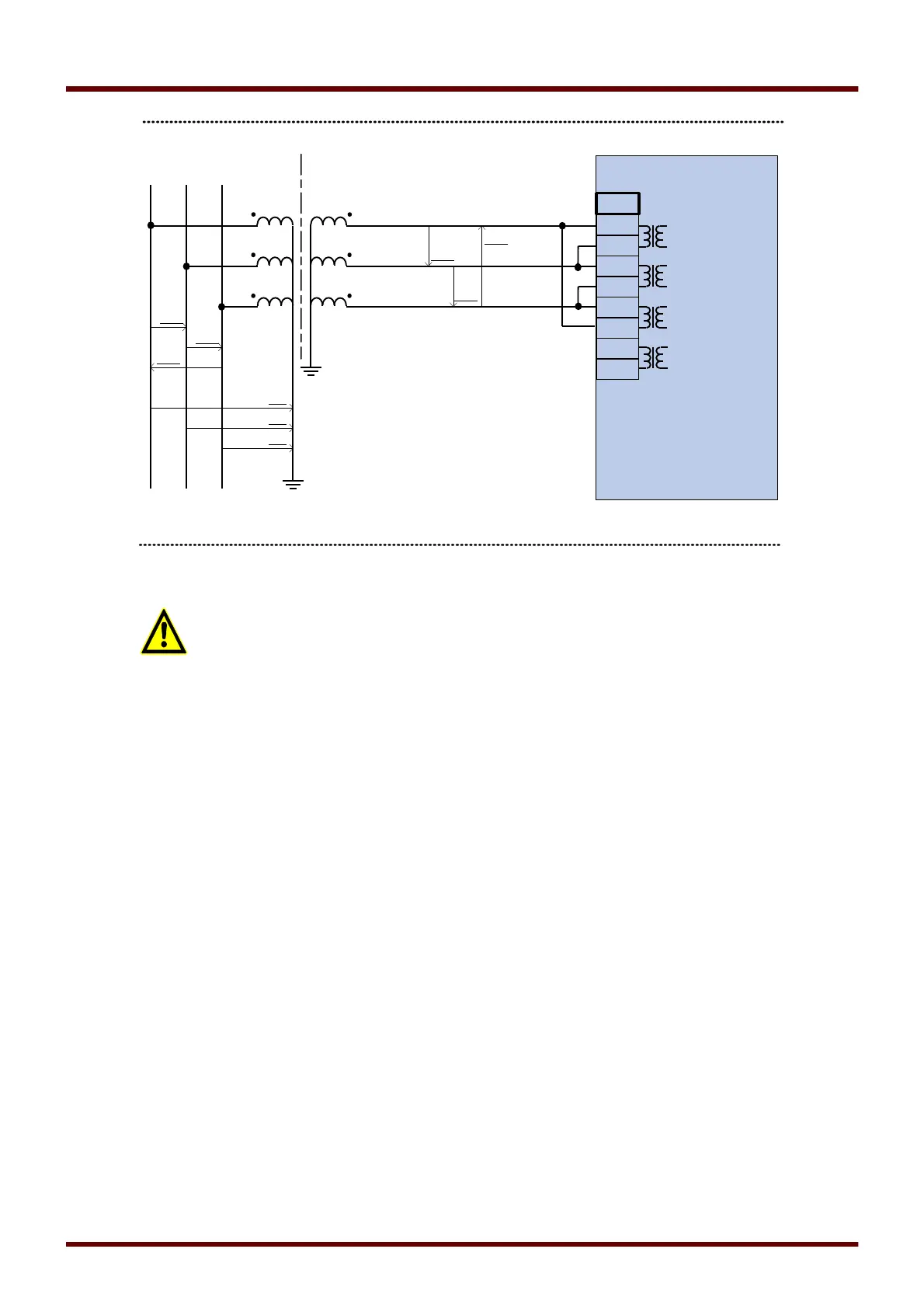

Three-phase voltage measurement - wiring of the measurement inputs : "delta-connection"
Notice!
Calculation of the residual voltage VG is not possible
VL3/
VL31
VL2/
VL23
VL1/
VL12
VX
