TRANSMISSION
L3301, L3901, L4701, WSM
3-S24

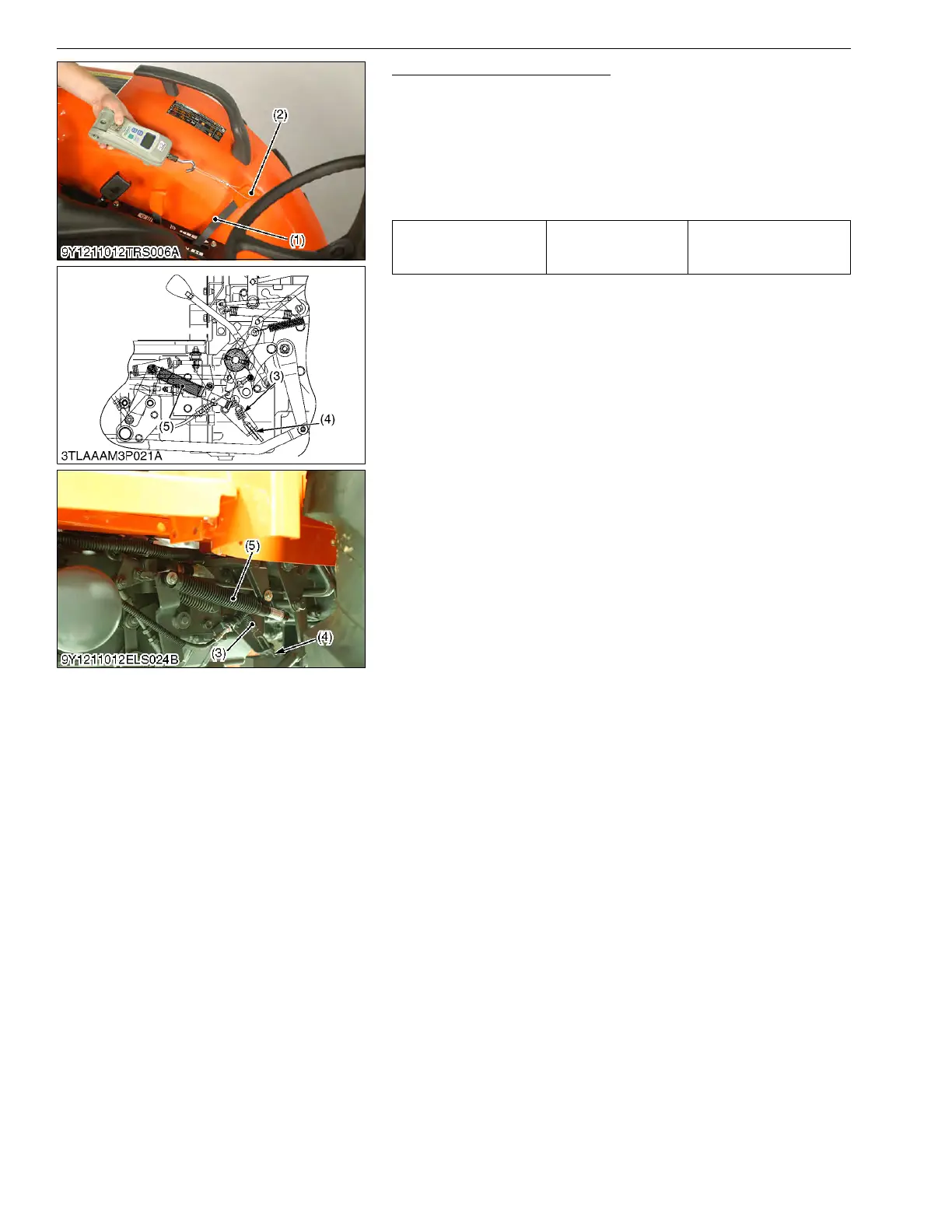

Cruise Lever Operating Force
1. Push the cruise control lever (1) into maximum tied position.
After that pull it 50 mm (2 in.) back.
2. Measure the force needed to move the cruise control lever back
into the maximum position at middle of the lever grip (2).
3. If the force is not within the factory specifications, loosen the
lock nut (4) and adjust the tension of cruise spring (3).
4. Retighten the lock nut (4) securely.
9Y1211012TRS0020US0
Cruise control lever
operating force
Factory specification
60 to 100 N
6.2 to 10.1 kgf
14 to 22.4 lbf
(1) Cruise Control Lever
(2) Lever Grip
(3) Cruise Spring
(4) Lock Nut
(5) Damper
